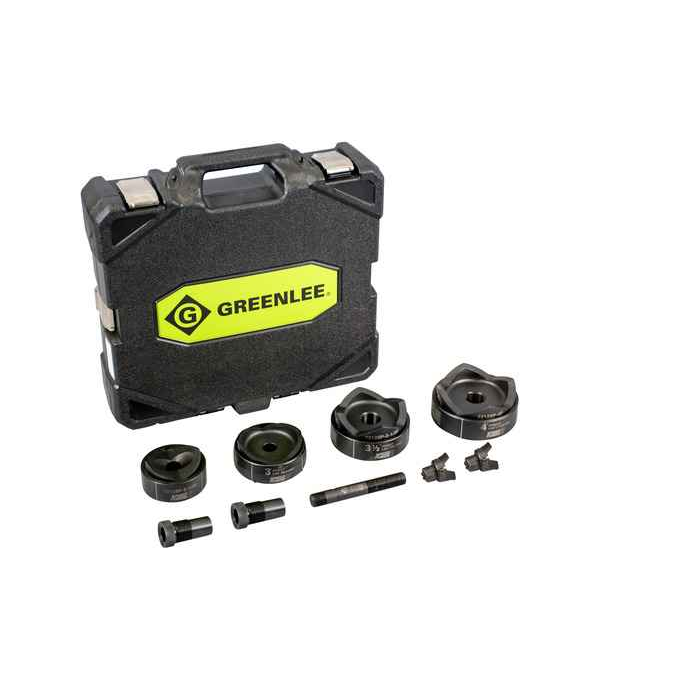

Greenlee Speed KO Conduit Knockout Punch Kit 2-1/2" to 4" with No-Thread Design

Greenlee Speed KO Conduit Knockout Punch Kit 2-1/2" to 4"

Professional Speed Punch System for Conduit Installation

The Greenlee Speed KO Kit delivers professional-grade knockout punching performance for conduit installations from 2-1/2" to 4" in mild steel, aluminum, fiberglass, and plastic materials. This comprehensive kit features innovative no-thread punch design that eliminates cross-threading issues while providing up to 3 times faster setup and disassembly compared to traditional systems. Built with carbon steel construction and nickel-plated finish for durability, this kit includes all essential components in a convenient plastic storage case.

Professional Features & Benefits

• No-Thread Punch Design: Eliminates cross-threading problems and reduces setup time for consistent, reliable operation on every job.
• 3X Faster Performance: Advanced Speed Punch technology significantly reduces setup and disassembly time, increasing productivity and reducing labor costs.
• Complete Size Range: Includes 2-1/2", 3", 3-1/2", and 4" punches and dies covering standard U.S. conduit sizes for versatile applications.
• Multi-Material Capability: Designed for punching holes in mild steel up to 10 gauge, plus aluminum, fiberglass, and plastic materials.
• Carbon Steel Construction: Punches and dies feature carbon steel with nickel plating for enhanced durability and corrosion resistance.
• Professional Storage: Includes plastic storage case for organized tool management and protection during transport.
• Hydraulic Compatibility: Recommended for use with Greenlee 746 Hydraulic Ram and 767 Pump for optimal performance.

Technical Specifications

• Application: For punching conduit sized holes in mild steel, aluminum, fiberglass, and plastic.
• Capacity Mild Steel: Max: 10 gauge (3.0 mm).
• Draw Stud: 7212SP12 (3/4'' x 5.6'')
• Driver: Recommended Greenlee Punch Driver: 746 Hydraulic Ram & 767 Pump.
• Includes: One each size (Punch & Die): 2-1/2'', 3'', 3-1/2'' and 4'' U.S. conduit size, One 3/4'' Speed Lock,
• Minimum Pilot Hole: 2-1/2'' - 3'''' Punch: 7/8'' (22.2 MM) PILOT HOLE. 3-1/2'' - 4'' PUNCH: 1-1/4'' (31.8 MM) PILOT HOL
• Package: Plastic Storage Case
• Product Diameter: Actual hole sizes: 2.914'' (74.0 MM) - 4.544'' (115.4 MM)
• Product Material: Punches & Dies: Carbon Steel (Nickel Plated). SPEED LOCK & Draw Stud: Carbon Steel (Black Oxide Coa
• Product Type: Knockout Punches
• Product Weight: 22.65 lbs. (10.30 kg)
• Replacement Part: 2-1/2'' Punch (7212SP-2-1/2P), 3'' Punch (7212SP-3P), 3-1/2'' Punch (7212SP-3-1/2P), 4'' Punch (721

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Installation
• Conduit System Installation
• Commercial Electrical Work
• Industrial Maintenance
• Electrical Contractor Services
• Facility Maintenance Operations
• Construction and Renovation Projects

Why Choose Greenlee Quality?

Greenlee delivers professional-grade tools engineered for demanding electrical applications. This Speed KO Kit features carbon steel construction with nickel plating for long-term durability and reliable performance. The innovative no-thread design and comprehensive size range make this kit an essential tool for professional electricians and contractors requiring efficient, accurate conduit hole punching capabilities.
