Thomas & Betts Non-Insulated Copper Splice Connector 16-14 AWG 600V
Professional electrical connection solution for reliable wire splicing applications
Thomas & Betts delivers professional-grade electrical connectivity with this non-insulated copper splice connector designed for 16-14 AWG wire applications. Rated for 600V operation with 150�C temperature capability, this connector features electro tin-plated copper construction for reliable performance in demanding electrical installations. UL and CSA certified for professional compliance and safety assurance.
Professional Features & Benefits
- 600V Voltage Rating: Provides reliable performance in standard electrical systems with professional voltage capacity for commercial and industrial applications.
- 16-14 AWG Wire Range: Accommodates common wire gauges for versatile connectivity in electrical installations and maintenance projects.
- 150�C Temperature Rating: Delivers dependable operation in high-temperature environments where standard connectors may fail.
- Electro Tin-Plated Copper Construction: Ensures excellent conductivity and corrosion resistance for long-term electrical performance.
- Non-Insulated Design: Allows for compact installations where space is limited and provides direct metal-to-metal contact for optimal conductivity.
- UL and CSA Certifications: Meets rigorous safety standards for professional electrical installations and code compliance.
- UL 94 V-0 Flammability Rating: Provides enhanced fire safety performance in critical electrical applications.
Technical Specifications

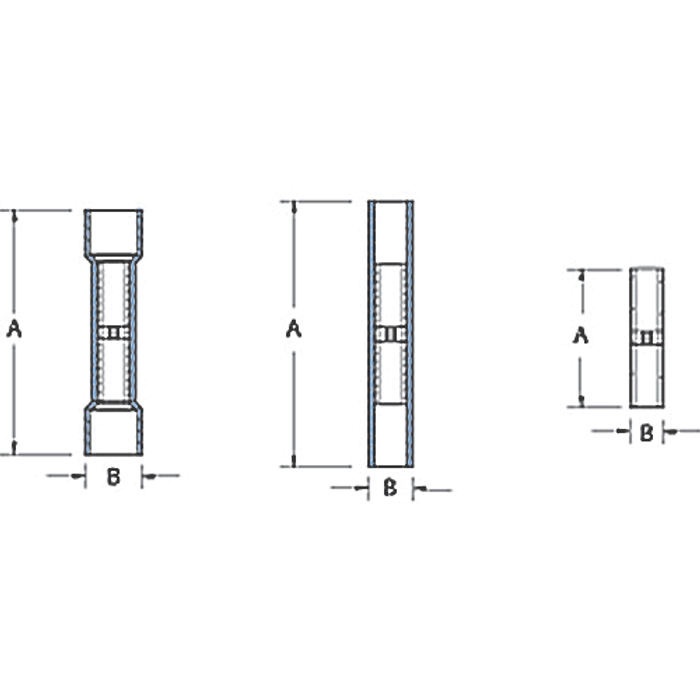

- A Inches: 0.62
- Alternate Package Qty: BB2
- Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
- B Inches: 0.16
- Color: Metallic
- Department: Electrical
- Flammability Rating: UL 94 V-0
- Inner Package: 100
- Insulation Type: Non-Insulated
- Material: Copper
- Order Multiple: 100
- Outer Package: 500
- Package Height: 9
- Package Length: 15.1
- Package Type: Standard
- Package Width: 9.4
- Product Finish: Electro Tin-Plated
- Product Group: Connectors
- Product Subgroup: Electrical Connectors
- Recommended Tool: ERG4002, ERG4005
- Rohs Compliance: Yes
- Stock Thickness: 0.03
- T B Sold In Uom: Each
- T B Weight Per Uom: 15 lbs. per 1000
- Temperature Rating: 150�C
- Terminal Series: B
- Voltage Rating: 600V
- Wire Range: 16-14
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Commercial electrical installations and maintenance
- Industrial control panel wiring
- Electrical equipment manufacturing
- Professional electrical repair and service
- Building automation systems
- Control circuit connections
- Electrical distribution panels
Why Choose Thomas & Betts Quality?
Thomas & Betts delivers proven reliability with UL and CSA certifications ensuring professional compliance and safety. The electro tin-plated copper construction and 150�C temperature rating provide dependable performance in demanding electrical environments, while RoHS compliance demonstrates commitment to environmental responsibility.
Manufacturer Resources
Product Specs
- A Inches :
- 0.62
- Alternate Package Qty:
- BB2
- Application Tools:
- WT110M, WT111M, WT112M, WT2000, ERG4002
- B Inches :
- 0.16
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 100
- Insulation Type:
- Non-Insulated
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 9
- Package Length:
- 15.1
- Package Type:
- Standard
- Package Width:
- 9.4
- Product Group:
- Connectors
- Recommended Tool:
- ERG4002, ERG4005
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 15 lbs. per 1000
- Temperature Rating:
- 150°C
- Terminal Series:
- B
- Voltage Rating:
- 600V
- Wire Range:
- 16-14
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Finish:
- Electro Tin-Plated
- Product Color:
- Metallic
- Product Material:
- Copper
