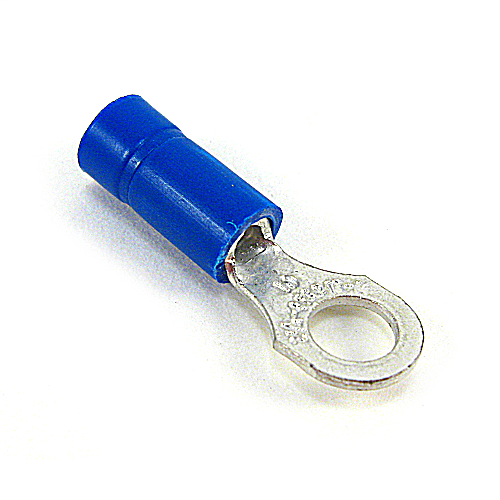

Thomas & Betts 16-14 AWG Insulated Ring Terminal with PVC Sleeve - Blue Copper Terminal

Thomas & Betts 16-14 AWG Insulated Ring Terminal with PVC Sleeve

Professional Electrical Connection Solution with Enhanced Wire Protection

Thomas & Betts delivers reliable electrical connectivity with this 16-14 AWG insulated ring terminal featuring a PVC insulation sleeve of extra length for superior protection and bending stress relief at the wire's flex point. The brazed seam barrel is serrated to obtain high pull-out value, ensuring secure connections in professional electrical applications. This blue copper terminal with electro tin-plated finish provides dependable performance for 600V applications up to 105�C.

Professional Features & Benefits

• 16-14 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• 600V Voltage Rating: Suitable for commercial and industrial electrical systems requiring higher voltage capacity
• 105�C Temperature Rating: Maintains reliable performance in elevated temperature environments
• Insulated Vinyl Construction: PVC sleeve provides electrical insulation and mechanical protection at connection points
• Brazed Seam Barrel: Serrated design ensures high pull-out strength for secure, long-lasting connections
• Electro Tin-Plated Finish: Copper construction with tin plating resists corrosion and enhances conductivity
• CSA and UL Certifications: Meets rigorous safety and performance standards for professional installations

Technical Specifications

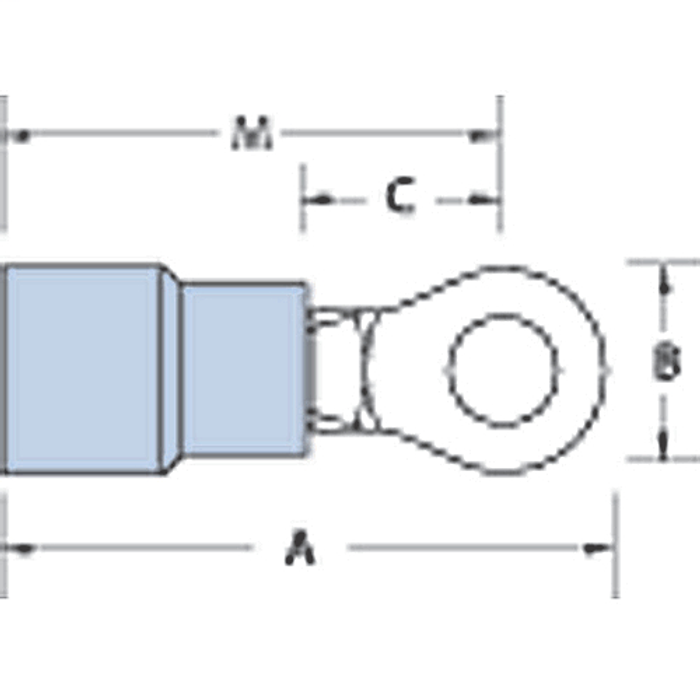

• A Inches: 1.14
• Alternate Package Qty: RB717
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.5
• C Inches: 0.38
• Color: Blue
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 100
• Insulation Type: Insulated Vinyl
• M Inches: 0.89
• Material: Copper
• Maximum Insulation Inches: 0.17
• Order Multiple: 100
• Outer Package: 500
• Package Height: 8.9
• Package Length: 15
• Package Type: Standard
• Package Width: 9.4
• Product Finish: Electro Tin-Plated
• Product Group: Hardware
• Product Subgroup: Rings
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: 4-Jan
• T B Sold In Uom: Each
• T B Weight Per Uom: 0.37 lbs. per 100
• Temperature Rating: 105�C
• Terminal Series: RB
• Voltage Rating: 600V
• Wire Range: 18-14

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Systems
• Industrial Control Panels
• Motor Control Centers
• Distribution Equipment
• Electrical Maintenance and Repair
• Professional Electrical Installations
• Equipment Grounding Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals deliver professional-grade reliability with CSA and UL certifications ensuring compliance with industry safety standards. The UL 94 V-0 flammability rating and RoHS compliance demonstrate commitment to safety and environmental responsibility, while the 600V voltage rating and 105�C temperature capability provide dependable performance in demanding electrical applications.
