Thomas & Betts RB Series Insulated Ring Terminal 18-14 AWG Blue Nylon with Electro Tin-Plated Copper

Thomas & Betts RB Series Insulated Ring Terminal 18-14 AWG Blue Nylon with Electro Tin-Plated Copper

Professional Electrical Connection Solution with High Dielectric Strength

Thomas & Betts delivers reliable electrical connectivity with this RB Series insulated ring terminal designed for 18-14 AWG wire applications. Featuring self-insulated high dielectric-strength nylon sleeves and an inner bronze insulation grip sleeve that lengthens the flexing radius of the conductor and eliminates conductor creep, this blue nylon terminal provides professional-grade performance with electro tin-plated copper construction and 600V voltage rating.

Professional Features & Benefits

• 18-14 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• 600V Voltage Rating: Supports high-voltage applications with reliable electrical performance and safety
• Insulated Nylon Construction: Self-insulated design with high dielectric-strength nylon sleeves prevents accidental contact and electrical faults
• Electro Tin-Plated Copper: Corrosion-resistant finish ensures long-term conductivity and connection integrity
• 105�C Temperature Rating: Withstands elevated operating temperatures for demanding electrical environments
• UL and CSA Certified: Meets rigorous safety standards for professional electrical installations
• Bronze Grip Sleeve: Inner bronze insulation grip sleeve lengthens flexing radius and eliminates conductor creep for enhanced durability

Technical Specifications

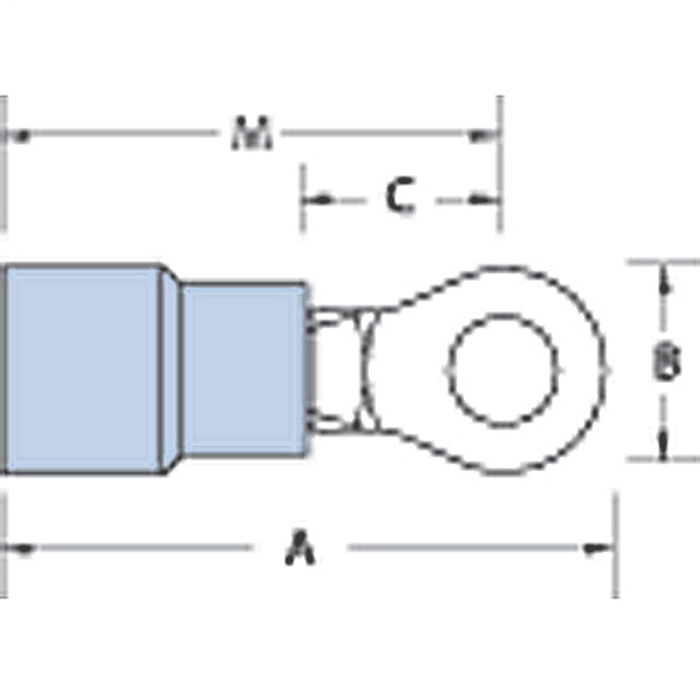

• A Inches: 1.08
• Alternate Package Qty: RB713
• Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
• B Inches: 0.47
• C Inches: 0.31
• Color: Blue
• Department: Electrical
• Flammability Rating: UL 94 V-2
• Inner Package: 100
• Insulation Type: Insulated Nylon
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.162
• Order Multiple: 100
• Outer Package: 500
• Package Height: 8.7
• Package Length: 15
• Package Type: Standard
• Package Width: 9.6
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: 4-Jan
• T B Sold In Uom: Each
• T B Weight Per Uom: 0.37 lbs. per 100
• Temperature Rating: 105�C
• Terminal Series: RB
• Voltage Rating: 600V
• Wire Range: 18-14

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Systems
• Commercial Building Wiring
• Industrial Control Panels
• Motor Control Centers
• Electrical Distribution Equipment
• Professional Electrical Installations
• Maintenance and Repair Operations

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven reliability with UL and CSA certifications, ensuring compliance with rigorous safety standards. The 105�C temperature rating and UL 94 V-2 flammability rating provide confidence in demanding electrical environments, while RoHS compliance demonstrates commitment to environmental responsibility and professional-grade electrical connectivity solutions.
