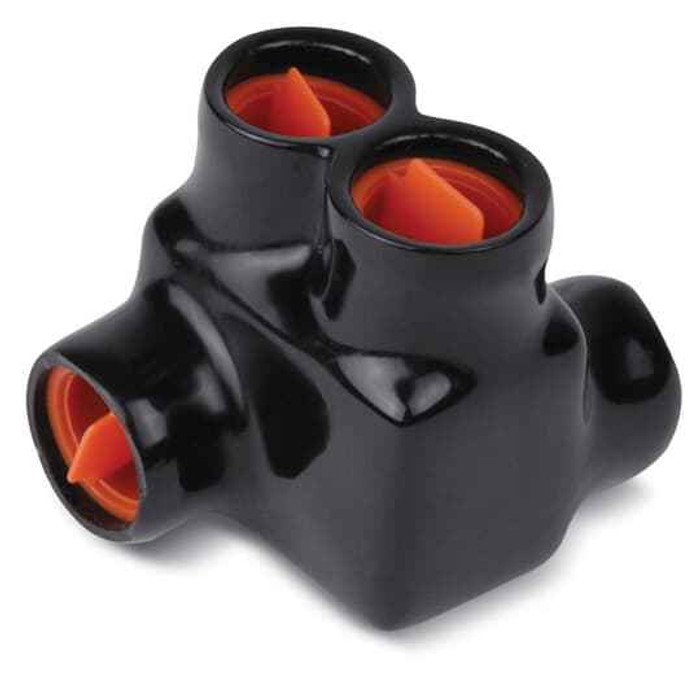

SPLICE OFFSET PVCINSUL 2PORT 250-10
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- AMT Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809, CSA 6591
- Type2:
- Electrical taps
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
- Product Material:
- Aluminum
Blackburn AMTT250 – Frequently Asked Questions
1) What conductor range does the Blackburn AMTT250 splice connector accept?
The AMTT250 is a two-port offset splice covering 250 kcmil down to 10 AWG, which is what the 250-10 in the designation refers to. Both ports work across that range, so you can splice a large feeder to a much smaller conductor in the same body.
2) Is the Blackburn AMTT250 rated for 600 volt circuits?
Yes, it carries a 600 V rating, so it is usable on standard commercial and industrial branch and feeder circuits at 600 V and below. It is listed under UL E9809 and CSA 6591.
3) Does the AMTT250 splice need separate taping or heat shrink after installation?
No. The AMTT250 ships with a PVC insulating cover over the connector body, so the splice is insulated as supplied and does not need to be built up with tape or shrink sleeve. That is the difference between this and a bare mechanical splice block.
4) Can I use the Blackburn AMTT250 on both copper and aluminum conductors?
The connector body is aluminum, which is the standard construction for dual-rated mechanical splices used on aluminum and copper building wire. Confirm the conductor marking stamped on the connector body against the conductors you are joining before you torque the setscrews.
5) What does the offset design on the AMTT250 do for me in a tight pull box?
The two ports are offset rather than in line, which staggers the conductor entries so two large cables do not have to come straight at each other. In a crowded gutter or pull box that lets you make the splice with less bending radius on a 250 kcmil conductor.
6) Is the Blackburn AMTT250 made in the USA for a Buy American spec job?
Country of origin on the AMTT250 is the United States, which is what a government or institutional buyer working to a domestic-preference spec needs on the submittal.
7) Is this a tap connector or a straight splice?
The AMTT250 is a splice: two ports joining conductor to conductor, in the mechanical tap and splice connector family Blackburn sells for wire and cable terminations. If you need to tap a run without cutting the through conductor, that is a different device and this is not it.
8) Is the Blackburn AMTT250 sold individually or in a box quantity?
It sells each, so one piece is one splice connector with its PVC cover. Count one per splice when you are taking off a job.
