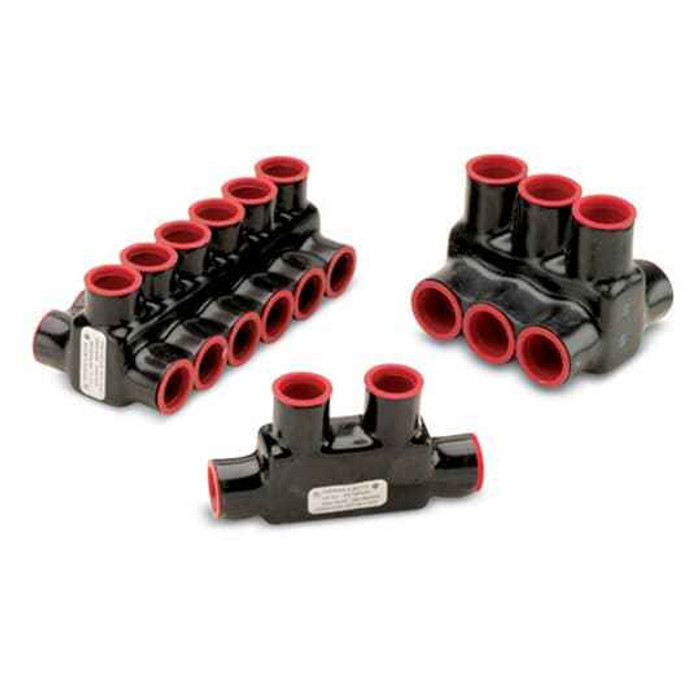

AL MULT BOTHSIDE CONN 2PORT 750-250
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- Multi-Tap/Port Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Electrical taps
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
- Product Material:
- Aluminum
Blackburn AMTD7502502 – Frequently Asked Questions
1) What conductor range does the Blackburn AMTD7502502 multi-tap connector accept?
The AMTD7502502 is a 750-250 connector, meaning each of its two ports takes conductors in the 750 kcmil down to 250 kcmil range. It is a both-side (dual-side) two-port body, so you land conductors on either side of the block. For anything smaller than 250 kcmil you need a different catalog number in the Blackburn multi-tap line.
2) Is the Blackburn AMTD7502502 rated for 600 volt service work?
Yes, it carries a 600 V rating and is UL listed under file E9809, which covers it for standard 600 volt commercial and industrial power distribution taps.
3) Can I use this aluminum tap connector on copper conductors too?
The AMTD7502502 body is aluminum, which is the standard AL9CU-style construction used for both aluminum and copper conductors on 600 V taps. Confirm the AL9CU marking stamped on the body for your inspector, and use the correct joint compound on aluminum runs.
4) How many conductors can I land on the Blackburn AMTD7502502?
Two ports, with conductor entry from both sides of the block. That makes it a straight two-conductor tap or splice, not a multi-port distribution block. If you need to feed three or more taps off one main, you want a higher port count in the same Blackburn multi-tap series.
5) Is an insulated cover included with this Blackburn two-port tap?
The AMTD7502502 is supplied as the connector body only. Insulation is handled separately, either with a matching Blackburn cover or with tape and insulating putty per your local practice, since the 600 V rating applies to the connector itself.
6) Does the AMTD7502502 come as a single piece or in a pack?
It is sold each, one connector per unit, so order quantity to match the number of taps in the panel or pull box. The body is black aluminum and made in the United States.
