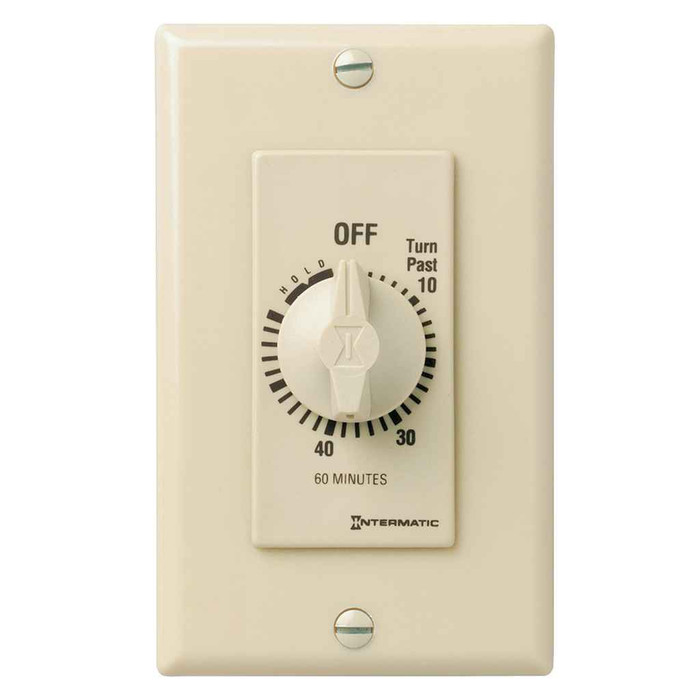

Intermatic FD60MH Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 60 Minute Max, With Hold, Ivory

Intermatic FD60MH Spring Wound Countdown Timer 125-277V 60-Minute Decorator Style with Hold

(No reviews yet) Write a Review

Model: FD60MH
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$117.43
$61.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic FD60MH Spring Wound Countdown Timer 125-277V 60-Minute Decorator Style with Hold

Professional Energy Management & Load Control Solution

The Intermatic FD60MH Spring Wound Countdown Timer delivers reliable automatic load control with 125-277V compatibility and 60-minute timing capacity. This decorator style timer features SPST switching with hold function, requiring no electricity to operate while providing versatile control for incandescent, fluorescent, CFL, and LED lighting applications.

Professional Features & Benefits

  • 125-277V Wide Voltage Range: Compatible with both residential and commercial electrical systems for versatile installation flexibility.
  • 60-Minute Timer with Hold: Provides extended timing control with manual override capability for customized load management.
  • Spring Wound Operation: Requires no electricity to operate, ensuring reliable performance even during power fluctuations.
  • SPST Single-Pole Switching: Breaks circuit at end of timing cycle with no neutral connection required for simplified wiring.
  • Decorator Style Design: Replaces standard or decorator wall switches in single or multi-gang configurations with professional appearance.
  • Universal Load Compatibility: Works with incandescent, fluorescent, CFL, and LED lighting for comprehensive application coverage.
  • Teeter-Type Terminals: Time-saving front terminal connections enable quick and easy professional installation.

Technical Specifications

  • Applications: Air Movement & Ventilation;Indoor Lighting Control;Outdoor Lighting Control;Motor Control
  • Country Of Origin: Tunisia
  • Depth: 1.25 in
  • Input Voltage Rating Range S : 125-277 VAC, 50/60 Hz
  • Marketing Description: The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wa
  • Product Color: Ivory
  • Product Height: 4.125 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 1.75 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Indoor Lighting Control Systems
  • Outdoor Lighting Management
  • Air Movement & Ventilation Control
  • Motor Control Applications
  • Commercial Facility Load Management
  • Residential Energy Conservation
  • Multi-Unit Property Automation

Why Choose Intermatic Quality?

Intermatic delivers proven reliability with this 1-year limited warranty countdown timer, featuring durable construction and professional-grade performance. The ivory decorator style finish and universal load compatibility ensure long-lasting operation across diverse lighting and motor control applications.

Manufacturer Resources

Product Specs

Application:
Air Movement & Ventilation;Indoor Lighting Control;Outdoor Lighting Control;Motor Control
Country Of Origin:
Tunisia
Input Voltage Rating Range S :
125-277 VAC, 50/60 Hz
Marketing Description:
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wa
Product Color:
Ivory
Product Height:
4.125 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
1.75 in
Warranty Period:
1-Year limited
Product Depth:
1.25 in

Intermatic FD60MH – Frequently Asked Questions

1) Does the Intermatic FD60MH spring wound timer need a neutral wire?
No neutral needed. The FD60MH is an SPST single-pole device that simply breaks the circuit at the end of the timing cycle, so it wires like a standard single-pole switch on the hot leg. That makes it workable in older boxes where no neutral was pulled to the switch location.
2) Will the FD60MH fit in a multi-gang plate next to my regular light switches?
It is built as a decorator style device meant to drop into the opening a standard or decorator wall switch leaves behind, in single or multi-gang boxes. Device dimensions are 4.125 x 1.75 x 1.25 inches, so it takes a standard decorator (rectangular opening) plate. Color is ivory, so if the rest of the gang is white you will see the difference.
3) Can I run an exhaust fan off this countdown timer, or is it lighting only?
Both. Rated applications include air movement and ventilation, motor control, and indoor and outdoor lighting control, which is why it gets used on bathroom and warehouse exhaust fans as often as on lights. On the lighting side it handles incandescent, fluorescent, CFL and LED loads.
4) Will a spring wound timer like the FD60MH still run if the power goes out?
The timing mechanism is purely mechanical and spring driven, so it needs no electricity to run. You wind it by hand and it counts down regardless of what the supply is doing. The tradeoff versus an electronic timer is that there is no programming, no memory of schedules, and no digital display: you get one turn of the dial up to 60 minutes, plus a hold position for keeping the load on indefinitely.
5) What does the hold function on the FD60MH actually do?
Hold parks the load on with no countdown running. Turn the dial to the hold position and the circuit stays closed until someone moves it off hold, which is what you want for a storage room or mechanical space that needs light for an open-ended stretch. Move it back into the timed range and it counts down up to 60 minutes, then breaks the circuit on its own.
6) Is 60 minutes the right run time, or should I look at a different FD series timer?
The FD60MH tops out at 60 minutes per wind, which suits restrooms, stairwells, locker rooms, and bath fans. If your application is a short burst, a shorter maximum gives finer resolution across the dial; if you need several hours on one wind, this one will have you re-winding it. Pick the maximum closest to the longest single run the space actually needs.
7) How do the wire connections work on this Intermatic FD series timer?
It uses teeter-type terminals on the front of the device rather than pigtail leads, so you land the conductors straight onto the terminals from the front instead of splicing leads in the back of the box. On a retrofit of an existing switch that saves a wire nut connection per conductor and keeps box fill down.
8) What is the exact part number and country of origin for this Intermatic countdown timer?
Order it as Intermatic FD60MH. It is manufactured in Tunisia, which matters on jobs carrying country of origin documentation requirements.
