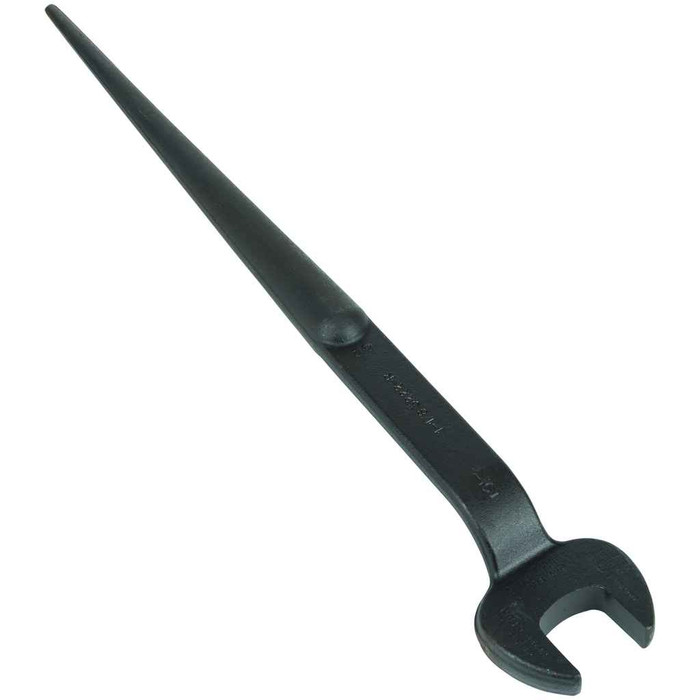

Spud Wrench, 1-1/8-Inch Nominal Opening for Regular Nut
3222 - spec sheet
Warnings
- Do NOT extend handle length.
- Do NOT push or hammer wrench.
- Always wear approved eye protection.
Features
- Made in USA
- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Nominal Opening - 1-1/8-Inch (28.6 mm)
- Extra-large hub area works on larger diameter holes better than other wrenches
- American Bridge design
- Extra heavy-duty head area gives maximum strength and durability
- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
3222 - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- 5416TFR, 5459T, 5460, 5461T
- Finish:
- Black Oxide with a Rust Preventative
- Head Width:
- 2.5" (6.4 cm)
- Item Depth:
- 16.6250 in
- Item Height:
- 1.0000 in
- Item Weight:
- 2.0000 lbs
- Item Width:
- 2.5000 in
- Material:
- Alloy Steel
- Nominal Opening:
- 1-1/8" (2.9 cm)
- Nut Type:
- U.S. Regular
- Offset Angle:
- 60°
- Overall Height:
- 1" (2.54 cm)
- Overall Length:
- 16.625" (42.2 cm)
- Overall Width:
- 2.5" (6.4 cm)
- Regular Nut Size:
- 3/4" (1.9 cm)
- Square Nut Size:
- 3/4" (1.9 cm)
- Taper Diameter:
- 1" to 1/4" (2.5 to 0.6 cm)
- Type:
- Spud Wrench
- Weight:
- 2 lb (0.9 kg)
