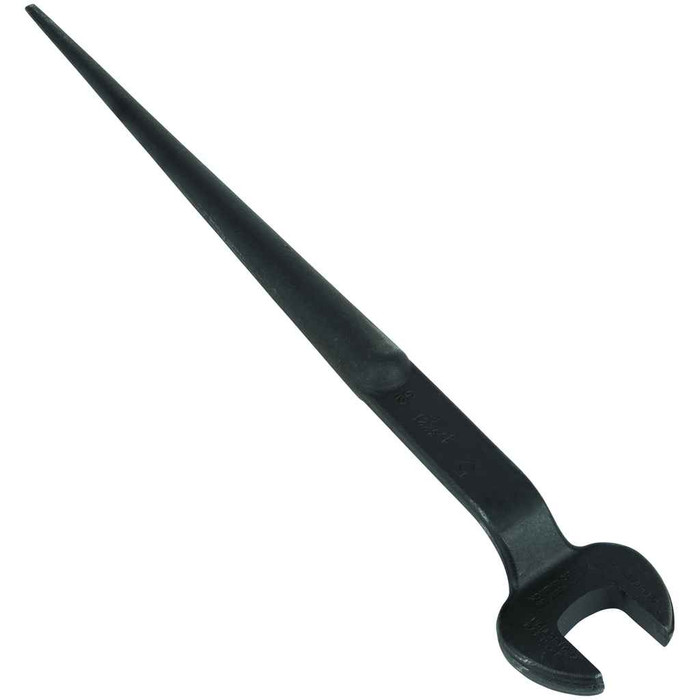

Spud Wrench, 1-Inch Nominal Opening for Regular Nut
3221 - spec sheet
Features
- Made in USA
- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Extra-large hub area works on larger diameter holes better than other wrenches
- American Bridge design
- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
- Extra heavy-duty head area gives maximum strength and durability
Warnings
- Do NOT push or hammer wrench.
- Always wear approved eye protection.
- Do NOT extend handle length.
3221 - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- 5459T, 5460, 5461T, 5416TFR
- Finish:
- Black Oxide with a Rust Preventative
- Head Width:
- 2.25" (5.7 cm)
- Item Depth:
- 14.7500 in
- Item Height:
- 1.0000 in
- Item Weight:
- 1.3000 lbs
- Item Width:
- 2.2500 in
- Material:
- Alloy Steel
- Nominal Opening:
- 1" (2.5 cm)
- Nut Type:
- U.S. Regular
- Offset Angle:
- 60°
- Overall Height:
- 1" (2.54 cm)
- Overall Length:
- 14.75" (37.5 cm)
- Overall Width:
- 2.25" (5.7 cm)
- Square Nut Size:
- 5/8" (1.6 cm)
- Taper Diameter:
- 7/8" to 3/16" (2.2 to 0.5 cm)
- Type:
- Spud Wrench
- Weight:
- 1.3 lb (0.6 kg)
