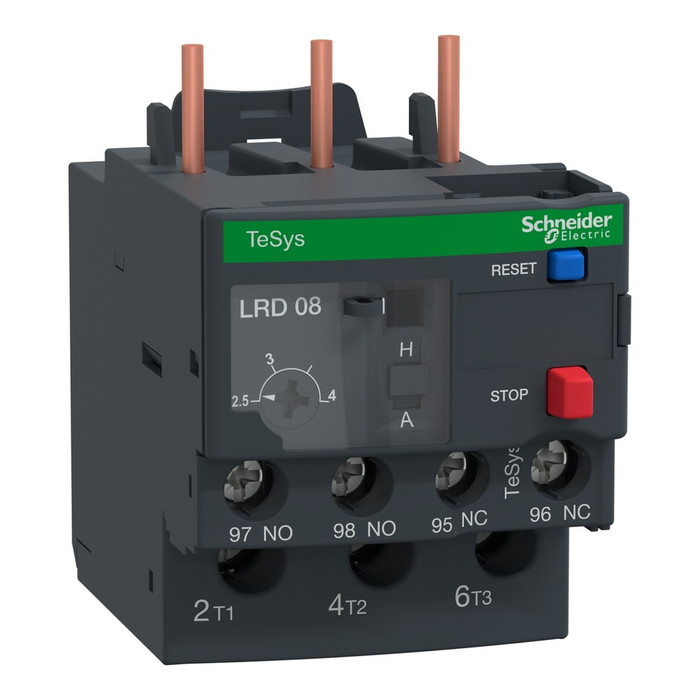

Square D LR3D TeSys Deca Class 10A Thermal Overload Relay

Square D LR3D TeSys Deca Class 10A Thermal Overload Relay

(No reviews yet) Write a Review

Model: LR3D08

In Stock (leaves warehouse same day if ordered before 3pm ET)

$153.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D LR3D TeSys Deca Class 10A Thermal Overload Relay

The Square D LR3D TeSys Deca Class 10A Thermal Overload Relay is a contactor-mounted motor protection device designed to pair directly under a compatible TeSys D-series contactor in commercial and industrial control panels. This relay is available across a Motor FLA range spanning 2.5...4A up to 7...10A, allowing panel builders to match thermal setting to the connected motor's full-load amperage. Every model in the family shares a Class 10A tripping curve per IEC 60947-4-1, a power circuit rated insulation voltage of 600V UL / 690V IEC 60947-4-1 / 600V CSA, a rated operational voltage of 690V AC (0...400 Hz), and an IP20 degree of protection conforming to IEC 60529. Built for unbalanced-load circuits and standard motor duty cycles, it delivers reliable, code-compliant overload protection for motors such as 1.1-1.5kW @ 400V applications.

Key Features

  • Motor FLA Range: Available from 2.5...4A through 7...10A to match a range of TeSys D-compatible motor loads.
  • Thermal Overload Class: Class 10A tripping curve per IEC 60947-4-1 with a tripping threshold of 1.14 +/- 0.06 Ir, suited for standard motor duty cycles.
  • Rated Voltage: Power circuit rated insulation voltage of 600V UL / 690V IEC 60947-4-1 / 600V CSA, with a rated operational voltage of 690V AC, 0...400 Hz.
  • Contactor-Mounted Design: Mounts under the contactor, on a plate, or on rail with specific accessories for flexible panel layouts.
  • Control Type: Integrated red push-button stop and blue push-button reset for quick manual intervention.
  • Ingress Protection: IP20 degree of protection conforming to IEC 60529.
  • Ambient Temperature Range: Rated for operation from -20 to 60°C without derating, per IEC 60947-4-1.
  • Contactor Compatibility: Compatible with TeSys D contactors including LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, and LC1D38.
  • Terminals: Screw clamp control circuit terminals accepting 1-2.5 mm² flexible conductors without cable end, tightened to 1.7 N.m.

Certifications & Compliance

  • UL Listed to UL 60947-4-1 and UL 60947-5-1
  • CSA C22.2 No 60947-4-1 and No 60947-5-1
  • EN/IEC 60947-4-1 and EN/IEC 60947-5-1
  • RoHS EUR Compliant
  • Flame retardance V1 conforming to UL 94

Technical Specifications

  • Uimp Rated Impulse Withstand Voltage: 6 kV
  • Temperature Compensation: -20-60 °C
  • Warranty: 18 months
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes
  • ROHS Eur In Scope: Yes
  • Country of Origin: FRA

Typical Applications

  • Motor Control Centers and Starter Panels
  • Commercial and Industrial Machine Control
  • TeSys D Contactor-Based Motor Circuits
  • Pump, Fan, and Conveyor Motor Protection
  • Panel Retrofits and New Motor-Control Installations

Why Square D?

Square D LR3D TeSys Deca overload relays combine UL, CSA, and IEC 60947-4-1/5-1 compliance with flame-retardant V1-rated construction for dependable operation in demanding control environments. Backed by an 18-month warranty and designed to pair directly with TeSys D contactors across the full 2.5...10A FLA range, they deliver code-compliant motor protection that panel builders and electrical contractors can install with confidence.

Manufacturer Resources

Product Specs

Toxic Heavy Metal Free:
Yes
Manufacturer:
Schneider Electric
Warranty:
18 months
Warranty Period:
18 months
Temperature Compensation:
-20-60 °C
Uimp Rated Impulse Withstand Voltage:
6 kV
Mercury Free:
Yes
Circularity Profile:
ENVEOLI0802006
ROHS Eur Full Compliance Status Id:
COMPLIANT
Packaging Without Single Use Plastic:
No
Sustainable Packaging:
No
ROHS Eur In Scope:
Yes
Local Data Status:
Publishable
Recycled Metal Content At Cr Level:
0 %
Carbon Footprint Kg Co2 Eq Total Life Cycle:
12.917073654692109
China Rohs Label:
1
Use Carbon Footprint:
11.6330046154452
Environmental Disclosure:
ENVPEP080206EN
Manufacturing Carbon Footprint:
1.02676146866194
Serviceability:
No
Rohs Eur Conformity Date:
627
With Recycled Cardboard:
Yes
WEEE Product Category:
5
Product Availability:
Stock - Normally stocked in distribution facility
ROHS Eur Status:
Compliant
Relationshiptype:
Compatible relationship
Network Frequency:
0...400 Hz
Total Lifecycle Carbon Footprint:
13 kg CO2 eq.
China Rohs In Scope:
No
Return Indicator:
Y
Take Back:
No
Returnability:
Yes
Carbon Footprint:
12.9170736546921
Installation Carbon Footprint:
1.63588981427764e-02
Compatibility Code:
LR3D
Reach Free Shvc:
Yes
Ambient Air Temperature For Storage:
-60-70 °C
Wd Status:
1 - GSC certified
Green Premium Status For Reporting:
Green Premium product
End Of Life Carbon Footprint:
0.216785193244214
Legacy Weee Scope:
In
Packaging Made With Recycled Cardboard:
Yes
Eoli Availability Display:
Yes
Product Type:
Overload Relay
Department:
Electrical
Product Group:
Motor Control & Automation
Series:
TeSys Deca
Voltage Rating:
690V
Amperage Rating:
2.5A - 10A
Listing:
UL Listed
Standards:
IEC 60947-4-1
Product Subgroup:
Overload Relays

Square D LR3D08 – Frequently Asked Questions

1) Will the Square D LR3D overload relay mount directly to my TeSys D contactor?
Yes. The LR3D TeSys Deca relay is built to mount directly under a TeSys D contactor, and the listed compatible contactors are the LC1D09, LC1D12, LC1D18, LC1D25, LC1D32 and LC1D38. If your panel layout won't allow under-contactor mounting, it can also be plate-mounted or rail-mounted with the appropriate accessories.
2) Which LR3D should I order for my motor's full load amps?
Two FLA ranges are offered: the LR3D08 covers 2.5 to 4A and the LR3D14 covers 7 to 10A, so the family spans 2.5A to 10A overall. Pick the model whose range brackets the motor nameplate FLA and set the dial to that current. A motor pulling, say, 5.5A falls between the two bands, so neither of these is the right dial range for it.
3) Is a Class 10A trip curve right for my pump or fan motor?
Class 10A is the standard-duty curve and it is what the LR3D uses, per IEC 60947-4-1, with a tripping threshold of 1.14 +/- 0.06 Ir. That suits normal starting times, which covers most pumps, fans and conveyors. If you are starting a high-inertia load with a long acceleration time, a Class 10A relay will trip during the start and you want a slower class instead.
4) Can I use the LR3D on a 480V or 600V three-phase motor circuit?
Yes. The power circuit is rated 600V UL, 690V per IEC 60947-4-1 and 600V CSA, with a rated operational voltage of 690V AC, so 480V and 600V North American circuits are inside the rating. Rated impulse withstand (Uimp) is 6 kV. Network frequency range is 0 to 400 Hz.
5) What is the closest equivalent to the Square D LR3D overload relay from another manufacturer?
The ABB TF42-16 is a thermal overload relay with a Class 10 trip curve, the same tripping class family as the Square D LR3D TeSys Deca, which uses a Class 10A curve per IEC 60947-4-1. The practical difference is the contactor it bolts to: the LR3D is built to mount under TeSys D contactors such as the LC1D09 through LC1D38, while the TF42 belongs to ABB's TF42 series and pairs with ABB's matching contactor line. If the panel already has TeSys D contactors in it, the LR3D is the relay that lands on the existing base.
6) If a motor draws more than 10A, is the Square D LR3D still the right relay?
No. The LR3D TeSys Deca settings run from 2.5A up to 10A, with the top variant LR3D14 covering 7...10A, so a motor above 10A full-load amperage falls outside its adjustment range. For a larger load, the ABB TF42-16 thermal overload relay is a Class 10 relay rated past that point. Within a TeSys D panel, the relay must be sized so the motor nameplate FLA sits inside the dial band rather than at or beyond the end of it.
7) Is this overload relay UL listed for a US control panel?
It is UL Listed to UL 60947-4-1 and UL 60947-5-1, and also carries CSA C22.2 No 60947-4-1 and No 60947-5-1 plus EN/IEC 60947-4-1 and 60947-5-1. Housing material is flame retardant to V1 per UL 94, and the product is RoHS EUR compliant.
8) Does the LR3D need a separate enclosure, or is it finger-safe on its own?
Degree of protection is IP20 to IEC 60529, which means it is protected against finger contact but not against water or dust ingress. It goes inside a control panel or enclosure, not on an open wall or in a wet location.
9) How do you reset the LR3D after a trip, and what wire do the control terminals take?
There is a red stop push-button and a blue reset push-button on the front for manual intervention at the panel. Control circuit terminals are screw clamp, accepting 1 to 2.5 mm2 flexible conductor without a cable end, torqued to 1.7 N.m.
10) What other direct-to-contactor IEC overload relays could I use instead of the LR3D?
Two Class 10 alternatives in the same style: the ABB TF42-16 from the TF42 series, and the Eaton XT IEC miniature overload relay, which also mounts direct to its contactor. The catch with any of them is the contactor, these relays mount to their own manufacturer's line, so an ABB or Eaton relay means an ABB or Eaton contactor underneath it. If the panel already has TeSys D contactors, stay with the LR3D.
11) What makes the Square D LR3D different from a miniature overload relay like the Eaton XT IEC?
The Eaton XT IEC relay is a miniature-format overload relay for direct-to-contactor mounting. The Square D LR3D TeSys Deca covers a 2.5A to 10A motor FLA range in two settings, 2.5...4A (LR3D08) and 7...10A (LR3D14), carries a 690V rated operational voltage with a 6 kV impulse withstand, and is rated from -20 to 60 degrees C with temperature compensation over that same band. It also adds an integrated red stop and blue reset push-button on the relay face for manual intervention at the panel.
12) For a panel built on ABB contactors, which overload relay should be used instead of the Square D LR3D?
Use the ABB TF42-16 thermal overload relay. It is a Class 10 thermal relay in ABB's TF42 series and is intended for ABB's own contactor mounting, whereas the Square D LR3D TeSys Deca relay is dimensioned to pair under TeSys D contactors. Both give a Class 10 thermal characteristic for standard motor duty, so the choice is driven by which contactor family is already installed rather than by the protection curve.
13) Does the LR3D meet green procurement or RoHS requirements for an institutional spec?
It is RoHS EUR compliant and in scope, REACH free of SVHC, mercury free and free of toxic heavy metals, and Schneider classes it a Green Premium product. Total life cycle carbon footprint is stated at 13 kg CO2 eq. Packaging uses recycled cardboard. Country of origin is France.
14) Can the LR3D be repaired or recalibrated if it fails?
No. Schneider lists the LR3D as non-serviceable, so a failed unit is replaced rather than rebuilt. For an MRO stock plan, that means carrying a spare in each FLA range you run, LR3D08 for 2.5 to 4A and LR3D14 for 7 to 10A.
