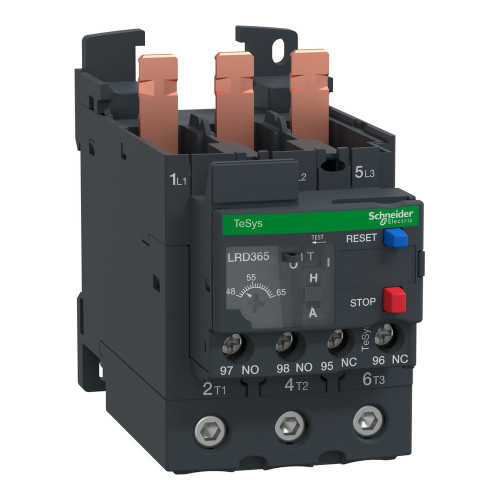

Square D TeSys Deca Class 10A Thermal Overload Relay, 690V AC

Square D TeSys Deca Class 10A Thermal Overload Relay, 690V AC

(No reviews yet) Write a Review

Model: LRD3363

In Stock (leaves warehouse same day if ordered before 3pm ET)

$313.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D TeSys Deca Class 10A Thermal Overload Relay, 690V AC

The Square D TeSys Deca thermal overload relay pairs with TeSys D contactors to build a complete motor starter for commercial and industrial control panels. This differential thermal overload relay detects over currents in the power lines and works with 9 amp through 38 amp TeSys D contactors (LC1D09-LC1D38). It carries a Class 10A overload tripping profile per IEC 60947-4-1, a 690V AC (0-400Hz) rated operational voltage, and holds UL, CSA, and IEC certifications for dependable, code-compliant motor protection.

Key Features

  • Contactor Compatibility: Works with 9 amp through 38 amp TeSys D contactors (LC1D09-LC1D38) to complete a motor starter assembly.
  • Overload Detection: Differential thermal design with a Class 10A tripping profile per IEC 60947-4-1.
  • Control Type: Blue push-button reset and red push-button stop for straightforward operator control.
  • Voltage Rating: 690V AC (0-400Hz) operational voltage; insulation voltage rated 600V UL, 690V IEC, and 600V CSA.
  • Degree of Protection: IP20 rated per IEC 60529 for touch-safe operation in the panel.
  • Ambient Operation: Rated for -20 °C to 60 °C without derating per IEC 60947-4-1.
  • Flexible Mounting: Mounts directly under the contactor, or on plate/rail with the appropriate accessories.
  • Terminal Torque: Screw clamp terminals tighten to 1.7 N.m for secure field wiring.

Certifications & Compliance

  • UL 60947-4-1 / UL 60947-5-1 Listed
  • CSA C22.2 No. 60947-4-1 / 60947-5-1 Certified
  • IEC/EN 60947-4-1 and 60947-5-1 Compliant
  • Additional Listings: RINA, DNV-GL, BV, LROS, EAC, CCC, UKCA, ATEX INERIS
  • RoHS and REACH Compliant (free of SVHC above threshold)

Technical Specifications

  • Listing: UL Listed
  • Device Short Name: LRD
  • Country of Origin: France
  • Warranty Period: 18 months

Typical Applications

  • Motor Starter Assemblies with TeSys D Contactors
  • Commercial and Industrial Motor Control Panels
  • Overload Protection for Three-Phase Motors
  • OEM and Panel Builder Construction

Why Square D?

Square D backs this TeSys Deca overload relay with an 18-month warranty and UL, CSA, and IEC 60947 certifications, delivering reliable, code-compliant overload protection for TeSys D motor starter assemblies in demanding commercial and industrial control panels.

Manufacturer Resources

Product Specs

Product Type:
Overload Relay
Listing:
UL Listed
Voltage Rating:
690V AC
Series:
TeSys Deca
Standards:
IEC 60947-4-1
Country of Origin:
France
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Motor Starters & Contactors

Square D LRD3363 – Frequently Asked Questions

1) Which TeSys D contactors does the Square D LRD overload relay mount to?
The TeSys Deca LRD thermal overload relay is built to work with 9 amp through 38 amp TeSys D contactors, the LC1D09 through LC1D38 range. It mounts directly under the contactor to form a complete motor starter, or you can mount it on a plate or DIN rail with the appropriate mounting accessory if you need it separated in the panel.
2) How do I pick the right LRD relay for my motor's full load amps?
Pick the LRD whose adjustment range brackets your motor nameplate FLA. The small frame covers 1.6 to 24A across models LRD05 through LRD32, with settings sized around 1A, 1.6A, 2.5A, 4A, 6A, 8A, 10A, 13A, 18A, 24A and 32A motor FLA. The large frame covers 23 to 80A with LRD3353, LRD3355, LRD3357, LRD3359 and LRD3363 for 32A, 40A, 50A, 65A and 80A motors. Above that, LRD4365 handles 104A. Set the dial to the actual nameplate FLA once installed, not to the breaker size.
3) What does Class 10A tripping mean on a thermal overload relay, and is it right for my motor?
Class 10A means the relay trips within roughly 10 seconds at locked rotor current, per IEC 60947-4-1. That is the fast trip class, and it suits normal starting loads such as pumps, fans and conveyors that come up to speed quickly. If you have a high-inertia load with a long acceleration time, like a large centrifuge or a loaded crusher, a Class 10A relay will nuisance trip during starting and you want a slower trip class instead.
4) Can I use this Square D overload relay on a 600V motor control panel in the US?
Yes. The TeSys Deca LRD relay carries a 690V AC operational rating over 0 to 400Hz, with insulation voltage rated 600V under UL, 690V under IEC and 600V under CSA. That covers 480V and 600V three-phase panels in North America. It is UL Listed to UL 60947-4-1 and UL 60947-5-1 and CSA certified to C22.2 No. 60947-4-1 and 60947-5-1.
5) What is the difference between the small frame LRD and the LRD33 large frame relays?
They are two physical sizes matched to different contactor frames. The small frame LRD05 through LRD32 covers a 1.6 to 24A adjustment span and serves motors up to about 32A FLA. The LRD33xx large frame covers 23 to 80A and handles 32A through 80A motors. You cannot swap one for the other on the same contactor, so match the relay frame to the contactor frame first, then set the dial to the motor FLA.
6) Is the LRD relay safe to work around in an open panel, and what is the terminal torque?
It is IP20 rated per IEC 60529, so the terminals are finger-safe against accidental contact with live parts inside the enclosure. Screw clamp terminals tighten to 1.7 N.m. Use a torque screwdriver on those, since under-torqued power terminals on a motor circuit are a heating problem.
7) Will a TeSys LRD overload relay work in an unheated or hot plant area?
The relay is rated for -20 degrees C to 60 degrees C ambient without derating, per IEC 60947-4-1. That covers unheated mechanical rooms and most hot process areas. Remember it is a thermal device, so it reads panel temperature as well as motor current; keep it out of direct sun on an outdoor enclosure.
8) Does the LRD relay have a manual reset and a stop button on the front?
Yes. The TeSys Deca LRD has a blue push-button for reset and a red push-button for stop on the face of the device, so an operator or technician can clear a trip and drop the starter without opening anything up. It is a differential thermal design, which also picks up phase loss, not just straight overcurrent.
9) Does this overload relay replace a motor circuit breaker or short circuit protection?
No. A thermal overload relay protects the motor against sustained overcurrent and, being differential, against phase loss. It does not provide short circuit or ground fault protection. You still need an upstream circuit breaker or fuses ahead of the contactor to complete a code-compliant motor branch circuit.
10) Are Square D TeSys LRD relays acceptable for marine and export panel builds?
Beyond UL, CSA and IEC/EN 60947-4-1 and 60947-5-1, the LRD carries RINA, DNV-GL, BV and LROS marine approvals, plus EAC, CCC, UKCA and ATEX INERIS listings. It is also RoHS and REACH compliant, free of SVHC above threshold. Country of origin is France, which matters if your submittal package asks for it.
