Square D LUB TeSys Ultra Power Base, 3-Pole Screw Clamp Control

Square D LUB TeSys Ultra Power Base, 3-Pole Screw Clamp Control

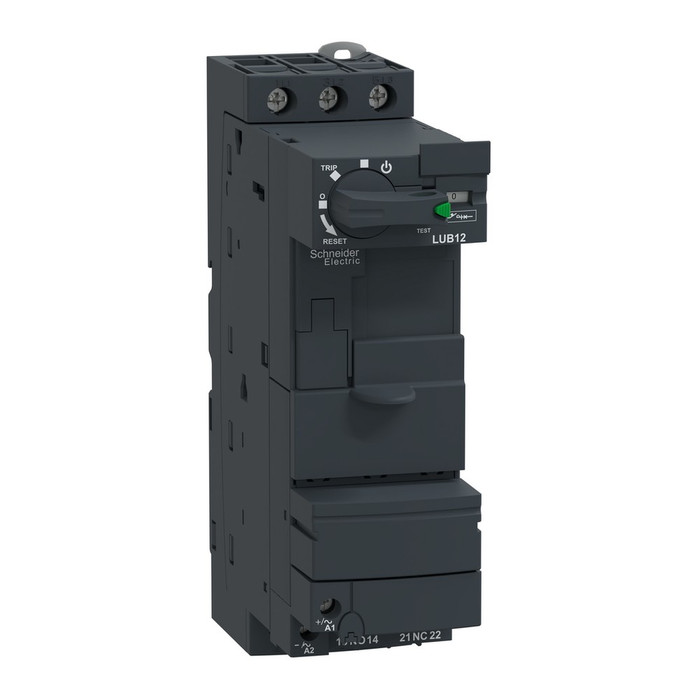

The Square D LUB TeSys Ultra power base is a standard 3-pole (3NO) power base rated up to 32A Ie / 690V Ue, designed to be completed with a Square D LUC control unit to form a complete TeSys U starter controller for 3-phase motor applications up to 15kW@400V. This power base is offered across motor full-load current (FLA) ratings from 12A to 32A, letting panel builders match the base to the motor circuit while sharing the same modular design, screw clamp control terminals, and rotary handle operation. Built with power contacts, a control coil, and a rotary handle, the LUB is suited to industrial and commercial panel-building applications requiring reliable, code-compliant motor control assemblies.

Key Features

• Motor FLA Range: Available in 12A and 32A ratings to match motor full-load current requirements.
• Configuration: 3 poles (3NO) power contacts for non-reversing, 3-phase motor starter applications.
• Electrical Rating: Up to 32A Ie (<=440V) and 690V Ue rated operational voltage for demanding motor circuits.
• Motor Application: Combines with a Square D LUC control unit to form a TeSys U starter controller rated up to 15kW@400V.
• Connections: Control circuit screw clamp terminals, 0.34-1.5 mm² flexible with cable end, tightening torque 0.8-1.2 N.m.
• Operation & Mounting: Rotary handle operation with clipped DIN rail or screw-fixed plate mounting.
• Degree of Protection: IP20 (other faces and front panel/wired terminals), IP40 per IEC 60947.
• Insulation: Ui rated insulation voltage 600V (UL/CSA) / 690V (IEC), Uimp 6kV rated impulse withstand voltage.

Certifications & Compliance

• UL Listed
• CSA Certified
• CE Marked
• ATEX
• CCC
• EAC
• Marine
• ASEFA
• Standards: CSA C22.2 No 60947-4-1, UL 60947-4-1, EN 60947-6-2, IEC 60947-6-2

Technical Specifications

• Motor FLA Options: 12A, 32A
• Amperage Rating: Up to 32A Ie
• Poles Description: 3P
• Device Short Name: LUB
• Warranty Period: 18 months
• Toxic Heavy Metal Free: Yes
• Mercury Free: Yes
• Sustainable Packaging: Yes
• Serviceability: No
• ROHS Eur Full Compliance Status Id: COMPLIANT

Typical Applications

• Motor Control and Protection Circuits
• 3-Phase Motor Starter Assemblies (with LUC control unit)
• Commercial and Industrial Control Panels
• Panel Builder and OEM Control Systems

Why Square D?

Square D LUB TeSys Ultra power bases are built with screw clamp terminals, IP20/IP40 rated protection, and multi-region certifications including UL, CSA, CE, ATEX, CCC, and EAC, giving panel builders and OEMs a reliable, code-compliant foundation across the 12A-32A FLA range for 3-phase motor starter assemblies.
