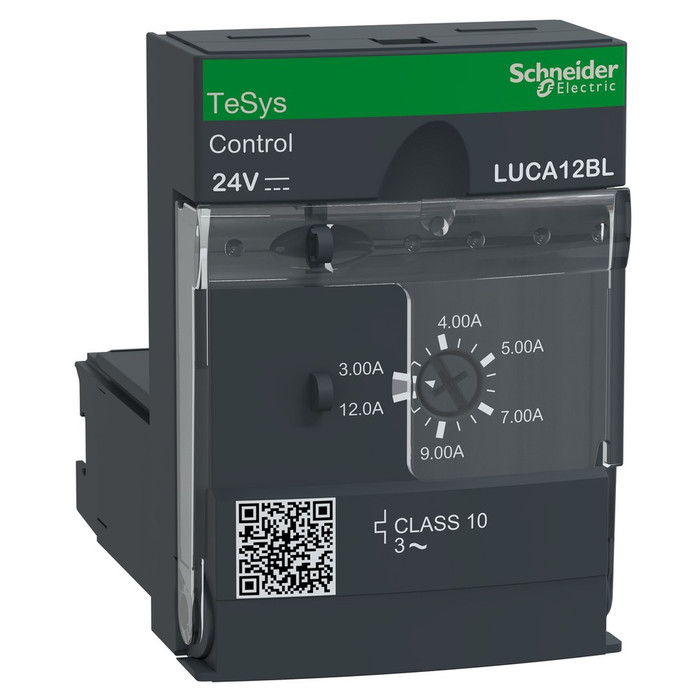

Square D LUCA TeSys Ultra Motor Control Unit, Class 10, 24VDC

Square D LUCA TeSys Ultra Motor Control Unit, Class 10, 24VDC

(No reviews yet) Write a Review

Model: LUCA12BL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$230.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D LUCA TeSys Ultra Motor Control Unit, Class 10, 24VDC

The Square D LUCA TeSys Ultra Standard Control Unit plugs into TeSys power bases LUB12, LUB32, and LUB38 to form a complete starter controller for 3-phase motor applications up to 5.5 kW @ 400V (9 kW @ 690V). This control unit is available in Motor FLA ratings of 3A and 4.5A, with an adjustable rated current Ir of 3-12A, Class 10 thermal overload response, and a 24VDC control circuit. It carries UL, CSA, and IEC 60947-6-2 ratings for dependable motor protection in commercial and industrial applications.

Key Features

  • Motor FLA Options: Available in 3A and 4.5A ratings to match specific motor full-load amperage requirements.
  • Adjustable Overload Range: Ir adjustable 3-12A, with a tripping threshold of 14.2 x Ir +/- 20%.
  • Class 10 Overload Protection: Rated -25 to 70 °C per UL 508 and IEC 60947-6-2, 40-60 Hz.
  • 24VDC Control Circuit: Uc 24VDC, 14.5VDC drop-out, 20-27VDC operating range for stable control performance.
  • Plug-In Mounting: Front-face plug-in fixing into power bases LUB12, LUB32, and LUB38 for fast installation.
  • Motor Coverage: Protects 3-phase self-cooled motors up to 5.5 kW @ 400V and 9 kW @ 690V.
  • Protection Functions: Earth fault, phase failure/imbalance, overload, and short-circuit protection, plus manual reset.
  • IP20 Rated: IP20 on front panel and wired terminals per IEC 60947-1.

Certifications & Compliance

  • UL 60947-4-1, with phase barrier
  • CSA C22.2 No 60947-4-1
  • IEC/EN 60947-6-2
  • Mercury Free
  • RoHS Compliant with Exemptions

Technical Specifications

  • Listing: UL
  • Warranty Period: 18 months
  • Average Life Duration: 15 year(s)
  • Mercury Free: Yes
  • ROHS Eur Status: Compliant with Exemptions
  • Sustainable Packaging: Yes
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • WEEE Scope: In
  • Environmental Disclosure: ENVPEP2406038EN

Typical Applications

  • 3-Phase Motor Starter Control with LUB Power Bases
  • Overload and Short-Circuit Protection for Industrial Motors
  • Motor Control Center and Panelboard Wiring
  • Earth Fault and Phase Failure Protection Circuits
  • Renovation of Existing TeSys U Motor Starters

Why Square D?

Square D LUCA TeSys Ultra control units pair Class 10 overload protection with UL, CSA, and IEC 60947-6-2 compliance for dependable motor protection across the 3A and 4.5A Motor FLA range. Built mercury-free with RoHS-compliant materials and backed by an 18-month warranty, this control unit delivers the reliable, code-ready performance professionals expect from Square D on every TeSys Ultra installation.

Manufacturer Resources

Product Specs

Product Type:
Motor Control Unit
Series:
TeSys Ultra
Voltage Rating:
24VDC
Amperage Rating:
3-12A
Listing:
UL Listed
Standards:
IEC 60947-6-2
Configuration:
Class 10 Overload
Department:
Electrical
Product Group:
Motor Control & Automation
Product Subgroup:
Overload Relays

Square D LUCA12BL – Frequently Asked Questions

1) Does the Square D LUCA control unit work on its own, or do I need a power base too?
The LUCA TeSys Ultra control unit is only half a starter. It plugs into a TeSys power base, LUB12, LUB32 or LUB38, and the two together form the complete starter controller for 3-phase motor circuits. Mounting is a front-face plug-in into the base, so order the matching base with it if you are not re-using one already in the panel.
2) Is the Square D LUCA control unit acceptable for a UL panel build?
Yes. It is UL Listed to UL 60947-4-1 with phase barrier, CSA C22.2 No 60947-4-1, and IEC/EN 60947-6-2, with Class 10 overload performance rated per UL 508 and IEC 60947-6-2 at 40-60 Hz. That covers the usual approvals a spec writer or inspector asks for on a motor starter in a commercial or industrial panel.
3) I have an existing TeSys U starter that failed. Can I just swap the control unit?
That is one of the intended uses. The LUCA control unit is listed for renovation of existing TeSys U motor starters, and because it plugs into the LUB12, LUB32 and LUB38 bases from the front face, you can leave the base and the power wiring in place and change only the control unit, provided the replacement matches your control voltage (24VDC here) and motor FLA.
4) How big a motor can a LUCA TeSys Ultra starter protect?
With a LUB power base, the LUCA unit covers 3-phase self-cooled motors up to 5.5 kW at 400V, or 9 kW at 690V. Within that, set the adjustable rated current Ir anywhere from 3 to 12A to match the motor, with the unit supplied at either 3A or 4.5A Motor FLA.
5) What protection does the LUCA unit actually provide besides overload?
Four functions beyond thermal overload: earth fault, phase failure and phase imbalance, short-circuit, and manual reset after a trip. The thermal response is Class 10 and the short-circuit tripping threshold is 14.2 x Ir, plus or minus 20 percent.
6) Can I use this in an unheated or hot mechanical room?
Operating range runs -25 to 70 degrees C, so unheated plant rooms and warm motor rooms are both inside the envelope. Enclosure protection is IP20 on the front panel and wired terminals per IEC 60947-1, which means finger-safe but not dust or water tight. Wet or washdown locations need a sealed enclosure around it.
7) Is Class 10 the right overload class for my application, or do I need Class 20?
The LUCA units here are Class 10 only, which trips in roughly 10 seconds at locked-rotor current. That suits normal-starting loads such as pumps, fans and compressors. Long-accelerating or high-inertia loads that pull starting current for longer are usually specified Class 20, and for those you would need a different TeSys Ultra control unit rather than this one.
8) Does the LUCA unit meet RoHS and mercury-free purchasing requirements?
It is mercury free and RoHS compliant with exemptions, in WEEE scope, and the environmental disclosure reference is ENVPEP2406038EN. Packaging is recycled cardboard with no single-use plastic, which matters if you are buying against a sustainable-procurement spec.
How fast can I get the Square D LUCA12BL delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
