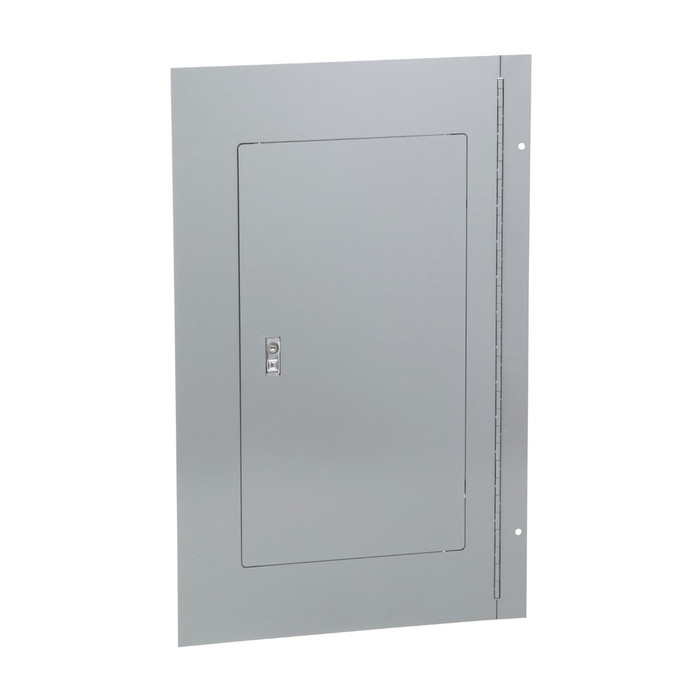

Square D NC Series NQ/NF Type 1 Hinged Surface-Mount Panelboard Enclosure Cover

Square D NC Series NQ/NF Type 1 Hinged Surface-Mount Panelboard Enclosure Cover

(No reviews yet) Write a Review

Model: NC32SHR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$379.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

Square D NC Series NQ/NF Type 1 Hinged Surface-Mount Panelboard Enclosure Cover

Square D's NC Series NQ/NF panelboard enclosure cover is a Type 1 (NEMA 1) rated, hinged, surface-mount cover engineered for NQ and NF panelboard applications in commercial buildings, industrial buildings, data centers, stadiums, and offices. Constructed of steel with a gray finish, this cover is part of Square D's modular NQ/NF panelboard enclosure system and is cULus listed for code-compliant installations. The cover is available to fit a range of enclosure box sizes, including 20 in. W x 32 in. H, 20 in. W x 56 in. H, and 20 in. W x 68 in. H boxes, giving electrical contractors and OEMs flexibility to match the cover to the panelboard box already specified for the job. NC Series enclosures are also available in a range of NEMA ratings, including Type 1, 2, 3R, 4, 4X, 5, and 12, to match diverse indoor and outdoor installation requirements.

Key Features

  • Type 1 (NEMA 1) Rating: NEMA Type 1 degree of protection suited for general-purpose indoor enclosure applications.
  • Hinged Front Plate: Hinged cover design allows convenient access to panelboard components during installation and maintenance.
  • Surface-Mount Design: Surface mounting configuration simplifies installation directly to wall surfaces.
  • Durable Steel Construction: Steel enclosure material with a gray finish for long-term durability.
  • Modular Construction: Modular construction allows for easy assembly or modification across the NQ/NF panelboard system.
  • Multiple Box Sizes: Sized for 20 in. W x 32 in. H, 20 in. W x 56 in. H, and 20 in. W x 68 in. H enclosure boxes, covering a range of panelboard installations.
  • Design Flexibility: Accessories and replacement parts allow design flexibility and maximize job productivity.
  • Tightening Torque: Cover fasteners rated 10...12 lb.in for proper installation torque.

Certifications & Compliance

  • cULus Listed
  • Toxic Heavy Metal Free
  • Mercury Free
  • RoHS EUR Compliant (Pro-Active Compliance)

Technical Specifications

  • Enclosure Material: Steel
  • Nema Degree Of Protection: NEMA 1
  • Type Of Front Plate: Hinged
  • Color: Gray
  • Warranty: 18 months
  • Country of Origin: USA
  • Packaging: 36 ea
  • Enclosure Box Sizes: 20 in. W x 32 in. H, 20 in. W x 56 in. H, 20 in. W x 68 in. H

Typical Applications

  • Commercial Building Electrical Systems
  • Industrial Panelboard Installations
  • Data Center Power Distribution
  • Stadium and Large-Venue Electrical Rooms
  • Office Building Panelboard Enclosures

Why Square D?

Square D panelboard enclosure covers are engineered for reliable, code-compliant performance with cULus-listed construction and durable steel housings. The NC Series' modular design, multiple enclosure box sizing, and available accessories give contractors and OEMs the flexibility to configure NQ/NF panelboard systems to the exact requirements of the job.

"

Manufacturer Resources

Product Specs

Product Type:
Panel Cover & Trim
Configuration:
NEMA 1 Enclosure
Listing:
cULus
Country Of Origin:
United States
Series:
NC Series
Product Material:
Steel
Product Color:
Gray
Department:
Electrical
Product Group:
Power Distribution
Product Finish:
Gray
Product Subgroup:
Panelboards & Load Centers
Product Width:
20 in

Square D NC32SHR – Frequently Asked Questions

1) Will a Square D NC Series surface-mount cover work on a flush-mounted panelboard box in a finished wall?
No. The NC Series NQ/NF covers listed here are surface-mount trims, made to land on a box mounted on the wall surface. A recessed box set in drywall needs a flush trim instead, because the flush version overlaps the wall opening rather than matching the box face. Check whether the existing box is surface or flush before you pick the cover.
2) Is the Square D NC panelboard cover rated for outdoor or wash-down areas?
No. This is a Type 1 (NEMA 1) cover, which is general-purpose indoor protection only, no rain, no hose-down, no dust-tight sealing. For outdoor or wet locations you need a different NC enclosure rating; the NC Series is offered in Type 2, 3R, 4, 4X, 5 and 12 as well as Type 1.
3) Does this Square D cover fit both NQ and NF panelboards?
Yes. The NC Series hinged surface covers are part of Square D's modular NQ/NF panelboard enclosure system and are built for both NQ and NF interiors, so long as the box size matches one of the three offered: 20 x 32, 20 x 56, or 20 x 68 inches.
4) Does ordering a Square D NC Series cover include the panelboard box and interior?
No. This is the enclosure cover only. The NQ/NF system is modular, so the box, the panelboard interior with its bus and breakers, and the cover are ordered separately and matched by size. Buying the NC68SHR gets you the trim for a 20 x 68 inch box, nothing more.
5) What torque should the panelboard cover fasteners be tightened to?
Cover fasteners on the NC Series hinged front are rated 10 to 12 lb-in. Use a torque screwdriver in that range; overtightening on a sheet steel trim distorts the door line and the hinged front stops sitting flat.
6) Is this Square D panelboard cover UL listed for a commercial inspection?
It carries a cULus listing, which covers both US and Canadian requirements. Combined with the NEMA Type 1 indoor rating, that is what an inspector looks for on a general-purpose indoor panelboard in a commercial building, data center, or office.
7) Is the front of this panelboard cover hinged or a removable dead-front plate?
Hinged. The front plate swings open for access to breakers and wiring during installation and service, instead of coming off entirely as a lift-out trim would. That matters in tight electrical closets, where you need swing clearance in front of the panel.
8) Where is the Square D NC panelboard cover made, for a Buy American spec?
Country of origin is the United States. On a government or institutional job carrying domestic-content language, that is the line item your submittal needs.
9) What is the Square D NC cover made of, and will it match the other panels in my building?
Steel with a gray finish, which is Square D's standard panelboard trim color. If your existing NQ or NF panels are Square D gray steel, a replacement NC cover will match the rest of the electrical room.
