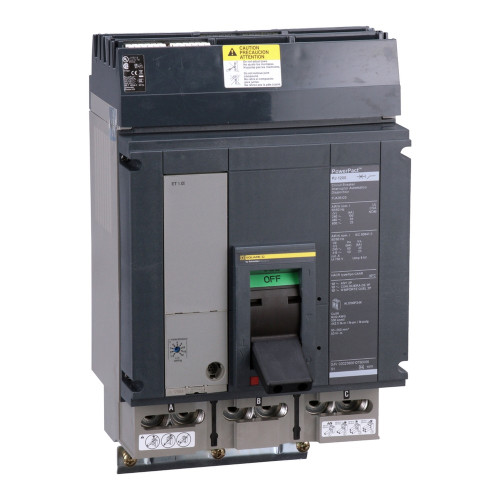

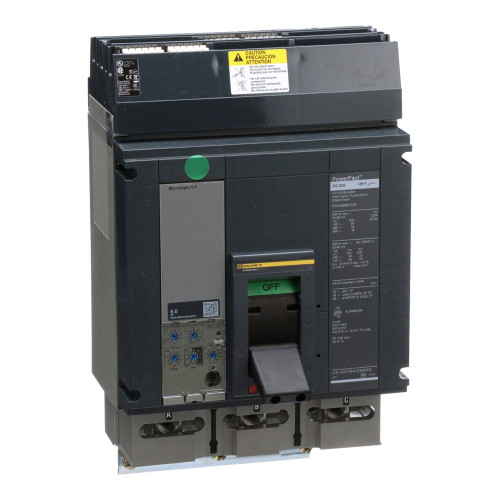

Square D PowerPacT P 3-Pole 600VAC I-Line Circuit Breaker

Square D PowerPacT P 3-Pole 600VAC I-Line Circuit Breaker

(No reviews yet) Write a Review

Model: BDA24100Y1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$690.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D PowerPacT P 3-Pole 600VAC I-Line Circuit Breaker, Micrologic 5.0

The Square D PowerPacT P-Frame circuit breaker is a 3-pole, 600VAC I-Line circuit breaker engineered to protect electrical distribution systems from overloads and short circuits. Equipped with an electronic Micrologic 5.0 LSI trip unit, this breaker delivers a 25 kA service breaking capacity (Ics) at 380/415V AC and is HACR rated for demanding commercial and industrial applications. Built for I-Line panelboard systems, it is UL, CSA, and NOM-003-SCFI-2000 compliant and carries Square D's Green Premium designation.

Key Features

  • Configuration: 3-pole (3P) design for balanced multi-phase electrical distribution.
  • Voltage Rating: Rated 600 V AC 50/60 Hz per UL 489, with a 750V rated insulation voltage (Ui) per IEC 60947-2.
  • Interrupt Rating: Ics rated service breaking capacity of 25 kA at 380/415V AC and 35 kA at 240V AC per IEC 60947-2, with an 8 kV rated impulse withstand voltage (Uimp).
  • Trip Unit: Electronic, standard MicroLogic 5.0, LSI trip technology with a long time pick-up adjustment range of 0.4...1 x Ir.
  • Electrical Connection: I-Line connection on the line side with lugs on the load side, secured via an I-Line bracket mounting mode.
  • Wire Range: Accepts 3 x AWG 3/0...500 kcmil aluminum/copper conductors for flexible field termination.
  • Environmental Rating: Front cover IP40 degree of protection; rated for ambient air temperature for operation of -25 to 70°C.
  • Application: HACR rated for heating, air conditioning, and refrigeration equipment circuit protection.

Certifications & Compliance

  • UL Listed per UL 489
  • CSA Certified
  • NOM-003-SCFI-2000 Compliant
  • IEC 60947-2
  • NEMA
  • CE Quality Label
  • Green Premium Product

Technical Specifications

  • Warranty Period: 18 months
  • Sustainable Packaging: No
  • Recycled Metal Content At Cr Level: 0 %
  • Poles Description: 3P
  • Serviceability: Yes
  • China ROHS In Scope: No
  • Return Indicator: Y
  • Tier: 1
  • Legacy WEEE Scope: In
  • Removable Battery: YES
  • EOLI Availability Display: Yes
  • Without Single Use Plastic: No
  • ROHS Exemption Information: Yes
  • Quality Labels: CE
  • WEEE Product Category: 4
  • Warranty: 18 months
  • Mercury Free: Yes
  • ROHS Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Packaging Without Single Use Plastic: No
  • Tier Id: 1
  • ROHS Eur In Scope: Yes
  • Environmental Disclosure: ENVPEP2206033_V2
  • ROHS Eur Status: Compliant with Exemptions

Typical Applications

  • Commercial and Industrial Electrical Distribution Panels
  • I-Line Panelboard Systems
  • Main Panel Disconnect for Control Panels
  • HACR-Rated Equipment Circuit Protection
  • Renovation and New Construction Electrical Upgrades

Why Square D?

Square D PowerPacT P-Frame circuit breakers combine electronic MicroLogic 5.0 LSI trip technology with UL, CSA, and NOM-003-SCFI-2000 compliance for reliable, code-compliant performance in commercial and industrial electrical systems. Backed by an 18-month warranty and designed for serviceability, this breaker reflects Square D's Green Premium commitment to dependable, standardized I-Line distribution equipment.

Manufacturer Resources

Product Specs

Product Type:
Circuit Breaker
Configuration:
3-Pole
Voltage Rating:
600VAC
Connection Type:
I-Line
Series:
PowerPacT P
Standards:
IEC 60947-2
Listing:
UL Listed
Department:
Electrical
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers

Square D BDA24100Y1 – Frequently Asked Questions

1) Will a Square D PowerPacT P-Frame breaker mount in an I-Line panelboard, or does it need a bolt-on kit?
It plugs straight into an I-Line panelboard. The line side uses the I-Line connection and the breaker is secured with an I-Line bracket mounting mode, so no separate bolt-on base is needed. The load side is lug terminated, so you bring your feeders out to the lugs.
2) What wire size can I land on the load-side lugs of this PowerPacT P-Frame breaker?
The load lugs take 3 x AWG 3/0 through 500 kcmil, aluminum or copper. That covers a single conductor per pole in that range, so parallel runs beyond one conductor per phase are out unless you feed a separate terminal block.
3) Is this Square D breaker rated for a 480V three-phase service?
Yes. The PowerPacT P 3-pole breaker is rated 600 V AC, 50/60 Hz per UL 489, which covers 480Y/277V and 600V systems as well as 240V. Rated insulation voltage is 750V and rated impulse withstand is 8 kV per IEC 60947-2.
4) What interrupting capacity does this P-Frame breaker give me, and is it enough for my available fault current?
Service breaking capacity (Ics) is 25 kA at 380/415V AC and 35 kA at 240V AC per IEC 60947-2. Compare those against the available fault current at the panel location, not at the transformer, and bear in mind the number drops as system voltage rises.
5) Can I use this breaker to protect a rooftop HVAC unit or chiller feeder?
Yes, it is HACR rated, which is what you need for heating, air conditioning and refrigeration equipment branch protection. Ambient operating range is -25 to 70 degrees C, so a hot mechanical room or a panel on a roof curb is within spec.
6) Can an ABB A2A150TT molded case breaker be used in place of a Square D PowerPacT P I-Line breaker?
No. The Square D PowerPacT P is built with an I-Line connection on the line side, so it plugs onto the energized bus of an I-Line panelboard and is held by an I-Line bracket. The ABB A2A150TT is an A2N Series 3-pole molded case breaker, which is a separately mounted and cable- or lug-connected device rather than an I-Line plug-on unit. It cannot land on an I-Line bus stack, so for an I-Line panelboard the PowerPacT P is the one that fits the enclosure.
7) I need a 3-pole breaker for a 600VAC commercial feeder - is an Eaton BAB Quicklag an alternative to the PowerPacT P?
They are rated for different systems. The Square D PowerPacT P is rated 600 V AC per UL 489 with a MicroLogic 5.0 electronic LSI trip unit. The Eaton BAB Quicklag three-pole industrial breaker is a 240V thermal-magnetic device. On a 600VAC feeder the PowerPacT P is the one rated for the voltage; the BAB suits 240V branch circuit work where a plug-on or bolt-on thermal-magnetic breaker is specified.
8) What does the Micrologic 5.0 LSI trip unit actually adjust, and how is it different from a thermal-magnetic breaker?
LSI means long time, short time and instantaneous protection, set electronically rather than by a fixed thermal element. Long time pick-up adjusts over 0.4 to 1 x Ir, so you can dial the breaker down to coordinate with downstream devices instead of replacing it with a smaller frame. There is no ground fault (G) function on a 5.0 unit. If you only need basic overload and short circuit protection on a small branch, a thermal-magnetic bolt-on such as the Eaton BAB Quicklag 3-pole is the simpler route.
9) Does this Square D breaker meet code for a commercial job and for export to Mexico?
It is UL Listed per UL 489, CSA Certified, NEMA, carries the CE quality label, and is compliant with NOM-003-SCFI-2000 for Mexico. It also meets IEC 60947-2 and carries Square D's Green Premium designation with an environmental disclosure reference of ENVPEP2206033_V2.
10) Can this breaker be used as the main disconnect in a control panel enclosure?
Yes, it is used as a main panel disconnect for control panels as well as in commercial and industrial distribution panelboards. The front cover is IP40, so it is intended to sit inside an enclosure rather than be exposed.
11) Which Square D part number should I order for a PowerPacT P I-Line breaker?
Three catalog numbers are offered: QBA32200, BDA24100Y1, and MJA36800E10. Order by the exact catalog number, since the frame, amp rating and trip unit are all baked into that number on Square D breakers.
12) What are my alternatives if I am not running a Square D I-Line panelboard?
I-Line is a Square D plug-on bus system, so a P-Frame breaker will not land in another manufacturer's panel. For non-I-Line molded case work, ZenSupply carries the ABB A2N series (A2A150TT), the ABB XT4 and XT5 3-pole breaker kits, and the Eaton Series C K-Frame 400A 3-pole with an interchangeable rating plug. For small bolt-on branch circuits the Eaton BAB series is the usual choice.
13) What is the difference between the PowerPacT P and the Eaton Series C K-Frame 400A 3-pole breaker?
Both are 3-pole breakers for distribution duty, but they adjust differently. The Square D PowerPacT P uses an electronic MicroLogic 5.0 LSI trip unit with a long time pick-up adjustment range of 0.4 to 1 x Ir. The Eaton 6602C72G67 Series C K-Frame is a 400A 3-pole mining breaker whose rating is set by an interchangeable rating plug. The PowerPacT P also lands on an I-Line bus, while the K-Frame is a separately mounted frame.
14) How do the ABB XT4 and XT5 3-pole breaker kits compare with the Square D PowerPacT P?
The ABB MBB33 is an XT4 Series 3-pole molded case breaker kit and the ABB MBM334 is an XT5 3-pole breaker kit; both are supplied as kit assemblies in the XT platform. The Square D PowerPacT P is a 3-pole breaker built specifically for I-Line panelboard systems, with an I-Line line-side connection and lugs on the load side accepting 3 x AWG 3/0 to 500 kcmil aluminum or copper conductors. If the gear is an I-Line panelboard, the PowerPacT P is the breaker that mates to the bus.
15) We need an undervoltage release function - does the PowerPacT P cover that or do I need a different part?
The Square D PowerPacT P is the breaker itself, a 3-pole 600VAC I-Line device with a MicroLogic 5.0 LSI trip unit for overload and short circuit protection. An undervoltage release is a separate accessory function; the Eaton 10250T-GR is a molded case circuit breaker undervoltage release in the NZM series. Order the breaker for the protection and the release as its own item for the undervoltage trip.
16) For HACR-rated equipment protection, is the Eaton BAB1010 bolt-on breaker an equivalent choice to the PowerPacT P?
They serve different points in the system. The Square D PowerPacT P is HACR rated for heating, air conditioning and refrigeration equipment circuit protection at 600 V AC, mounted on an I-Line bus with load-side lugs for 3/0 to 500 kcmil conductors. The Eaton BAB1010 is a BAB Series Quicklag thermal-magnetic bolt-on breaker, a bolt-on branch device rather than an I-Line plug-on feeder breaker. Large rooftop and chiller feeders fed from I-Line gear take the PowerPacT P; smaller bolt-on branch circuits take the BAB.
17) Is this breaker field serviceable, or do I replace the whole unit when the trip unit fails?
Square D lists this P-Frame breaker as serviceable, and the trip unit is an electronic Micrologic 5.0 module rather than a sealed thermal element. For MRO stocking that means a trip unit issue does not automatically mean scrapping the frame.
18) Does this 3-pole breaker work on a single-phase panel?
It is a 3-pole (3P) device built for balanced multi-phase distribution. On a single-phase system you would be leaving a pole unused, which is wasteful and generally not how it is specified. For single or two-pole branch work, look at a bolt-on thermal-magnetic breaker instead.
