Square D TeSys Deca Reversing ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$574.57

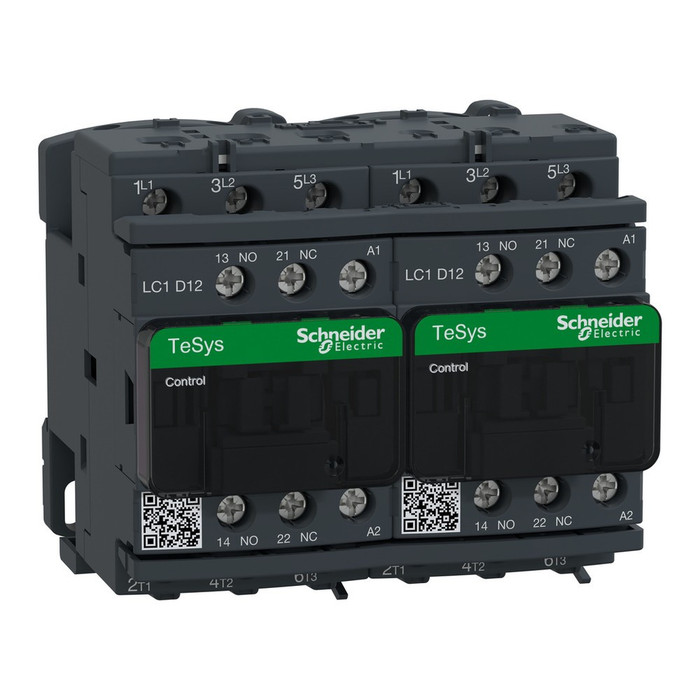

Square D TeSys Deca Reversing IEC Contactor, 3-Pole, 120V AC Coil (G7)

Square D TeSys Deca Reversing IEC Contactor, 3-Pole, 120V AC Coil (G7)

(No reviews yet) Write a Review

Model: LC2D12G7

In Stock (leaves warehouse same day if ordered before 3pm ET)

$574.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D TeSys Deca Reversing IEC Contactor, 3P, 7.5 HP at 480 VAC

The Square D TeSys Deca Reversing IEC Contactor, 3P, 7.5 HP at 480 VAC delivers motor control rated up to 12A/690V AC-3 (5.5kW@400V). This 3-pole (3NO) reversing contactor has a 120V 50/60Hz AC control coil and 2NO+2NC auxiliary contacts, built to IEC 60947-4-1 and EN 60947-4-1 with IP20 front-face protection.

Key Features

  • Reversing Configuration: 3-pole (3NO) reversing contactor for motor control and resistive load applications.
  • Motor Power Rating: Up to 5.5 kW at 380...400 V AC 50 Hz, 3 kW at 220...230 V AC 50 Hz, and 5.5 kW at 415 V; up to 2 hp at 230/240 V AC 60 Hz and 1 hp at 115 V AC 60 Hz for single-phase motors.
  • Rated Operational Current: 25 A (at <60 °C, <=440 V AC-1) for the power circuit, with AC-3 performance to 12 A at 690 V.
  • Rated Operational Voltage: Power circuit rated <=690 V AC (25...400 Hz) or <=300 V DC.
  • Control Circuit: 120 V AC 50/60 Hz coil with built-in 2NO+2NC auxiliary contacts.
  • Degree of Protection: IP20 front face conforming to IEC 60529.
  • Mounting: Rail or plate mounting support.
  • Mechanical Durability: Rated for 15 Mcycles with a 20-year average life duration.

Certifications & Compliance

  • UL Listed
  • CSA Certified
  • IEC 60947-4-1, EN 60947-4-1, IEC 60947-5-1, EN 60947-5-1, and IEC 60335-1 compliant
  • UKCA, GOST, DNV, RINA, CCC, GL, BV, and LROS marine/international certifications
  • V1 Flame Retardance per UL 94

Technical Specifications

  • Toxic Heavy Metal Free: Yes
  • Warranty Period: 18 months
  • Sustainable Packaging: Yes
  • Recycled Metal Content At Cr Level: 0 %
  • Poles Description: 3P
  • Serviceability: No
  • With Recycled Cardboard: Yes
  • Contact Compatibility: M2
  • China ROHS In Scope: No
  • Return Indicator: Y
  • Tier: 1
  • Reach Free Shvc: Yes
  • Legacy WEEE Scope: In
  • Packaging Made With Recycled Cardboard: Yes
  • EOLI Availability Display: Yes
  • Without Single Use Plastic: Yes
  • ROHS Exemption Information: Yes
  • WEEE Product Category: 5
  • Mercury Free: Yes
  • Packaging Without Single Use Plastic: Yes
  • Tier Id: 1
  • ROHS Eur In Scope: Yes
  • China ROHS Label: 1
  • Mechanical Durability: 15 Mcycles
  • Average Life Duration: 20 year(s)
  • Take Back: No

Typical Applications

  • Motor Starter Assemblies
  • Industrial Control Panels
  • Commercial Motor Control Circuits
  • Reversing Motor Control Applications
  • Panel Building and OEM Equipment

Why Square D?

Square D by Schneider Electric backs the TeSys Deca line with rigorous IEC, UL, and CSA testing, 15 Mcycle durability, and an 18-month warranty — dependable control for panel builders, OEMs, and integrators.

Manufacturer Resources

Product Specs

Series:
TeSys Deca
Department:
Electrical
Listing:
UL Listed
Product Type:
Contactor
Standards:
IEC 60947-4-1
Product Group:
Motor Control & Automation
Product Subgroup:
Contactors & Relays

Square D LC2D12G7 – Frequently Asked Questions

1) Do I need a separate interlock kit to reverse a motor with the Square D LC2D TeSys Deca contactor?
No. The LC2D is a reversing contactor, meaning two 3-pole (3NO) power blocks come already assembled and interlocked for forward/reverse motor control. If you buy two standard non-reversing contactors instead, you have to add the mechanical and electrical interlock yourself. The LC2D arrives ready to wire for reversing duty.
2) What coil voltage is the Square D LC2D G7 contactor, and will it work on a 120V control circuit?
The G7 suffix on the LC2D means a 120 V AC 50/60 Hz control coil, so it drops straight onto a standard 120 V control transformer or line-voltage 120 V control circuit. Built-in auxiliary contacts are 2NO + 2NC, so you can wire seal-in and interlock logic without bolting on an extra aux block.
3) Which LC2D size do I order for a 7.5 HP 480V motor?
The 12 A frame covers it. The LC2D is rated to 12 A at 690 V in AC-3 duty, which Square D publishes as 7.5 HP at 480 VAC and 5.5 kW at 380 to 400 V. Four orderable sizes exist: LC2D12G7 (12 A motor FLA), LC2D18G7 (18 A), LC2D32G7 (32 A) and LC2D65AG7 (65 A frame). Size off the motor nameplate full-load amps, not the horsepower alone.
4) What is the closest IEC alternative to the Square D LC2D12G7 reversing contactor from another manufacturer?
For a three-pole IEC contactor in the same general motor-control current class, the ABB AF-09301013 is an AF16 series three-pole contactor rated 9-16A AC-3 with one normally open auxiliary contact. The Square D LC2D12G7 is a TeSys Deca unit built to IEC 60947-4-1 with a 120V AC coil, 2NO+2NC auxiliary contacts, and - importantly - a factory reversing assembly, meaning two mechanically and electrically interlocked contactor blocks for forward/reverse motor operation. The ABB AF16 is a single non-reversing block, so using it to replace an LC2D would require a second contactor plus a reversing interlock kit to reproduce the same function.
5) If I only need forward motor starting, is there a simpler option than the LC2D reversing contactor?
Yes. The LC2D series is a reversing assembly - two interlocked three-pole blocks for forward and reverse rotation - so it is more contactor than a single-direction load needs. For straight across-the-line starting, the Eaton AE16 series three-phase IEC contactor/starter handles single-direction motor control, and the ABB AF16 three-pole contactor rated 9-16A AC-3 with a 1NO auxiliary contact is another single-block choice. Both occupy less panel width than a reversing pair and need no mechanical interlock. Choose the LC2D only when the application actually drives the motor in both directions.
6) Can I use an Eaton Freedom coil and contactor kit in place of a Square D LC2D32G7?
No - those are different classes of item. The Eaton 932563 is a Freedom series coil and contactor kit, 220-240V, 65mm, AC, and the Eaton 6-44-2 Freedom A1 kit and 6364 Citation B1 three-pole kit are renewal parts, meaning replacement contact sets and coils intended to rebuild an existing Eaton starter in the field. The Square D LC2D32G7 is a complete reversing contactor assembly with a 120V 50/60Hz AC coil, rail or plate mounting, and 2NO+2NC auxiliary contacts. A renewal kit will not mount or wire into a Square D TeSys Deca frame, and the Freedom kit coil is a 220-240V AC part rather than 120V.
7) Can the TeSys Deca LC2D reversing contactor be used on a single-phase motor?
Yes. Square D rates it to 2 hp at 230/240 V AC 60 Hz and 1 hp at 115 V AC 60 Hz for single-phase motors. For resistive (AC-1) loads the power circuit carries 25 A below 60 degrees C up to 440 V AC, and it is rated to 690 V AC (25 to 400 Hz) or 300 V DC.
8) Does the LC2D mount on DIN rail or does it have to be panel mounted?
Either. The TeSys Deca LC2D supports rail or plate mounting, so it works in a DIN-rail control panel or screwed directly to a back plate in a motor starter enclosure. Front-face protection is IP20 per IEC 60529, which means it is finger-safe at the front but needs an enclosure for anything dusty or wet.
9) Is the Square D LC2D contactor UL Listed for a control panel build?
UL Listed and CSA Certified, and built to IEC 60947-4-1 and EN 60947-4-1 for contactors plus IEC/EN 60947-5-1 for the auxiliary contacts. It also carries UKCA, CCC, GOST and marine approvals (DNV, RINA, GL, BV, LROS), with V1 flame retardance per UL 94. That covers most industrial control panel and OEM equipment submittals.
10) What is the difference between buying the Square D LC2D and an Eaton or ABB IEC contactor?
The LC2D is a factory-assembled reversing pair, so it does two directions out of one part number. Single-direction IEC contactors we carry include the ABB AF16 3-pole with a 1NO auxiliary contact rated 9-16 A AC-3, and the Eaton AE16 three-phase IEC contactor/starter. Those are non-reversing devices, so a forward/reverse job needs two of them plus interlocking. Eaton also offers renewal kits (Freedom A1, Citation B1, Freedom coil and contactor kit) if you are rebuilding an existing starter rather than specifying new.
11) My control circuit is 240V, not 120V - what should I look at instead of the LC2D G7?
The G7 suffix on the Square D LC2D reversing contactor designates a 120V 50/60Hz AC control coil, so it is the wrong coil voltage for a 240V control circuit. On the Eaton side, the Freedom coil and contactor kit 932563 is specified as a 220-240V AC, 65mm part, which matches a 240V control supply - though it is a renewal kit for an existing Eaton starter rather than a standalone reversing assembly. If you need a complete reversing contactor, stay in the TeSys Deca LC2D family and order the coil-voltage suffix that corresponds to your control transformer output rather than the G7 version.
12) For a panel build that needs more than 16A AC-3, how does the LC2D range compare with the ABB AF16 and Eaton AE16?
The Square D LC2D reversing contactor is offered across motor FLA ratings of 12A, 18A and 32A plus a 65A frame, with AC-3 performance to 12A at 690V on the smallest and a 25A rated operational current in AC-1 service at under 60 degrees C and up to 440V AC. The ABB AF-09301013 is an AF16 frame rated 9-16A AC-3, and the Eaton AE16 is likewise an AE16-frame three-phase IEC contactor, so both top out in a smaller frame class than the upper LC2D ratings. For loads above the 16A band, the LC2D32 or LC2D65A frames cover the range in a single reversing assembly.
13) How long will a TeSys Deca reversing contactor last in a frequently cycled application?
Mechanical durability is 15 million cycles with a 20-year average life duration. That matters on reversing duty, where the contactor sees roughly twice the operations of a single-direction starter. Note that the LC2D is not field serviceable, so plan on replacing the unit rather than renewing contacts.
14) Will accessories from the TeSys Deca line fit the LC2D reversing contactor?
Contact compatibility is listed as M2, which is the TeSys Deca accessory group for this frame. Match any add-on auxiliary blocks, timers or surge suppressors to the M2 compatibility designation so they seat on the contactor body. Keep in mind the LC2D already includes 2NO + 2NC auxiliaries.
15) Is the TeSys Deca LC2D free of mercury and heavy metals for a green building or sustainable procurement spec?
Yes on both counts: Square D lists the LC2D as toxic heavy metal free and mercury free, in scope for ROHS EUR with exemption information available. Packaging is sustainable, made with recycled cardboard and without single-use plastic. WEEE product category is 5 and it falls in legacy WEEE scope.
