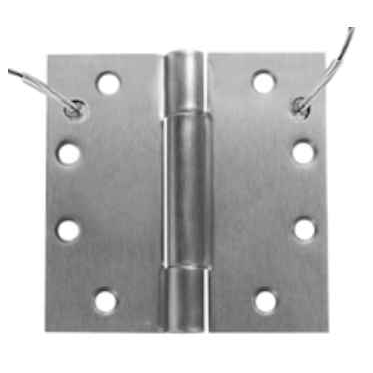

BEST CECB1901R-58 Steel Full Mortise Concealed Bearing Heavy Weight Electrified Hinge with 8 Wires

BEST CECB1901R-58 Steel Full Mortise Concealed Bearing Heavy Weight Electrified Hinge with 8 Wires

(No reviews yet) Write a Review

Model: BEST-CECB1901R-56LH-652-4.5x4.5-1
$232.61
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$232.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST CECB1901R-58 Steel Full Mortise Concealed Bearing Heavy Weight Electrified Hinge with 8 Wires

Professional Electrified Hinge Solution for Commercial Access Control

The BEST CECB1901R-58 is a heavy-weight electrified hinge engineered for commercial door applications requiring integrated electronic access control. Constructed with durable steel and featuring concealed bearings, this full mortise hinge provides smooth operation while conducting current regardless of door position. The 8-wire configuration enables simplified integration with electric locks, exit devices, and access control systems while maintaining a clean, tamper-proof installation with no exposed electrical components.

Professional Features & Benefits

  • 8-Wire Configuration: Provides comprehensive connectivity for complex access control systems with minimal wiring complexity and maximum functionality.
  • Heavy-Duty Steel Construction: Engineered for demanding commercial applications with exceptional strength and long-term durability.
  • Concealed Bearing Design: Ensures smooth door operation while maintaining a clean aesthetic with no visible mechanical components.
  • Tamper-Proof Installation: No electrical parts are exposed when hinge is installed, providing secure integration for sensitive access control applications.
  • Full Mortise Design: Professional installation method that provides maximum strength and clean appearance for commercial door systems.
  • Continuous Current Conduction: Maintains electrical connection regardless of door position for reliable operation of connected electronic devices.
  • Permanent Fast Pin: Secure pin design prevents unauthorized removal while ensuring reliable long-term performance.
  • Complete Installation Package: Includes all machine screws and installation instructions for professional installation.

Technical Specifications

  • Bearing Type: Concealed Bearing
  • Commercial/Residential: Commercial
  • Corner Style: Square Corners
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: Yes
  • Hinge Type: Electrified
  • Knuckles: 3
  • Lock Type: Mortise
  • Number of Wires: 6
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: CECB1901R-56
  • Product Subgroup: Electrified Hinges
  • Product Type: Electrified Hinges
  • Series: Electrified Hinges
  • Subcategory: Hinges

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm current capacity for connected devices before proceeding with installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures throughout the process.
  3. Install hinge in the center hinge location using manufacturer-provided templates to ensure proper alignment and door operation.
  4. Route and connect 8-wire configuration according to manufacturer wiring diagrams, using appropriate wire gauge and connections for the specific application.
  5. Use provided junction box for secure wire connections and ensure all electrical connections are properly insulated and protected.
  6. Restore power and test all functions including door operation, electrical continuity, and integration with connected access control devices.
  7. Complete final inspection and document wiring configuration. Refer to manufacturer documentation for complete installation specifications and troubleshooting procedures.

Professional Applications

  • Commercial Office Buildings with Access Control
  • Healthcare Facilities with Secure Areas
  • Educational Institution Security Systems
  • Government and Municipal Buildings
  • Industrial Facilities with Controlled Access
  • Multi-Tenant Commercial Properties
  • Retail Establishments with Electronic Security

Why Choose BEST Quality?

BEST electrified hinges deliver professional-grade reliability with heavy-duty steel construction engineered for demanding commercial applications. The concealed bearing design and tamper-proof installation ensure dependable performance in high-security environments where reliable access control integration is essential. Complete with installation hardware and comprehensive documentation for professional installation confidence.

Product Specs

Subcategory:
Hinges
Series:
Electrified Hinges
Hinge Type:
Electrified
Knuckles:
3
Bearing Type:
Concealed Bearing
Corner Style:
Square Corners
Product Group:
Door Hinges and Pivots
Product Subgroup:
Electrified Hinges
Product Type:
Electrified Hinges
Number of Wires:
6
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Mortise
Product Model:
CECB1901R-56
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

BEST BEST-CECB1901R-56LH-652-4.5x4.5-1 – Frequently Asked Questions

1) Do I need to specify handing when ordering the BEST CECB1901R electrified hinge?
Yes, handing has to be called out. The CECB1901R is built left-handed or right-handed, so determine the swing at the opening before ordering. An electrified hinge is not reversible in the field the way a plain butt hinge is, because the wire exit is cut for one side.
2) What size and finish does the BEST CECB1901R concealed bearing electrified hinge come in?
It is a 4-1/2 by 4-1/2 inch hinge in 652 satin chrome over steel, with square corners rather than radius. If the other hinges on your opening are 4-1/2 inch square corner, this drops into the same mortise pocket.
3) I only need to power a single electric strike - is there a lighter electrified hinge than the BEST CECB1901R-58?
Yes. The RCI 952 is a medium duty electrified hinge with 6-conductor wiring and ball bearing construction, and the Design Hardware ETW2-BB5 is a medium duty electrified ball bearing hinge in 4.5 inch by 4.5 inch. Both are lighter-duty than the BEST CECB1901R-58, which is built as a heavy duty commercial hinge with concealed bearings. A single strike or a simple monitored latch rarely needs eight conductors, so a six-conductor medium duty hinge covers it. Step up to the BEST heavy weight hinge when the door leaf is heavy, the traffic is high, or the opening carries an electrified lock plus monitoring that consumes more conductors.
4) What is the closest 8-wire equivalent to the BEST CECB1901R-58 electrified hinge?
The Detex EWH8 is the nearest match on the electrical side: it is a five knuckle electric hinge in 4.5 inch by 4.5 inch with an 8 wire configuration in a satin chrome finish, which lines up with the BEST CECB1901R-58 in 4.5 inch by 4.5 inch and 652 satin chrome. The mechanical build differs - the BEST hinge is a three knuckle full mortise hinge with concealed bearings and square corners, while the Detex uses a five knuckle barrel. If the access control run needs eight conductors and you are matching an existing five knuckle hinge pattern on the door, the Detex is the substitute; if the frame is prepped for a three knuckle heavy weight hinge, stay with the BEST.
5) Where in the door does an electrified hinge like the BEST CECB1901R get installed?
In the center hinge position. You install the electrified hinge at the middle location using the manufacturer template, and leave standard hinges top and bottom. The center position keeps the wire run short and the transfer away from the heaviest load points.
6) Is the BEST CECB1901R heavy enough for a high-traffic commercial door?
It is rated heavy duty for commercial use, with concealed bearings in a three knuckle full mortise body. That is the class you want on solid core or hollow metal doors in office, healthcare, school, and government openings that cycle all day.
7) Will any of the electrics show once the hinge is mounted?
No. The CECB1901R is a full mortise hinge with no electrical parts exposed after installation, and it uses a permanent fast pin so the pin cannot be pulled. That matters on secure-side openings where a surface power transfer would be an obvious target.
8) Does current keep flowing through the hinge when the door is open?
Yes. The hinge conducts continuously regardless of door position, so an electric strike, electrified mortise lock, or exit device stays powered through the full swing rather than only when closed.
9) What other electrified hinges should I look at in 4-1/2 inch satin chrome?
The Detex EWH8 is a five knuckle electric hinge in 4-1/2 by 4-1/2 inch satin chrome, so it matches the BEST CECB1901R on size and finish but uses a five knuckle barrel instead of three. Securitron's EH Double Duty electric hinge and the SDC PTH Series power transfer hinges are the other two families worth pricing against it.
10) Can I use this electrified hinge to power an electrified mortise lock?
That is the intended use. The CECB1901R carries current across the opening for electric locks, exit devices, and access control hardware, and the mortise lock prep is the common pairing. Confirm the conductor count and current draw of the lock against the hinge wiring before you commit the run.
11) What is the difference between a concealed bearing electrified hinge like the BEST CECB1901R-58 and a ball bearing one like the Design Hardware ETW2-BB5?
The difference is where the bearing sits in the knuckle. The BEST CECB1901R-58 uses concealed bearings, so no bearing race is visible between the knuckles and the barrel reads as a plain three knuckle hinge. The Design Hardware ETW2-BB5 and the RCI 952 are ball bearing hinges, where the bearing rings show at the knuckle joints. Electrically both styles carry conductors through the barrel; the choice is driven by the look you need on the opening and the weight class, since the BEST is a heavy duty unit and the ETW2-BB5 is standard weight medium duty.
12) For a high-cycle opening, should I specify the BEST CECB1901R-58 or an SDC PTH power transfer hinge?
The SDC PTH Series electrified power transfer hinges carry an 800,000 cycle rating, so on an entry that sees constant traffic and you need a published cycle figure for the submittal, the PTH is the one to put on the schedule. The BEST CECB1901R-58 is specified as a heavy duty commercial full mortise hinge with concealed bearings and a permanent fast pin, and it conducts current regardless of door position. Choose on what the spec sheet demands: a stated cycle count points to the SDC, a heavy weight three knuckle full mortise hinge with an eight wire run points to the BEST.
13) Is the Securitron EH electric hinge a drop-in replacement for the BEST CECB1901R-58?
Treat it as an alternative rather than a drop-in. The Securitron EH is a double duty electric hinge and serves the same purpose of transferring power through the hinge barrel, but the BEST CECB1901R-58 is ordered as a specific 4.5 inch by 4.5 inch three knuckle full mortise hinge with square corners in 652 satin chrome, and in left hand or right hand. Before swapping, confirm the replacement matches the existing mortise cutout size, corner radius, knuckle count and conductor count, since a mismatch on any of those means reworking the door and frame prep rather than a straight exchange.
14) Can I use a standard ball bearing hinge instead of the BEST CECB1901R-58 and run the wires separately?
Not interchangeably. The BEST CECB1901R-58 is an electrified hinge that conducts current through the hinge itself with no electrical parts exposed once installed, which is what keeps the transfer tamper resistant on an access control opening. A non-electrified hinge carries no conductors, so the power would have to move through a separate door loop or an electric power transfer. If you want a hinge-based transfer in a lighter build, the electrified options are peers like the RCI 952 with 6-conductor wiring or the Design Hardware ETW2-BB5 electrified ball bearing hinge, not a plain mechanical hinge.
15) Does the BEST CECB1901R come with mounting screws, or do I order those separately?
Machine screws and installation instructions ship with the hinge. What you supply is the low-voltage cable run, the connections at the junction box, and the power supply itself sized for whatever lock or device you are feeding.
16) Is there install documentation for the BEST CB1901R electrified hinge?
Yes. BEST publishes a three knuckle full mortise hinge sheet covering the CB1901R electric versions, a general hinge information guide, and a hinge installation instruction sheet. Pull the templates from those before you cut the frame or door.
