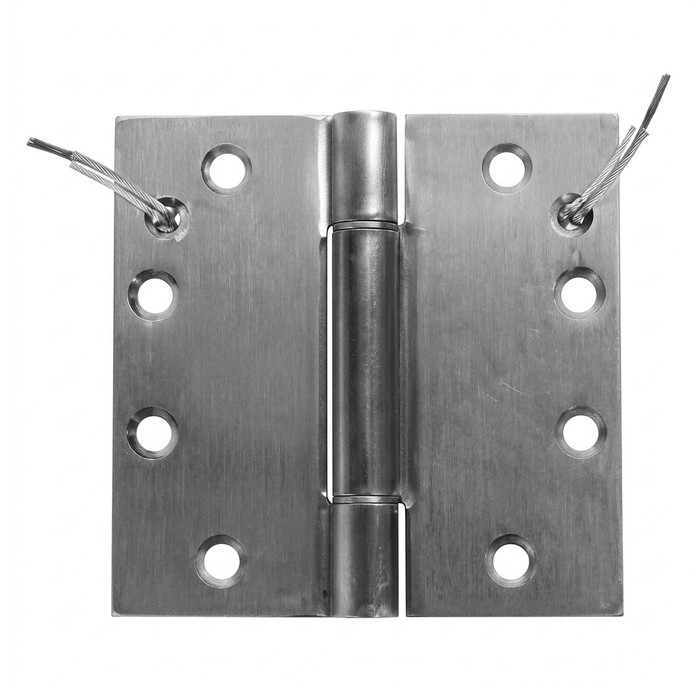

BEST CECB1961R-58 Stainless Steel Full Mortise Concealed Bearing Heavy Weight Electrified Hinge with 8 Wires

BEST CECB1961R-58 Stainless Steel Full Mortise Concealed Bearing Heavy Weight Electrified Hinge with 8 Wires

Professional Concealed Electric Hinge for Commercial Access Control

The BEST CECB1961R-58 is a heavy-weight electrified hinge engineered for commercial door applications requiring secure electronic integration. Constructed from stainless steel with concealed bearing design, this full mortise hinge features an 8-wire configuration for enhanced flexibility in access control systems. The concealed electric design conducts current regardless of door position while maintaining tamper-proof operation with no exposed electrical components when installed.

Professional Features & Benefits

• 8-Wire Configuration: Provides maximum flexibility for integrating electronic access control systems, locks, exit devices, and hold-open devices with enhanced signal capacity.
• Heavy-Duty Stainless Steel Construction: Superior strength and corrosion resistance for demanding commercial applications with long-term durability.
• Concealed Electric Design: Conducts current regardless of door position to electric locks, exit devices, or hold-open devices where tamper-proof operation is required.
• Full Mortise Installation: Professional mounting with concealed bearings ensures smooth operation and sleek appearance with no exposed electrical components.
• Access Control Integration: Transmits signals from code readers on doors to remote computers for comprehensive access control system compatibility.
• Tamper-Proof Security: Permanent fast pin design with concealed wiring prevents unauthorized access to electrical connections.
• Complete Installation Package: Packed with all machine screws and installation instructions for professional installation.
• Junction Box Compatible: Designed for use with junction box systems for proper electrical integration and code compliance.

Technical Specifications

• Bearing Type: Concealed Bearing
• Commercial/Residential: Commercial
• Corner Style: Square Corners
• Department: Door Hardware
• Duty Level: Heavy Duty
• Electronic: Yes
• Hinge Type: Electrified
• Knuckles: 3
• Lock Type: Mortise
• Number of Wires: 8
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: CECB1961R-58
• Product Subgroup: Electrified Hinges
• Product Type: Electrified Hinges
• Series: Electrified Hinges
• Subcategory: Hinges

Installation & Operation

1. Verify electrical requirements and confirm compatibility with existing access control systems before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Install hinge in the center hinge location using manufacturer-provided templates for proper mortise preparation and alignment.
4. Route 8-wire configuration through appropriate conduit to junction box location, ensuring adequate wire management and protection.
5. Connect wiring according to manufacturer wiring diagrams using proper wire gauge and connections for access control integration.
6. Test hinge operation and electrical continuity throughout full door swing to verify proper current conduction regardless of door position.
7. Complete final inspection of concealed wiring and mechanical operation. Refer to manufacturer documentation for complete installation specifications and system integration requirements.

Professional Applications

• Commercial Office Building Access Control
• Healthcare Facility Security Systems
• Educational Institution Electronic Access
• Government and Municipal Building Security
• Industrial Facility Controlled Access Points
• Multi-Tenant Residential Electronic Entry
• Retail Security and Loss Prevention Systems

Why Choose BEST Quality?

BEST electrified hinges deliver professional-grade reliability with heavy-duty stainless steel construction and concealed bearing design rated for demanding commercial applications. The tamper-proof permanent fast pin design with concealed wiring ensures secure operation while the 8-wire configuration provides maximum flexibility for complex access control integrations. Engineered for commercial environments where dependable electronic hardware performance is essential.
