BEST FBB163 Steel Half Surface Ball Bearing Heavy Duty Hinge with Removable Pin

BEST FBB163 Steel Half Surface Ball Bearing Heavy Duty Hinge with Removable Pin

(No reviews yet) Write a Review

Model: BEST-FBB163-652-4.5
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$76.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

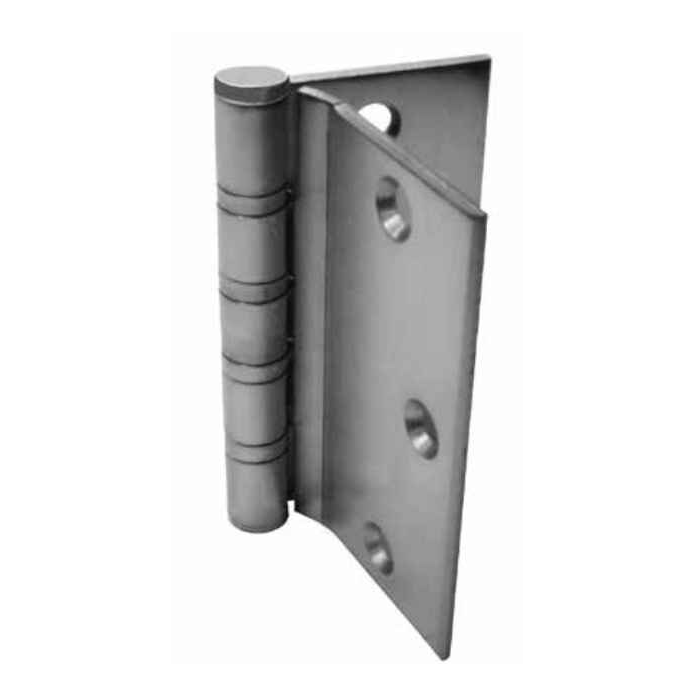

BEST FBB163 Steel Half Surface Ball Bearing Heavy Duty Hinge with Removable Pin

Professional Heavy-Duty Hinge Solution for Commercial Applications

The BEST FBB163 is a heavy-duty steel hinge engineered for half-surface installation on heavy weight doors and high-frequency applications. This commercial-grade hinge features four permanently lubricated non-detachable ball bearings for smooth, effortless operation and is designed for wood or mineral core doors with edge rails that won't hold screws when hung on hollow metal frames. The removable pin design allows for easy installation, adjustment, and removal as needed, making it ideal for demanding commercial and industrial environments.

Professional Features & Benefits

  • Heavy-Duty Ball Bearing Operation: Four permanently lubricated non-detachable ball bearings provide smooth operation and maximum friction reduction for heavy doors.
  • Removable Pin Design: Allows for easy installation, adjustment, and removal without disturbing the door frame mounting.
  • Heavy Weight Construction: Heavy weight gauges increase available bearing surface area for maximum friction reduction and extended service life.
  • Specialized Door Compatibility: Designed for heavy or high frequency wood, or mineral core doors with edge rails that won't hold screws hung on hollow metal frames.
  • Stainless Steel Pins: Non-ferrous hinges feature stainless steel pins for enhanced corrosion resistance and durability.
  • Reversible Design: Flush tips and pins are reversible for flexible installation options and hand configurations.
  • Complete Hardware Package: Packed with machine screws and grommet nuts for 1 3/4" doors for convenient installation.
  • Optional Hospital Tips: Hinges can be furnished with hospital tips (HT) for specialized healthcare applications.

Technical Specifications

  • Bearing Type: Ball Bearing
  • Commercial/Residential: Commercial
  • Corner Style: Square Corners
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Hinge Pin Type: Removable
  • Hinge Type: Half Surface
  • Knuckles: 5
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: FBB163
  • Product Subgroup: Surface and Mortise Hinges
  • Product Type: Half Surface Hinges
  • Series: Architectural Hinges
  • Subcategory: Hinges

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST hinges deliver professional-grade reliability with heavy-duty steel construction and permanently lubricated ball bearing systems designed for demanding commercial applications. The heavy weight gauges and specialized design for difficult door/frame combinations ensure dependable performance where standard hinges may fail. Engineered for commercial and industrial environments where robust support and operational flexibility are essential.

Product Specs

Subcategory:
Hinges
Series:
Architectural Hinges
Hinge Type:
Half Surface
Knuckles:
5
Bearing Type:
Ball Bearing
Corner Style:
Square Corners
Product Group:
Door Hinges and Pivots
Product Subgroup:
Surface and Mortise Hinges
Product Type:
Half Surface Hinges
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Hinge Pin Type:
Removable
Product Model:
FBB163
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

BEST BEST-FBB163-652-4.5 – Frequently Asked Questions

1) What is a half surface hinge and when do I need one instead of a full mortise hinge?
A half surface hinge like the BEST FBB163 mortises into the frame on one leaf and screws to the face of the door on the other. That matters when the door edge won't hold screws: BEST calls this out for heavy or high frequency wood and mineral core doors with edge rails that won't take fasteners, hung on hollow metal frames. If your door edge is solid and takes screws normally, a full mortise hinge is the usual choice, and the Hager 1191 full mortise 5 knuckle or the 3 knuckle Hager 800 covers that. There is also a half mortise arrangement, the reverse of this one (mortised into the door, surface applied to the frame), which is what the Hager BB1109 is.
2) What sizes does the BEST FBB163 hinge come in?
Two sizes, 4-1/2 x 4-1/2 inches and 5 x 5 inches, both in 652 satin chrome over steel. The 5 x 5 is the one to reach for on wider or heavier leaves; 4-1/2 is the common size on a standard 1-3/4 inch commercial door. Screws and grommet nuts supplied with the hinge are sized for 1-3/4 inch doors.
3) Do I have to specify a hand when ordering the BEST FBB163?
No. The flush tips and pins are reversible, so one hinge covers either hand. Order by size and finish, not by handing.
4) Will the BEST FBB163 match the square corner hinge prep already routed in my frames?
Square corners, so it drops into a square cut mortise. Frames and doors routed with a radius corner will need the corners squared with a chisel, or you need a radius corner hinge instead. Check what is already in the jamb before you order, because corner style is the one thing that will not let a hinge sit flat.
5) My door edges are chewed up and won't hold hinge screws anymore. Can I fix that without replacing the doors?
That is exactly the case the BEST FBB163 is built for. Because the door leaf of a half surface hinge screws to the face of the door rather than into the edge, a stripped or failed edge rail stops being the problem. BEST specifies it for heavy or high frequency wood and mineral core doors whose edge rails won't hold screws, hung on hollow metal frames. Machine screws and grommet nuts come with it for 1-3/4 inch doors, so the surface leaf through bolts the door rather than relying on wood threads.
6) What is the difference between the BEST FBB163 and the Hager 1173 half surface hinge?
Both are half surface hinges with a 5 knuckle barrel, so they hang the same way: the leaf mounts to the face of the door and the other leaf mortises into the frame. The difference is the bearing. The FBB163 is a ball bearing hinge with four permanently lubricated non-detachable ball bearings and is rated heavy duty. The Hager 1173 is a plain bearing hinge in a 4-1/2 inch steel commercial grade and is rated medium duty. On a heavy or high frequency wood or mineral core door, the ball bearing version is the one built for that cycle count; on a lighter interior door with normal traffic, the plain bearing 1173 covers the same mounting condition.
7) Is the Hager BB1109 half mortise hinge a substitute for the BEST FBB163?
It is not a drop in swap, even though both are ball bearing hinges. Half surface and half mortise are opposite preps. The FBB163 is a half surface hinge, which surface mounts to the door face and mortises into the frame, for doors whose edge rails will not hold screws. The Hager BB1109 is a half mortise ball bearing hinge in standard weight with a 5 knuckle barrel, rated medium duty, which mortises into the door edge and surface mounts to the frame. The BB1109 is the correct choice when the frame is the member that will not take a mortise and the door edge will; the FBB163 is the correct choice for the reverse condition. The FBB163 is also heavy duty rather than medium duty.
8) Does the FBB163 hinge come with mounting screws, or do I need to order fasteners separately?
Fasteners are in the box. The FBB163 ships with machine screws and grommet nuts sized for 1-3/4 inch doors, which is what the surface applied leaf needs to through bolt the door face. Plan separately if your doors are a non standard thickness, since the supplied grommet nuts are cut for 1-3/4.
9) Can I get the FBB163 with hospital tips for a healthcare job?
Yes, hospital tips are available as an HT option on the FBB163. That is the sloped tip that keeps gowns, IV lines and linens from catching on the knuckle, and it is a common requirement on patient room and corridor doors. Ask for the HT variation when you place the order; the standard build ships with flush tips.
10) I need a half surface hinge but the door isn't heavy. What's a lighter option than the BEST FBB163?
The Hager 1173 is the half surface alternative for lighter work, a 4-1/2 inch steel 5 knuckle hinge in plain bearing, medium duty. It hangs the same way as the FBB163, mortised to the frame and surface applied to the door face, so the prep logic is the same. Step up to the FBB163 when the door is heavy or the opening is high frequency, since that is where the ball bearings and heavy weight gauge earn their place.
11) Can I pull a door off its hinges without unscrewing the FBB163 from the frame?
Yes. The FBB163 uses a removable pin, so you drive the pin out and lift the leaf away with both hinge leaves still fastened in place. That is the difference between a ten minute door swap and re-drilling a frame, and it is why maintenance crews prefer it on doors that come off for repairs or moves. Note that a removable pin is not a security pin: on an out swinging exterior opening, the pin is accessible from outside.
12) Which hinge should I standardize on for a healthcare corridor with heavy traffic?
For a high frequency opening, the BEST FBB163 is the heavy duty option in the group: ball bearing construction with four permanently lubricated non-detachable ball bearings, heavy weight gauges that increase bearing surface area, a removable pin, and square corners, in 4-1/2 by 4-1/2 inch and 5 by 5 inch sizes in 652 satin chrome steel. It can also be furnished with hospital tips for healthcare work. The comparable ball bearing option, the Hager BB1109, is a half mortise hinge in standard weight rated medium duty, and the plain bearing Hager 1173, 1191 and 800 are built without the bearing races that carry repeated cycling. Confirm which member of the opening takes the mortise before you lock in a standard, since the FBB163 assumes the frame does.
13) I need a simpler hinge for a light interior door. What is the alternative to the FBB163?
The FBB163 is built for heavy or high frequency doors, with heavy duty ball bearing construction and five knuckles. On a light interior door in a standard weight frame prep, the Hager 800 is the plainer option: a full mortise plain bearing hinge with a 3 knuckle standard weight barrel, rated medium duty. The Hager 1191 sits between them as a full mortise plain bearing hinge in standard weight with a 5 knuckle barrel. Note that both are full mortise, so they need a door edge that will take a mortise and screws, which is exactly the condition the half surface FBB163 exists to work around.
14) Is the FBB163 a 5 knuckle hinge, and does that matter for matching my other doors?
Five knuckles, which is the standard commercial architectural pattern and what most existing hinges on a commercial opening will show. For a property manager standardizing a building, that means the FBB163 reads visually the same across openings as the other 5 knuckle hinges in the stock, including the Hager 1191 full mortise and Hager 1173 half surface, so you can mix hinge types by door condition without the doors looking mismatched.
