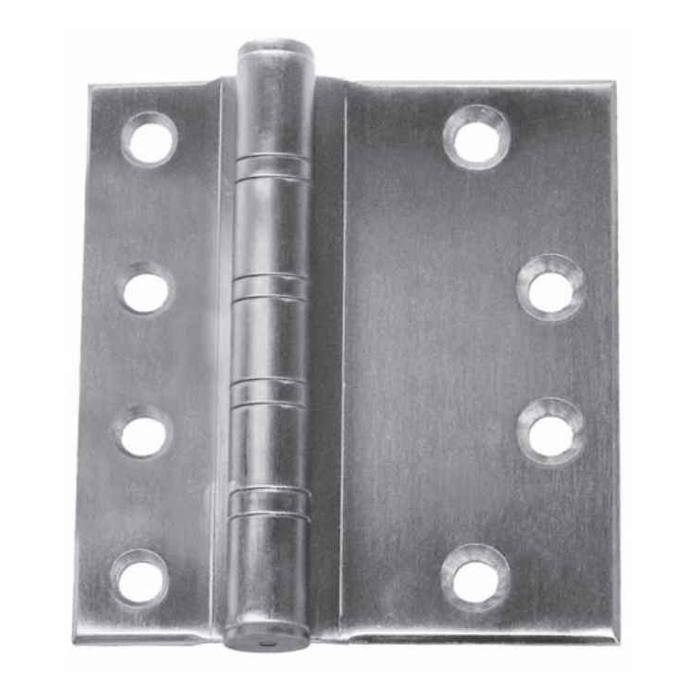

BEST FBB169NRP Steel Full Surface Ball Bearing Heavy Duty Hinge with Non-Removable Pin

BEST FBB169NRP Steel Full Surface Ball Bearing Heavy Duty Hinge with Non-Removable Pin

(No reviews yet) Write a Review

Model: BEST-FBB169NRP-600-4.5
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$63.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST FBB169NRP Steel Full Surface Ball Bearing Heavy Duty Hinge with Non-Removable Pin

Professional Heavy-Duty Hinge Solution for Commercial Applications

The BEST FBB169NRP is a robust steel full surface ball bearing hinge engineered for heavy-duty commercial and industrial applications. This 5-knuckle hinge features a non-removable pin design that enhances security and prevents unauthorized removal or tampering. Equipped with four Stanley permanently lubricated non-detachable ball bearings, it provides smooth and quiet operation while reducing friction and wear over time. Designed for heavy or high frequency mineral core or wood doors with edge rails that won't hold screws, this hinge is ideal for doors hung on channel iron frames.

Professional Features & Benefits

  • Heavy-Duty Construction: Heavy weight gauges increase available bearing surface area for maximum friction reduction and extended service life.
  • Advanced Ball Bearing System: Four Stanley permanently lubricated non-detachable ball bearings ensure smooth, quiet operation and reduced maintenance requirements.
  • Enhanced Security Design: Non-removable pin construction prevents unauthorized removal or tampering, making it ideal for security-sensitive applications.
  • Specialized Door Compatibility: Engineered for heavy or high frequency mineral core or wood doors with edge rails that won't hold screws, hung on channel iron frames.
  • Professional Installation Package: Packed with machine screws and grommet nuts specifically for 1-3/4" doors for complete installation readiness.
  • Versatile Configuration Options: Available with inline hole pattern for tubular doors and compatible with back plates for enhanced mounting strength.
  • Commercial-Grade Durability: Square corner design and heavy-duty construction rated for commercial applications and high-frequency use.

Technical Specifications

  • Bearing Type: Ball Bearing
  • Commercial/Residential: Commercial
  • Corner Style: Square Corners
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Hinge Pin Type: Non-Removable
  • Hinge Type: Full Surface
  • Knuckles: 5
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: FBB169NRP
  • Product Subgroup: Surface and Mortise Hinges
  • Product Type: Full Mortise Hinges
  • Series: Architectural Hinges
  • Subcategory: Hinges

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, frame type, and mounting surface compatibility for full surface installation.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, ensuring proper alignment for smooth operation.
  3. Prepare door and frame by drilling required holes per manufacturer specifications, using appropriate drill bits for steel construction.
  4. Install mounting hardware using provided machine screws and grommet nuts, securing the hinge to door and frame per manufacturer torque specifications.
  5. Adjust hinge alignment for proper door operation, ensuring smooth movement throughout the full range of motion without binding or excessive play.
  6. Test hinge operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Industrial and Warehouse Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • High-Traffic Commercial Entrances

Why Choose BEST Quality?

BEST hinges deliver professional-grade reliability with heavy weight steel construction and permanently lubricated ball bearing systems designed for demanding commercial applications. The non-removable pin design and specialized mounting hardware ensure both security and dependable performance in high-traffic environments. Engineered for heavy-duty use where consistent operation and enhanced security are essential.

Product Specs

Subcategory:
Hinges
Series:
Architectural Hinges
Hinge Type:
Full Surface
Knuckles:
5
Bearing Type:
Ball Bearing
Corner Style:
Square Corners
Product Group:
Door Hinges and Pivots
Product Subgroup:
Surface and Mortise Hinges
Product Type:
Full Mortise Hinges
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Hinge Pin Type:
Non-Removable
Product Model:
FBB169NRP
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

BEST BEST-FBB169NRP-600-4.5 – Frequently Asked Questions

1) When should I use a full surface hinge like the BEST FBB169NRP instead of a full mortise hinge?
Full surface is the answer when the door edge won't hold screws and the frame is channel iron. The FBB169NRP mounts on the face of both door and frame, so it suits heavy or high frequency mineral core or wood doors with edge rails that won't take fasteners, hung on channel iron frames. If you have a standard hollow metal frame and a door edge that will hold screws, a full mortise hinge is the normal choice there instead, such as the Stanley Security CB199 heavy weight full mortise or the McKinney TCA3386 heavy weight full mortise.
2) What door thickness is the FBB169NRP hardware packed for?
It ships with machine screws and grommet nuts sized for 1-3/4 inch doors, which is the standard commercial door thickness. On a door of another thickness you'd need different length machine screws, since the grommet nut has to draw up through the leaf on both faces.
3) Is the FBB169NRP hinge secure enough for an out-swinging exterior door?
The pin is non-removable, so it can't be driven out from the hinge side with the door closed. That is the feature you want on an out-swing opening where the barrel is exposed. It is a commercial rated hinge with a square corner leaf.
4) I need a heavy weight ball bearing hinge but my door is a normal mortise prep. What else do you carry?
For a standard mortise prep at 4-1/2 by 4-1/2, the McKinney TCA3386 is a heavy weight square corner five knuckle full mortise hinge. The Stanley Security CB199 is a heavy weight full mortise with concealed bearings if you want the bearings hidden in the barrel. If the door has to clear a thick trim or reveal, the Hager WTBB1168 is a 4-1/2 by 6 inch wide throw heavy weight five knuckle option.
5) I need a hinge that carries power to an electrified lock. Does the FBB169NRP do that?
No. The FBB169NRP is a mechanical full surface hinge with a non-removable pin and no wiring provision. For a powered opening, the ACSI 5BB1 is a 5 knuckle ball bearing full mortise hinge, 4-1/2 inch by 4-1/2 inch, with concealed electric through-wire using 4 wires at 28 gauge, for feeding an electric strike, electrified lockset, or monitoring device through the hinge.
6) What heavy weight hinge should I use if the door is mortised for hinges instead of surface applied?
The BEST FBB169NRP is a full surface hinge, meaning both leaves mount on the face of the door and frame rather than into mortised pockets. If the door and frame are already prepped with 4-1/2 inch by 4-1/2 inch mortises, the McKinney TCA3386 is a square corner 5 knuckle full mortise hinge in 4-1/2 inch by 4-1/2 inch, heavy weight. The Hager WTBB1168 is a heavy weight 5 knuckle full mortise ball bearing hinge as well, in a 4-1/2 inch by 6 inch wide throw size for openings that need the door to clear trim when swung.
7) What size and finish does the BEST FBB169NRP full surface hinge come in?
It is supplied 4-1/2 by 4-1/2 inches in finish 600, primed for painting. Primed means you or the painter top-coat it to match the frame, which is common on channel iron and painted steel openings.
8) Will this hinge hold up on a high traffic entrance that gets constant use?
Yes. Heavy duty rated with four Stanley permanently lubricated non-detachable ball bearings and heavy weight gauges that increase bearing surface area to cut friction. The five knuckle build is what you'd standardize on for high frequency entrances, classrooms, and healthcare corridors.
9) Are there mounting options for the FBB169NRP on tubular doors or where the door face needs reinforcing?
An inline hole pattern version is offered for tubular doors, and the hinge works with back plates when you need added mounting strength on a weak door face. Specify the inline pattern at time of order if the door stiles are tubular.
10) Can I use a standard duty ball bearing hinge instead on a lower traffic door?
The FBB169NRP is a heavy duty commercial hinge intended for heavy or high frequency doors. On an interior opening that does not see that cycle count, standard duty ball bearing options include the Don-Jo BB74545, a 4-1/2 inch by 4-1/2 inch steel square corner 5 knuckle full mortise hinge, the Don-Jo BB94545 in stainless steel with square corners, and the Don-Jo BB84545 in brass with a satin chrome finish. All three are full mortise, so they require hinge pockets rather than surface mounting.
11) Is there a heavy weight hinge with the bearings hidden instead of visible between the knuckles?
The BEST FBB169NRP uses an exposed ball bearing knuckle arrangement. If you want the bearing concealed within the barrel for a cleaner look on visible openings, the Dormakaba CB199 is a full mortise concealed bearing heavy weight hinge in the same Architectural Hinges series. Note the CB199 is full mortise, so the door and frame need hinge pockets, while the FBB169NRP mounts to the door and frame faces.
12) Are plain bearing hinges a substitute for the FBB169NRP?
Not on a heavy or high frequency door. The FBB169NRP is a ball bearing hinge, which is what carries weight and cycles on those openings. Plain bearing models such as the Hager 1279, a medium duty 5 knuckle full mortise commercial hinge, and the Hager 1541, a 5 knuckle stainless steel full mortise residential hinge, run without ball bearings and are built for lighter service. The Hager 1260 is a heavy duty plain bearing 5 knuckle hinge, but it is a swing clear design meant to move the door fully out of the opening for clear width.
13) My existing mortise hinge is 4-1/2 by 4 inches. Will the FBB169NRP drop in?
No. The FBB169NRP is a full surface hinge in 4-1/2 inch by 4-1/2 inch, so it fastens through the face of the door and frame rather than into an existing 4-1/2 by 4 inch mortise pocket. For that pocket, the Don-Jo BB74540 is a full mortise ball bearing hinge at 4-1/2 inch by 4 inch in satin chrome.
14) Ball bearing or plain bearing for a heavy commercial door?
Ball bearing, and that is what the FBB169NRP uses, with four permanently lubricated non-detachable bearings for quiet low friction swing under load. Plain bearing hinges like the Hager 1279 (medium duty) or the residential Hager 1541 are for lighter doors and lower cycle counts. The Hager 1260 is a plain bearing swing clear hinge, which is a different job again, used to gain full clear opening width.
15) What is the closest concealed bearing option if the door is not heavy duty?
The Stanley Security CB1960R is a full mortise concealed bearing standard weight hinge, medium duty, in the same Architectural Hinges series as the FBB169NRP. It suits interior openings that do not need the heavy weight gauges and exposed ball bearing knuckles of the FBB169NRP, and it mortises into the door and frame rather than mounting to the face.
16) Do the Don-Jo and McKinney ball bearing hinges have square corners like the BEST FBB169NRP?
Yes on several of them. The FBB169NRP has square corners. The Don-Jo BB74545 is a square corner 5 knuckle steel hinge at 4-1/2 inch by 4-1/2 inch, the Don-Jo BB94545 is square corner stainless steel, and the McKinney TCA2314 and TCA2317 are both square corner 5 knuckle full mortise hinges at 4-1/2 inch by 4-1/2 inch. Corner style matters only for the mortise cut on those models, since the FBB169NRP mounts to the face of the door and frame instead.
