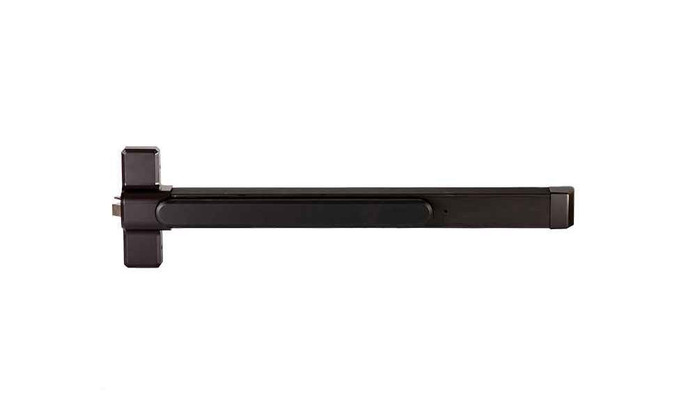

Stanley Security Grade 1 Heavy-Duty Rim Exit Device with Cylinder Dogging and Request-to-Exit Function
The Stanley QED112X is an ANSI/BHMA A156.3 Grade 1 heavy‑duty rim exit device featuring cylinder dogging combined with a Request‑to‑Exit (X) function, making it ideal for high‑traffic commercial applications that require both secure emergency egress and controlled access. Available in standard 36″ (3 ft) and 48″ (4 ft) lengths, it is offered in finishes like Bright Brass (605), Satin Chrome (626), and Duranodic Bronze (313AN)
Built with a thru‑bolted trim design, this device ensures exceptional structural integrity and installation security. While the unit itself is not fire-rated, fire-rated options are available within the broader QED100 series
Specifications
| Specification | Details |
|---|---|
| Model Series | QED112X (Version with Request‑to‑Exit) |
| Certification | ANSI/BHMA A156.3 Grade 1 |
| Device Type | Rim exit device with cylinder dogging + Request‑to‑Exit (X) function |
| Lengths Available | 36″ (3 ft) and 48″ (4 ft) |
| Finish Options | Bright Brass (605/US3), Satin Chrome (626/US26D), Duranodic Bronze (313AN) |
| Material | Brass or Bronze base |
| Fire Rating | Not fire-rated (series includes fire-rated variants) |
| Trim | Not included; compatible with QED100 series trims |
| Construction | Thru-bolted trim design for enhanced durability |
| Accessories | Compatible with electrified options (LRX, EDX, etc.) across QED100 series |
| Warranty | Lifetime (mechanical), 3 years (finish), 1 year (electrical) for QED100 series |
Features
-
High Performance: Meets the highest ANSI/BHMA Grade 1 standard for durability and reliability.
-
Enhanced Control: Incorporates a “Request-to-Exit” functionality in addition to cylinder dogging—ideal for controlled environments like schools, hospitals, or offices.
-
Modular Design: Fully compatible with the broader QED100 series, allowing seamless aesthetic and functional integration across different hardware components.
-
Robust Construction: Thru-bolted trim enhances security and longevity, especially in high-use environments.
-
Design Flexibility: Multiple finishes and lengths available, enabling matching to facility aesthetics and door sizes.
Manufacturer Resources
Product Specs
- Series:
- QED
- Grade:
- Grade 1
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Devices Trim
- Product Type:
- Cylindrical Locks
- Commercial/Residential:
- Commercial
- Lock Type:
- Exit Device Trim
- Product Attribute:
- Exit Devices Trim
- Product Function:
- Office/Privacy/Apartment
- Product Function:
- Classroom/Storeroom
- Cylinder Classification:
- Conventional Cylinder
- Product Category:
- Electronic Locks
