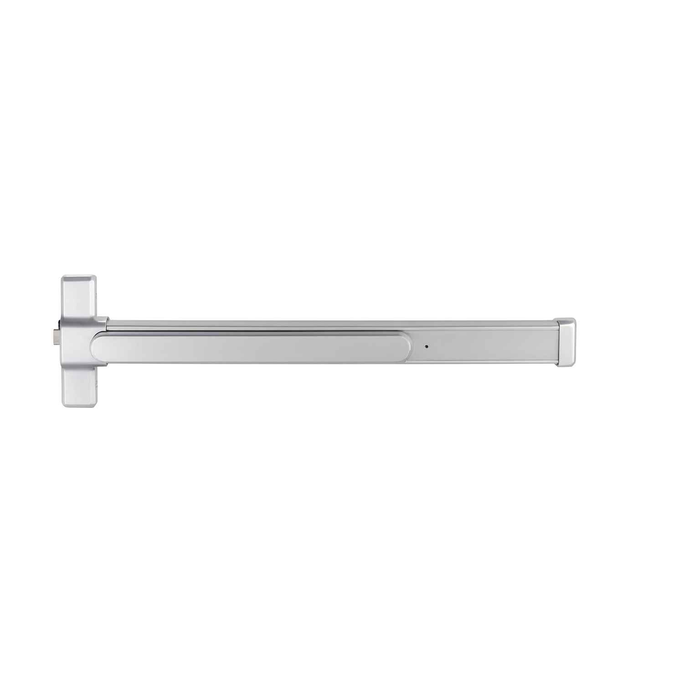

Stanley Security Grade 1 Heavy-Duty Exit Device, Rim Type, with Hex Dogging, Electric Dogging, and Request-to-Exit (RX) Function

Stanley Security Grade 1 Heavy-Duty Exit Device, Rim Type, with Hex Dogging, Electric Dogging, and Request-to-Exit (RX) Function

(No reviews yet) Write a Review

Model: QED111EDX 36 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,122.00
$1,921.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Stanley Security Grade 1 Heavy-Duty Exit Device, Rim Type, with Hex Dogging, Electric Dogging, and Request-to-Exit (RX) Function

The Stanley QED111EDX commercial hardware heavy-duty exit device series to accommodate the widest range of uses. With plenty of device types, functions, and options available, you can use the QED100 in more applications. It has features like thru-bolt design and available options like hurricane compliance and fire rating so that you can trust the security, strength, and durability of these exit devices no matter which trim, finish, or configuration option you choose. This is compatible with other STANLEY Commercial Hardware components so you can design a visually cohesive, complete access control solution. This Series heavy duty exit devices has been Certified to ANSI/BHMA A156.3 Series - Grade 1

Electrified Dogging: Electrified Dogging (ED) allows continuous latch retraction and dogging simultaneously. ED requires first time mechanical activation after which the push bar will continuously hold the push bar and latch retracted. When power is removed or interrupted from the device, the latch bolt will extend and push bar will release.

Features

  • Handing: Non-handed

  • Device Type: Rim exit device

  • Device Length: 36", 48"

  • Electric Options: Electrified dogging

  • Dogging: Hex key dogging

  • Trim: Not included

  • Fire Rating: Non-fire rated

  • Rim Latch Bolt: Stainless steel, 3/4" (19 mm) standard

  • Fasteners: Wood screws, machine screws, and sex bolts included

  • Door Thickness: Standard 1-3/4" (44.5 mm)

  • Latch Bolt Throw: Stainless steel, 3/4" (19 mm)

  • Standard Backset: 2-7/16" (62 mm) to face of door stop

  • Thru-Bolted Trim Design: Increases security and durability

Manufacturer Resources

Product Specs

Series:
QED
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices Trim
Product Type:
Cylindrical Locks
Commercial/Residential:
Commercial
Lock Type:
Exit Device Trim
Product Attribute:
Exit Devices Trim
Product Function:
Classroom/Storeroom
Product Function:
Office/Privacy/Apartment
Cylinder Classification:
Conventional Cylinder
Product Category:
Electronic Locks
Department:
Door Hardware

Stanley Security QED111EDX 36 626 – Frequently Asked Questions

1) Will the Stanley QED111EDX rim exit device fit a 36 inch wide door?
Yes. The QED111EDX comes in two device lengths: a 36 inch device that can be field sized down to a 32 inch door, and a 48 inch device that field sizes down to a 36 inch door. So for a 36 inch leaf you want the 48 inch device and cut it to size during install.
2) What door thickness does the Stanley QED111 exit device mount on?
It is set up for standard 1-3/4 inch (44.5 mm) commercial doors. The trim mounts thru-bolted, which is what carries the pull load into the door rather than into the face screws.
3) Will this Stanley rim device latch into the strike I already have on the frame?
The QED111 uses a stainless steel rim latch bolt with a 3/4 inch (19 mm) throw and a 2-7/16 inch (62 mm) backset measured to the face of the door stop. If your existing rim strike was set for that same backset and throw it will pick up; if the old device was a different backset, plan on a new strike and frame prep.
4) How does electrified dogging work on the Stanley QED exit device, and what happens if the power drops?
Electrified dogging (ED) holds the push bar and latch retracted continuously once the device gets a first mechanical activation. Cut or lose power and the latch bolt extends and the push bar releases, so the door secures itself on a power failure. It also has hex key dogging for mechanical push-and-hold when you just want the door on free entry without wiring.
5) Does the Stanley QED111EDX come with outside trim?
No, trim is not included. You order the lever or pull separately depending on the function you want on the outside, and the device supports classroom/storeroom and office/privacy/apartment functions. Fasteners are covered: wood screws, machine screws and sex bolts ship with the device.
6) My opening is fire rated. Is the Stanley QED111EDX the right exit device?
No. The QED111EDX is a non-fire-rated rim exit device, and it also carries hex key dogging, which is a mechanical hold-down not used on fire doors. For a labeled opening you need a fire-rated exit device with no mechanical dogging. Where the QED111EDX does fit is a non-rated commercial opening that needs continuous latch retraction: its electrified dogging holds the push bar and latch retracted after a first mechanical activation, and releases the latch bolt when power is removed or interrupted.
7) I need card or code access on an exit device door. Does the Stanley QED111EDX do that by itself?
No. The QED111EDX is a mechanical rim exit device with electrified dogging and an RX switch, and it ships without trim, so the credential side has to come from separate outside hardware. Two Grade 1 exit trims cover that: the Schlage CO-100-993M-70-KP is a standalone electronic mortise exit device trim with a keypad reader in classroom/storeroom function, and the Schlage XE360EW22S is a wireless trim with a Bluetooth and NFC mobile reader plus an interior pushbutton LED indicator for the Von Duprin 22 SVR. Both are listed for 1-3/4 inch doors, which matches the QED111EDX standard door thickness.
8) What is the difference between the Stanley QED111EDX rim exit device and the Schlage XE360EW22S exit trim?
They are two different halves of an opening. The Stanley QED111EDX is the rim exit device itself - a Grade 1 non-handed push bar with a 3/4 inch stainless steel latch bolt, hex key dogging, electrified dogging and request-to-exit signaling, supplied without trim. The Schlage XE360EW22S is a Grade 1 exit trim only, with a Bluetooth and NFC mobile reader and an interior pushbutton LED indicator, built for the Von Duprin 22 SVR device. If you need credential reading on the outside of the door, the trim is what provides it; if you need the latching and egress hardware on the push side, that is the QED111EDX.
9) Does a rim exit device work on a pair of doors?
A rim device latches into a strike on the frame or stop, so on a pair of doors it needs a mullion (removable or fixed) to latch against. If you need a clear opening with no mullion, a surface vertical rod device is the type to use instead, since it latches top and bottom. On a single door the QED111 rim device is the simpler install.
10) Do I need to specify handing for the Stanley QED111 rim device?
No handing to call out. The QED111 rim device is non-handed, so one part number covers left and right hand openings.
11) What cylinder does the Stanley QED exit device take?
It is built around a conventional cylinder rather than an interchangeable core, so if you are keying it into an existing building master system, spec a conventional mortise or rim cylinder in your keyway to match the trim you order.
12) Can I tie the Stanley QED111EDX into an access control system for door monitoring?
Yes. The device carries a request-to-exit (RX) function, which signals the access control panel when someone pushes the bar so the system does not read a legitimate egress as a forced door. Combined with electrified dogging you get scheduled free entry during business hours and automatic relatch when power is cut.
13) For an access-controlled opening, should I choose a keypad trim or a mobile-credential trim?
Both are Grade 1 and both list a 1-3/4 inch door thickness. The Schlage CO-100-993M-70-KP is a standalone electronic mortise exit device trim with a keypad reader, so entry codes are entered at the door with no network required. The Schlage XE360EW22S is a wireless trim that reads Bluetooth and NFC mobile credentials and has an interior pushbutton with LED indicator. The CO-100 is specified for a mortise exit device; the XE360EW22S is specified for the Von Duprin 22 SVR, so confirm which device is already on the opening before choosing. If the device is the Stanley QED111EDX rim exit device, neither trim is a match to its rim prep.
14) Will the Schlage CO-100-993M-70-KP trim work with the Stanley QED111EDX?
Plan on no. The CO-100-993M-70-KP is an electronic exit device trim built for a mortise exit device, while the QED111EDX is a rim type device with a 2-7/16 inch backset to the face of the door stop and a 3/4 inch rim latch bolt. Rim and mortise devices use different door prep and different trim interfaces. The Stanley device is described as compatible with other STANLEY Commercial Hardware components, so for a cohesive assembly the rim trim should come from the QED family.
15) Which of these is the choice for a classroom or storeroom function opening?
The Stanley QED111EDX is offered in classroom/storeroom as well as office/privacy/apartment function, so the device side can be specified either way. On the trim side, both the Schlage CO-100-993M-70-KP and the Schlage XE360EW22S are listed in classroom/storeroom function at Grade 1. The deciding factor is the device prep and the credential method rather than the function label: the CO-100 pairs with a mortise exit device and reads a keypad, the XE360EW22S pairs with the Von Duprin 22 SVR and reads mobile credentials.
16) What finishes does the Stanley QED111EDX exit device come in?
Three: 626 satin chrome, 605 bright brass, and 313AN anodized duranodic bronze. All three are offered in both the 36 inch and 48 inch device lengths, so you can standardize a building on one finish across different door widths.
