Stanley Security QCL200 Cylind...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$249.00
$208.37

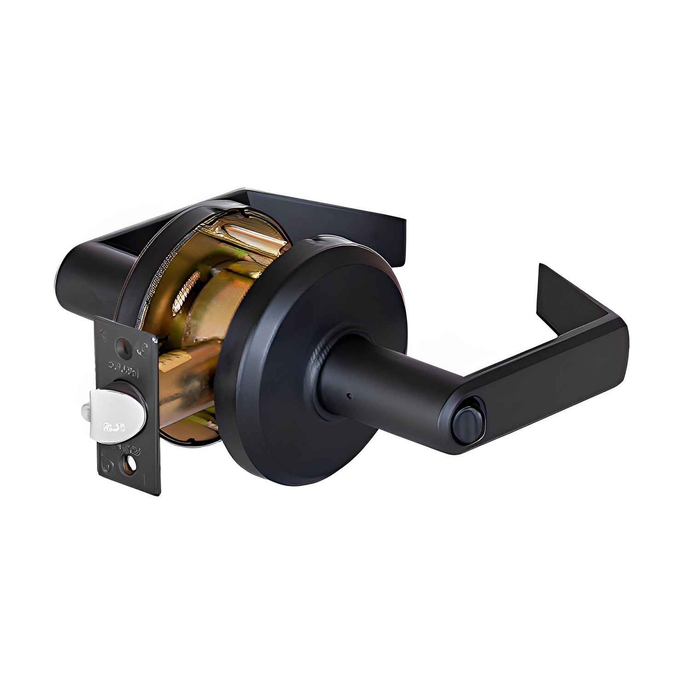

Stanley Security QCL200 Cylindrical Lock, Keyed Different and SC Keyway with 118F ANSI 1-1/8" x 2-3/4" Strike

Stanley Security QCL200 Cylindrical Lock, Keyed Different and SC Keyway with 118F ANSI 1-1/8" x 2-3/4" Strike

(No reviews yet) Write a Review

Model: DORQCL200
$249.00
$208.37
Selected Finish is
Selected Lever Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$249.00
$208.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dormakaba QCL200 Cylindrical Lock

QCL200 standard-duty cylindrical lock series provides a better solution for light commercial applications. Designed for quick installation, easy retrofit, longer performance life, and vandal resistance, the QCL200 series offers a better initial value and significant long-term savings. Our QCL200 series cylindrical locks combine quality, performance, and value—and are backed by the name more people trust with their security.



Features:

  • Designed for Security
    • With features like thru bolt design, clutching mechanisms, and fire-rated latches—plus an available hurricane compliant option—QCL200 series locks ensure the utmost security.
  • Backed by a Leading Warranty
    • The QCL200 lock series comes with lifetime mechanical, three-year finish, and one-year electrical warranties.
  • Built for Durability
    • We built the QCL100 series with heavy-duty torsion springs to prevent lever sag and ensure long-term durability. Each lock in the series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements.
  • Durable Safety
    • We designed the QCL200 series with heavy-duty torsion springs to prevent lever sag and ensure long-term durability. Each lock in the series is BHMA/ANSI Grade 2 certified.
  • Easy to Retrofit
    • Choose locks with a SFIC option or keep your existing small format cores and use them with QCL200 series locks. Standard door prep and the same thru bolt pattern found in other common locks makes retrofit quick and easy
  • Simple to Install
    •  Compartmentalized packaging makes QCL200 locks easier to install.
  • Reliable Value
    • The QCL200 series combines premium materials, construction, and performance at a great value—both in your up-front investment and in long-range durability.
  • Short Lead Time
    • QCL200 series locks are available for immediate shipment



Certifications:

  • ANSI/BHMA A156.2 Series—Grade 2
  • ANSI A117.1 Accessibility Code (ADA compliant)
  • UL/cUL listed (3 hour) for “A” label single door applications (4’ by 8’) UL10C/UBC 7-2 (1997) positive pressure rated
  • UL10B pressure rated
  • California State Reference Code (formerly Title 19 – Fire Marshal) Hurricane Compliant – Miami DADA N.O.A.



Product Specifications:

  • Exposed trim: pressure cast zinc, plated to match finish designation
  • Standard door thickness: 1 3/8” (35mm) – 2” (51mm)
  • Backset: 2 3/4” (70mm) square standard; 2 3/8” (60mm) and 5” (127mm) available Strike: ANSI strike 1 1/4” (32mm) x 4 7/8” (124mm) standard; other options available Door prep: 2 1/8” (54mm) diameter cross bore
  • Latch bolt: keyed/exterior 1/2” (12.7mm) steel throw; interior 1/2” (12.7mm) spring latch; 3/4” throw option for hurricane compliance or fire-rated double door applications
  • Latch faceplate: 1 1/8” (29mm) x 2 1/4” (57mm) standard



Function:

  • Single/Half Dummy
  • Passage
  • Communicating
  • Privacy
  • Entry/Office
  • Entry/Office SFIC
  • Corridor
  • Corridor SFIC
  • Classroom
  • Classroom SFIC
  • Storeroom
  • Storeroom SFIC



Recommended Applications

Lever Options:

  • E- Sierra
  • M- Summit
  • A- Slate

Finishes:

  • Bright Brass
  • Oil Rubbed Bronze
  • Satin Nickel
  • Bright Chrome
  • Satin Chrome

Product downloads

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
QCL200 Series
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Mechanical Door Locks
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Product Attribute:
Cylindrical Locks
Product Category:
Mechanical Locks
Department:
Door Hardware

Stanley Security DORQCL200 – Frequently Asked Questions

1) Will the QCL200 cylindrical lock fit a 1-3/8 inch door, and what is the largest thickness it handles?
The QCL200 series covers 1-3/8 inch (35mm) through 2 inch (51mm) doors as standard, so a 1-3/8 inch older interior door and a 1-3/4 inch commercial door both work without extra parts. Door prep is a 2-1/8 inch (54mm) cross bore, which is the standard bored-lock prep, so most existing openings take it as-is.
2) Which backset do I order for the Dormakaba QCL200, 2-3/8 or 2-3/4 inch?
Two latch options are selected at order: S4 square 2-3/4 inch and S8 square 2-3/8 inch. 2-3/4 inch (70mm) is the QCL200 standard and is what most commercial openings are bored for; 2-3/8 inch (60mm) is the common residential-style bore. A 5 inch (127mm) backset is also available in the series. Measure from the door edge to the center of the 2-1/8 inch cross bore and pick to match.
3) Will the QCL200 latch into the strike already in my frame?
The latch throws 1/2 inch (12.7mm) on both the keyed/exterior steel bolt and the interior spring latch, with a 1-1/8 x 2-1/4 inch standard faceplate. The series standard strike is the ANSI 1-1/4 x 4-7/8 inch, so an existing ANSI-prepped frame is a straight fit. If your frame is prepped for a 1-1/8 x 2-3/4 inch ANSI strike, that 118F strike is what ships here. For hurricane-compliant or fire-rated double door openings, order the 3/4 inch throw latch instead.
4) Can I use my existing small format interchangeable cores with the QCL200?
Yes. SFIC versions are offered in Entry/Office, Corridor, Classroom and Storeroom functions, and you can carry over your existing small format cores rather than rekeying the building. Non-SFIC versions of the same functions ship keyed different on an SC keyway.
5) Is the QCL200 rated for a fire door?
It is UL/cUL listed for 3 hour "A" label single door applications up to 4 by 8 feet, positive pressure rated to UL10C/UBC 7-2 (1997), and also UL10B pressure rated. It carries the California State Reference Code listing (formerly Title 19). For fire-rated double door openings, specify the 3/4 inch throw latch.
6) Is the QCL200 Grade 1 or Grade 2, and is it enough for an apartment building?
The QCL200 is certified to ANSI/BHMA A156.2 Grade 2 and is meant for non-institutional work: hospitality, multi-family and commercial office. It also meets ANSI A117.1 accessibility, so the lever trim is ADA compliant. For high-traffic institutional openings, step up to a Grade 1 cylindrical lock such as the Dorma C150 in the C100 Series.
7) How hard is it to swap the QCL200 in over an existing cylindrical lock?
It uses standard door prep with a 2-1/8 inch cross bore and the same thru-bolt pattern found in other common cylindrical locks, so on a retrofit you are generally reusing the existing holes. The thru-bolt chassis also resists the lever being twisted off. Confirm your existing backset (2-3/8 or 2-3/4) and order the matching latch.
8) My doors are thicker than 2 inches. Is the QCL200 still the right lock?
No. Above 2 inches (51mm) you are outside the QCL200 range. Dormakaba's Dorma C150 and C853 cylindrical locksets both cover 1-3/8 to 2-1/4 inch doors and are Grade 1, which keeps you within the same manufacturer for keying and finish consistency.
9) What is a Grade 1 alternative to the QCL200 cylindrical lock for a heavier traffic opening?
The QCL200 series is certified to ANSI/BHMA A156.2 Grade 2 and is aimed at light commercial work such as hospitality, multi-family and commercial offices. If the opening needs a higher certification, the Dorma C150 is a Grade 1 heavy-duty cylindrical lock in Entry/Office function with a 1-3/8 inch to 2-1/4 inch door thickness range, and the Dorma C853 is a Grade 1 Entrance function keyed lever lockset in the C800 series covering the same 1-3/8 inch to 2-1/4 inch thickness range. Both accept a thicker door than the QCL200, which is built for 1-3/8 inch to 2 inch doors.
10) What is a comparable SFIC storeroom lever if I am not using the QCL200 Storeroom SFIC?
The QCL200 is offered in Storeroom SFIC as well as Classroom SFIC, Corridor SFIC and Entry/Office SFIC, so existing small format cores can be reused. A peer for the same job is the Marks USA 175RF SFIC, a Grade 2 storeroom clutched lever lockset supplied less core with a 2-3/4 inch backset and an ANSI strike - the same 2-3/4 inch backset the QCL200 uses as standard.
11) What should I look at instead of a QCL200 Classroom lock for a classroom security lockdown requirement?
The QCL200 Classroom and Classroom SFIC functions are keyed from the outside in the conventional way. Where a lockdown from inside the room is required, TownSteel offers the XCE-9000 Series electronic classroom intruder cylindrical lockset with keypad, Grade 1, for 1-3/4 inch to 2 inch doors, and the FCE-4000 Series RFID electronic intruder classroom lockset, Grade 1, for 1-3/4 inch doors. Both are heavy duty and narrower on door thickness than the QCL200's 1-3/8 inch to 2 inch range.
12) Which QCL200 function should I use for a classroom versus a storeroom door?
Storeroom keeps the outside lever locked at all times, key retracts the latch, inside lever always free for egress; that is the one for mechanical rooms, IT closets and supply rooms. Classroom lets a key lock and unlock the outside lever so a teacher can secure the door from the corridor. Corridor suits offices where you want key-and-button control, Entry/Office is the general keyed function, and Privacy, Passage, Communicating and Single/Half Dummy cover restrooms, closets, connecting doors and inactive leaves.
13) What lever styles and finishes does the QCL200 come in, and will it match my other doors?
Three lever designs are selectable: Sierra, Summit and Slate. Finishes run 605 bright brass, 613 oil rubbed bronze, 619 satin nickel, 625 bright chrome and 626 satin chrome, so a building already standardized on 626 or 613 can be matched across the fleet. Exposed trim is pressure cast zinc, plated to the finish designation. Heavy-duty torsion springs hold the lever level over time instead of letting it sag.
14) Do I need a keyed QCL200 for a restroom or a closet door?
No, and you would be paying for a cylinder you do not use. Privacy is the function for restrooms and bedrooms, Passage for closets and corridors that never lock, and Single/Half Dummy for inactive leaves and pull-only doors. Comparable non-keyed Grade 2 options include the Orca OCL240 privacy, OCL210 passage and OCL2170 half dummy lever.
15) Is there a hurricane-rated version of the QCL200?
Yes, a hurricane compliant option is offered and the series carries a Miami-Dade N.O.A. For that application you specify the 3/4 inch throw latch rather than the standard 1/2 inch steel throw.
16) Is a keypad or electronic cylindrical lock a direct substitute for the QCL200?
No. The QCL200 is a mechanical keyed cylindrical lockset using an SC keyway and a key cylinder. Units such as the Alarm Lock Trilogy T2 DL2700, a Grade 1 standalone electronic cylindrical entrance lock with a digital keypad and 100 user codes, or the Schlage NDEB Grade 1 ENGAGE wireless cylindrical lock with Bluetooth Low Energy, fit the same 2-1/8 inch cross bore family of openings but add credential management, batteries and a different door thickness window - the DL2700 covers 1-5/8 inch to 1-7/8 inch and the NDEB 1-5/8 inch to 2 inch, against the QCL200's 1-3/8 inch to 2 inch.
17) If I only need a non-keyed passage or dummy lever, what can I use instead of a QCL200?
The QCL200 does offer passage and single/half dummy functions, but if you want a simpler non-keyed unit the Dorma CL701 is a Grade 2 single dummy non-keyed lever lockset in the CL700 series, and the Orca OCL2170 is a Grade 2 half dummy lever. For a working latch without a key, the Orca OCL210 is a Grade 2 medium duty passage cylindrical lockset, and the Cal-Royal CAL30 is a Grade 1 extra heavy duty passage lock fitting 1-3/8 inch to 2 inch doors.
18) I need a privacy lock for restrooms and bedrooms - what matches the QCL200 for that function?
Privacy is one of the QCL200 series functions. Comparable mechanical privacy locksets include the Orca OCL240, a Grade 2 medium duty privacy cylindrical lockset, and the Cal-Royal CAL20, a Grade 1 extra heavy duty privacy lock for doors 1-3/8 inch to 2 inch thick - the same thickness range the QCL200 covers.
19) Can I use a knob lockset in place of the QCL200 lever?
Mechanically a bored knob set fits the same 2-1/8 inch cross bore prep, and the Marks USA 110AB is a Grade 2 entry knob lockset with a 2-3/8 inch backset - the QCL200 offers a 2-3/8 inch latch option as well as its standard 2-3/4 inch. The difference is the trim: the QCL200 is a lever lockset meeting ANSI A117.1 accessibility, while a round knob does not give the lever operation ADA openings call for.
20) What keyed entrance lockset is closest in grade to the QCL200 Entry/Office?
The QCL200 is ANSI/BHMA A156.2 Grade 2 and its Entry/Office function is keyed on an SC keyway. The closest peer by grade and function is the Orca OCL250, a Grade 2 medium duty entrance cylindrical lockset. If a Grade 1 entrance lever is preferred, the Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever supplied less core.
21) Is a Lockey mechanical pushbutton lock an equivalent to a QCL200 entry lock?
Not a like-for-like swap. The Lockey 2830 is a mechanical pushbutton keyless knob lock with a passage function for doors 1-1/8 inch to 2 inch thick, and the Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset over the same 1-1/8 inch to 2 inch range. Both are code-entry knobs with no key cylinder, where the QCL200 Entry/Office is a keyed lever on an SC keyway and is keyed different.
