Dormakaba Stanley Security QCL220 Grade 2 Cylindrical Lock, Single Dummy Sierra Lever, No Latch QCL220

Stanley Security QCL220 Grade 2 Cylindrical Lock, Single Dummy Sierra Lever, No Latch

(No reviews yet) Write a Review

Model: QCL220 E 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$107.00
$59.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dormakaba QCL200 Cylindrical Lock

QCL200 standard-duty cylindrical lock series provides a better solution for light commercial applications. Designed for quick installation, easy retrofit, longer performance life, and vandal resistance, the QCL200 series offers a better initial value and significant long-term savings. Our QCL200 series cylindrical locks combine quality, performance, and value—and are backed by the name more people trust with their security.



Features:

  • Designed for Security
    • With features like thru bolt design, clutching mechanisms, and fire-rated latches—plus an available hurricane compliant option—QCL200 series locks ensure the utmost security.
  • Backed by a Leading Warranty
    • The QCL200 lock series comes with lifetime mechanical, three-year finish, and one-year electrical warranties.
  • Built for Durability
    • We built the QCL100 series with heavy-duty torsion springs to prevent lever sag and ensure long-term durability. Each lock in the series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements.
  • Durable Safety
    • We designed the QCL200 series with heavy-duty torsion springs to prevent lever sag and ensure long-term durability. Each lock in the series is BHMA/ANSI Grade 2 certified.
  • Easy to Retrofit
    • Choose locks with a SFIC option or keep your existing small format cores and use them with QCL200 series locks. Standard door prep and the same thru bolt pattern found in other common locks makes retrofit quick and easy
  • Simple to Install
    •  Compartmentalized packaging makes QCL200 locks easier to install.
  • Reliable Value
    • The QCL200 series combines premium materials, construction, and performance at a great value—both in your up-front investment and in long-range durability.
  • Short Lead Time
    • QCL200 series locks are available for immediate shipment



Certifications:

  • ANSI/BHMA A156.2 Series—Grade 2
  • ANSI A117.1 Accessibility Code (ADA compliant)
  • UL/cUL listed (3 hour) for “A” label single door applications (4’ by 8’) UL10C/UBC 7-2 (1997) positive pressure rated
  • UL10B pressure rated
  • California State Reference Code (formerly Title 19 – Fire Marshal) Hurricane Compliant – Miami DADA N.O.A.



Product Specifications:

  • Exposed trim: pressure cast zinc, plated to match finish designation
  • Standard door thickness: 1 3/8” (35mm) – 2” (51mm)
  • Backset: 2 3/4” (70mm) square standard; 2 3/8” (60mm) and 5” (127mm) available Strike: ANSI strike 1 1/4” (32mm) x 4 7/8” (124mm) standard; other options available Door prep: 2 1/8” (54mm) diameter cross bore
  • Latch bolt: keyed/exterior 1/2” (12.7mm) steel throw; interior 1/2” (12.7mm) spring latch; 3/4” throw option for hurricane compliance or fire-rated double door applications
  • Latch faceplate: 1 1/8” (29mm) x 2 1/4” (57mm) standard



Function:

  • Single/Half Dummy
  • Passage
  • Communicating
  • Privacy
  • Entry/Office
  • Entry/Office SFIC
  • Corridor
  • Corridor SFIC
  • Classroom
  • Classroom SFIC
  • Storeroom
  • Storeroom SFIC



Recommended Applications

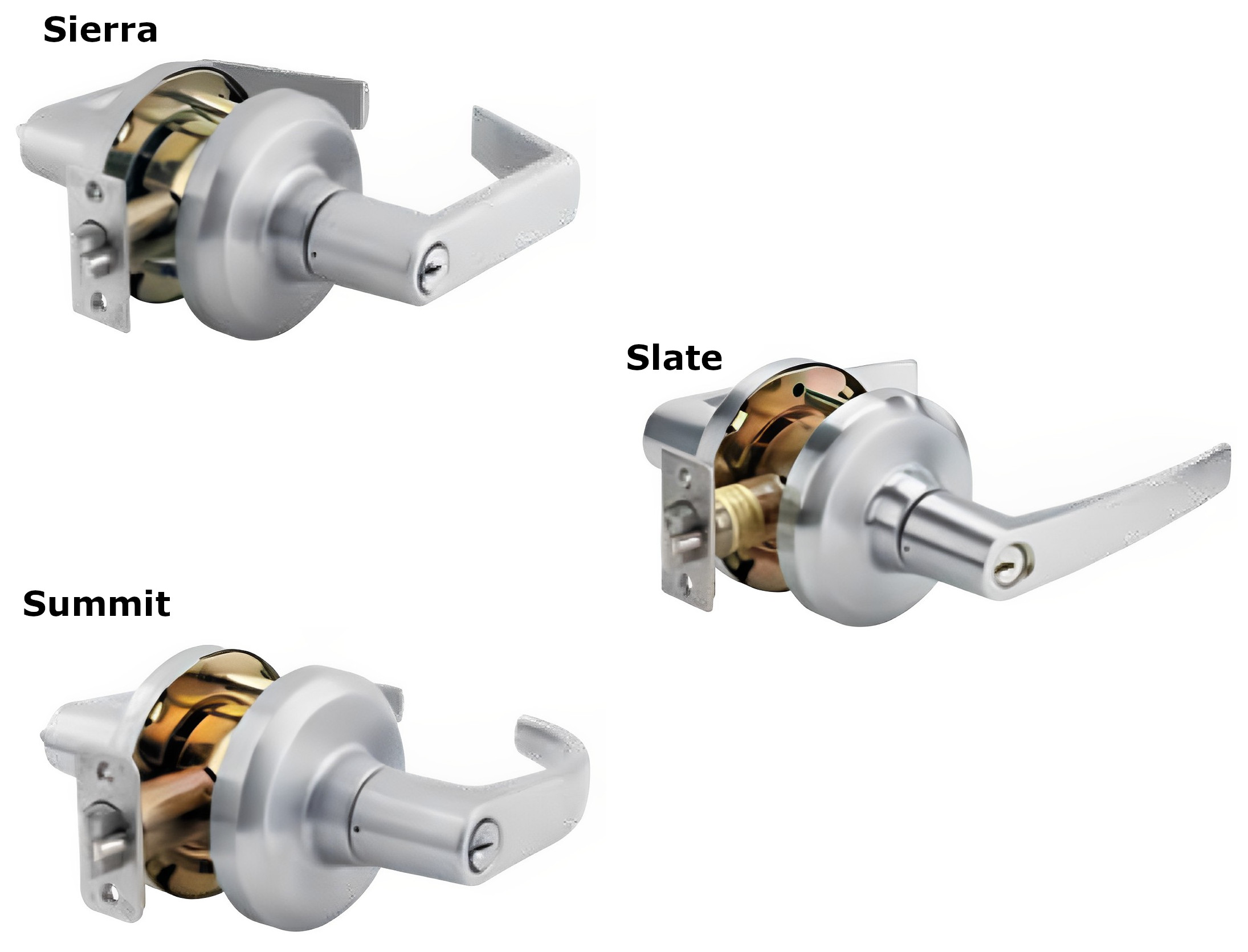

Lever Options:

  • E- Sierra
  • M- Summit
  • A- Slate

Finishes:

  • Bright Brass
  • Oil Rubbed Bronze
  • Satin Nickel
  • Bright Chrome
  • Satin Chrome

Product downloads

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
QCL200 Series
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Mechanical Door Locks
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Grade:
Grade 2
Product Attribute:
Cylindrical Locks
Product Function:
Dummy
Product Category:
Mechanical Locks
Department:
Door Hardware

Stanley Security QCL220 E 626 – Frequently Asked Questions

1) Does the Stanley Security QCL220 single dummy lever come with a latch?
No latch, no bore-through hardware. The QCL220 is a single dummy trim: one lever on one face, fixed in place, no latchbolt and nothing that operates. It's there to give a door a matching pull and handle. If you need a lever that actually retracts a latch on a door that isn't locked, you want the passage function in the QCL200 line instead.
2) What door thickness does the Dormakaba QCL200 series cylindrical lock fit?
1-3/8 inch to 2 inch (35mm to 51mm) is the standard door thickness range for the QCL200 series. That covers standard 1-3/4 inch commercial doors and the older 1-3/8 inch interior doors you find in multi-family and hospitality retrofits.
3) Do I need to drill a cross bore for a QCL220 dummy lever, or does it surface mount?
Standard prep for the QCL200 series is a 2-1/8 inch (54mm) diameter cross bore with a 2-3/4 inch (70mm) backset, and the backset is a required choice at order time between 2-3/4 and 2-3/8 inches. Since the QCL220 is a dummy with no latch, there's no edge bore or strike to cut, but you still specify the backset so the lever sits in the right place relative to the door edge and matches the working locks on adjacent openings.
4) Will a QCL220 dummy lever match the other Stanley QCL200 locks already on my building's doors?
Yes, and that's the usual reason to buy it. The QCL220 uses the same Sierra lever design and the same finish range as the working functions in the QCL200 series, so a dummy on an inactive leaf or a closet door reads identically to the passage, privacy, entry, classroom and storeroom locks down the hall. Finishes run 605 bright brass, 613 oil rubbed bronze, 619 satin nickel, 625 bright chrome and 626 satin chrome.
5) Is the QCL200 series lock ADA compliant and fire rated?
The QCL200 series carries ANSI/BHMA A156.2 Grade 2, meets ANSI A117.1 accessibility code (ADA compliant), and is UL/cUL listed 3 hour for A label single door applications up to 4 by 8 feet, positive pressure rated to UL10C/UBC 7-2 (1997) and pressure rated to UL10B. It also meets California State Reference Code (formerly Title 19). A hurricane compliant option to Miami DADA N.O.A. is available in the series.
6) Can I retrofit a QCL200 series lock into doors that already have another brand's cylindrical lockset?
Standard door prep and the same thru bolt pattern found in other common cylindrical locks is what Dormakaba states for the QCL200 series, with a 2-1/8 inch cross bore and 2-3/4 inch backset as standard. If you're keeping small format cores, the series takes an SFIC option so your existing cores carry over on the keyed functions. On the QCL220 dummy specifically there's no core and no latch involved, so it's just the cross bore and thru bolt holes.
7) What is the closest equivalent to the Stanley Security QCL220 single dummy lever if I need a Dormakaba-family dummy trim instead?
The Dorma C501 Single Dummy Trim Keyless Lever Lockset is the direct counterpart. Like the QCL220, it is a Grade 2 dummy-function lever, so it mounts as a pull-only trim with no latch and no operating mechanism. The C501 carries a door thickness range of 1-3/8 inch to 1-3/4 inch, while the QCL220 belongs to the QCL200 series built for a 1-3/8 inch to 2 inch door. On a 2 inch door the QCL220 is the one that fits.
8) I ordered a dummy lever but the door actually needs to latch closed - what should I order instead?
A dummy lever such as the QCL220 has no latch at all, so it will not hold a door in the frame. For a non-keyed door that still needs to latch, the Dorma CL701 is a Grade 2 non-keyed lever lockset in a passage function, and the Orca Hardware OCL210 is a Grade 2 medium duty passage cylindrical lockset. For a bathroom or bedroom door needing a thumbturn, the Orca OCL240 is the Grade 2 privacy version. All three operate a latch; the QCL220 does not.
9) The opening needs to be keyed, not a dummy - what takes the QCL220's place?
Keyed openings need a lockset with a cylinder, which a dummy lever does not have. Within the same Grade 2 medium duty class, the Orca Hardware OCL250 is an entrance cylindrical lockset. For a keyed door on a small format interchangeable core system, the Marks USA 175RF SFIC is a Grade 2 storeroom clutched lever with a 2-3/4 inch backset and an ANSI strike, supplied less core. Where the specification calls for Grade 1, the Dorma C853 is an entry keyed single cylinder lever in the C800 series with a 1-3/8 inch to 2-1/4 inch door thickness range.
10) Is a Grade 2 cylindrical lock enough for my building, or do I need Grade 1?
Grade 2 is standard duty, and Dormakaba positions the QCL200 series for non-institutional work: hospitality, multi-family residences and commercial office space. For high-traffic institutional openings, schools, hospitals, public corridors, step up to Grade 1. In that range ZenSupply carries the Dorma C150 (Grade 1, entry/office, C100 Series) and the Marks USA 195N Survivor Series passage lever (Grade 1, ADA compliant).
11) What's the difference between a single dummy and a half dummy lever, and which one do I order?
On the QCL200 series the function is listed as single/half dummy, so the QCL220 covers one lever on one face of the door. Order one per face: a pair of French doors or a double closet with a lever on each visible side takes two. If you want a non-keyed lever that actually turns and retracts a latch on an inactive leaf, that's a passage function, not a dummy.
12) What other single dummy lever locksets does ZenSupply carry besides the Stanley QCL220?
Two close alternatives, both Dormakaba. The Dorma C501 is a Grade 2 single dummy trim keyless lever from the C500 Series, rated for 1-3/8 to 1-3/4 inch doors. The Dorma CL701 is a Grade 2 single dummy non-keyed cylinder lever in the CL700 Series. From another brand, the Orca Hardware OCL2170 is a Grade 2 medium duty half dummy lever. The QCL220 covers a wider thickness range than the C501 at 1-3/8 to 2 inches.
13) Do I need to specify handing when ordering a QCL220 dummy lever?
Handing isn't a selection on the QCL220. What you do have to specify is the finish and the backset, 2-3/4 or 2-3/8 inch, since backset is a required choice. Pick the backset that matches the cross bore already in the door or the other locks on the run so the lever lands at the same distance from the edge.
14) Is there another Grade 2 half dummy lever that matches the QCL220 for a hospitality or multi-family door?
The Orca Hardware OCL2170 is a Grade 2 half dummy lever in a medium duty rating, and it serves the same purpose as the QCL220 single dummy Sierra lever: a fixed lever on a door leaf that needs the look and grip of a lockset without any latching. The QCL220 comes in five finishes - 605 bright brass, 613 oil rubbed bronze, 619 satin nickel, 625 bright chrome, and 626 satin chrome - which is the deciding factor when you are matching dummy trim to keyed locks already hanging on the other doors.
15) My spec calls for Grade 1 cylindrical hardware - what is the step up from the QCL220's Grade 2?
The QCL220 is certified Grade 2. Where the drawing calls for Grade 1 cylindrical levers, the Dorma C150 is a Grade 1 heavy-duty entry/office cylindrical lock in the C100 series with a 1-3/8 inch to 2-1/4 inch door thickness range, and the Marks USA 195N is a Grade 1 Survivor Series passage lever described as ADA compliant. For Grade 1 privacy, the Cal-Royal CAL20 covers 1-3/8 inch to 2 inch doors, and the Cal-Royal CAL30 is the passage version over the same range.
16) Can an electronic keypad cylindrical lock be swapped in where a QCL220 dummy lever is going?
No - a dummy lever is fixed trim with no latch, so an opening prepped for one is not an opening that operates. Electronic cylindrical locks such as the Alarm Lock Trilogy T2 DL2700, the Schlage CO-100 privacy keypad lock, or the TownSteel XCE-2000 keypad lockset all latch and control access, and they carry their own door thickness limits: the DL2700 fits 1-5/8 inch to 1-7/8 inch doors, the CO-100 is listed at 1-3/4 inch, and the XCE-2000 covers 1-3/4 inch to 2 inch. The QCL220 is built for 1-3/8 inch to 2 inch doors, so a thin door that accepts the dummy will not necessarily accept the electronic lock.
17) What looks like a substitute for a QCL220 dummy lever but is not?
Two things get mistaken for it. A passage lever - the Dorma CL701 Grade 2 non-keyed lever or the Marks USA 195N Grade 1 Survivor Series passage lever - turns and retracts a latch, so it is not fixed trim. And a knob lockset such as the Marks USA 110AB Grade 2 entry knob on a 2-3/8 inch backset changes the grip entirely and is keyed. The QCL220 is a dummy lever: it does not turn, does not latch, and takes no key.
18) For a classroom or school corridor door, is the QCL220 series the right family or should I look elsewhere?
The QCL200 series is described as a cost-effective cylindrical solution for non-institutional applications such as hospitality, multi-family residences and commercial office spaces, and the QCL220 within it is dummy trim. Classroom-function openings are served by Grade 1 hardware built for that use: the TownSteel FCE-2000 is a Grade 1 heavy duty standalone motorized RFID classroom lockset, the TownSteel XCE-9000 is a classroom intruder lockset with keypad on a 1-3/4 inch to 2 inch door, and the Schlage XE360M is a Grade 1 wireless tubular lock in a classroom/storeroom function at 1-3/4 inch.
19) Which finishes does the Stanley QCL220 Sierra lever come in?
Five: 605 bright brass, 613 oil rubbed bronze, 619 satin nickel, 625 bright chrome and 626 satin chrome. Exposed trim is pressure cast zinc, plated to match the finish designation, so the dummy plates to the same standard as the working locks in the series and won't read off against them on adjacent doors.
20) Will the QCL200 lever sag over time on a high-use door?
Heavy-duty torsion springs are used through the QCL200 series specifically to prevent lever sag, which is the usual failure on light commercial lever hardware. Levers are clutched on the working functions, so force on the lever doesn't drive the internal mechanism. On the QCL220 dummy there's no mechanism to protect, but the same trim and spring construction is what keeps the lever sitting level next to the operating ones.
21) I need keyless entry on a thin door - is the QCL220 or a mechanical pushbutton lock the better fit?
The QCL220 is dummy trim and provides no entry control at all. For mechanical keyless entry, the Lockey 2830 is a pushbutton keyless knob lock with an auto-locking passage function, and the Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset; both are listed for 1-1/8 inch to 2 inch doors. The QCL200 series is built for 1-3/8 inch to 2 inch doors with a 2-3/4 inch square backset standard and 2-3/8 inch and 5 inch available.
