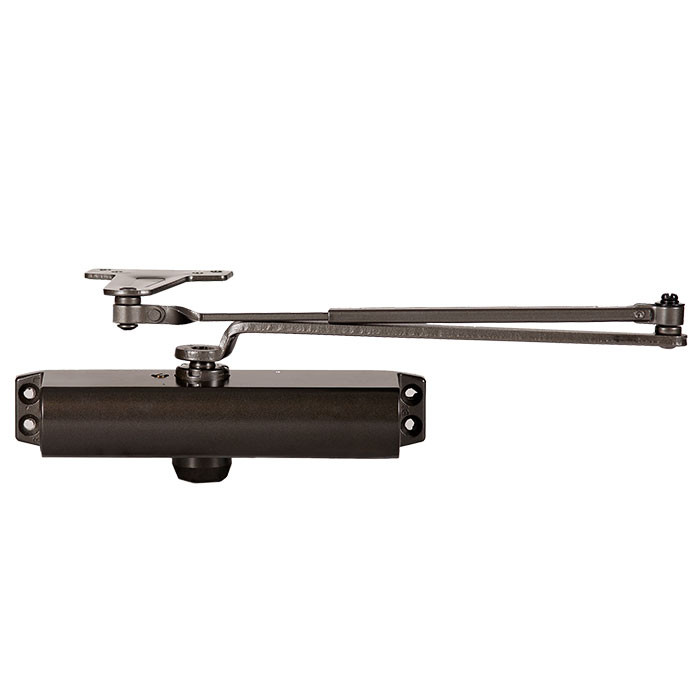

Stanley Security QDC311 Series - Grade 1 Door Closer, Tri-Pack Arm, Full Size Cover

Stanley Security QDC311 Series - Grade 1 Door Closer, Tri-Pack Arm, Full Size Cover

(No reviews yet) Write a Review

Model: QDC311 F 689
$368.00
$206.67
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$368.00
$206.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

QDC300 Series Standard Duty Door Closers

The QDC300 Series includes many premium design components standard, without costly upcharges. And with a wide range of available options and customizable features, the QDC300 provides flexible value without compromising quality.

  • Smaller, narrower footprint
  • Includes many premium design components without costly upcharges
  • Wide range of available options
  • Retrofit-compatible features
  • Non-handed and universal mount flexibility
  • Available in 4 unique arm options that feature variant arm and stop types



Product details

Security:

The QDC300 is ANSI/BHMA Grade 1 certified, and significantly exceeds performance requirements. These closers are fully adjustable, with a barrier-free option to meet ADA requirements.

Construction:

Strong materials and careful design ensures QDC300 closers perform reliably over the long term. We engineered the QDC300 Series to be fully adjustable and usable on both interior and exterior doors. All-weather fluid, a variety of feature options, and non-handed and universal mount flexibility make it easy to stock and use the QDC300 in a wide variety of applications.


Applications

The QDC300 is a cost-effective option ideal for aluminum storefront applications due to its smaller closer body.

There's no need to re-prep your door. The QDC300 has the same footprint as the Norton 1600 Series, so it's quick and easy to retrofit.





Product Downloads

Brochures & data sheets

Catalogs

Manufacturer Resources

Product Specs

Product Group:
Door Controls
Series:
QDC300 Series
Grade:
Grade 1
Duty Level:
Medium Duty
Warranty:
Lifetime Mechanical, 3 Year Finish
Closer Size:
1 to 6
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Subcategory:
Surface Mounted Closers
Commercial/Residential:
Commercial
ANSI/BHMA:
ANSI/BHMA A156.4; ANSI A117.1; UL/cUL listed; UL10c; UL10b
Fasteners:
Wood and Machine Screws Standard, Sex Nuts and Self-Reaming, Self-Tapping Screws Standard
UL Listing Type:
ANSI/BHMA A156.4; ANSI A117.1; UL/cUL listed; UL10c; UL10b
Door Width:
30" to 48" (Interior); 32" to 48" (Exterior)
Mounting Location:
Pull Side/Push Side
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Category:
Door Controls
Department:
Door Hardware

Stanley Security QDC311 F 689 – Frequently Asked Questions

1) Will the Stanley QDC311 door closer fit my aluminum storefront door?
Yes, and that's the application the QDC300 body was sized for. The closer body is smaller and narrower than a typical commercial closer, which is what lets it land on the narrow top rail of an aluminum storefront door. It mounts on a 1-3/4 inch door and covers openings 32 to 48 inches wide on exterior doors, 30 to 48 inches interior. Mount it pull side or push side, whichever the storefront header allows.
2) Can a Stanley QDC311 closer replace an existing Norton 1600 closer without re-drilling the door?
It can. The QDC300 Series uses the same footprint as the Norton 1600 Series, so the existing prep and hole pattern carry over and the door does not need to be re-prepped. If you're swapping a wall of storefront doors, that's the retrofit that saves the labor. ZenSupply also stocks the Norton Rixson 1600 Series itself if you'd rather stay with the original.
3) Do I have to order a Stanley QDC311 closer handed for a left or right hand door?
No handing to specify. The QDC311 is non-handed and mounts regular arm, parallel arm or top jamb, so one unit covers either swing. That's why it stocks well for a property manager carrying spares across a building, one part number, any opening.
4) Is the Stanley QDC311 closer adjustable for spring size, or do I have to order a specific size?
One closer covers the whole range. Spring power adjusts from size 1 through 6, so the same unit handles a 30 inch interior office door and a 48 inch exterior entrance. You set the power on site rather than picking a size at the order form. Useful when you don't know the door widths in advance across a portfolio.
5) Is the QDC311 door closer ADA compliant for barrier free openings?
Order it with the Barrier Free option and it meets ANSI A117.1, the accessibility standard behind ADA opening force requirements. Barrier Free is available in all three finishes, aluminum, dark bronze and satin brass, with or without the cover. If the opening does not need reduced opening force, the standard non-barrier-free build is the one to order.
6) What screws come with the Stanley QDC311 closer, and do I need anything else to hang it?
Fasteners are in the box: wood and machine screws as standard, plus sex nuts and self-reaming, self-tapping screws, also standard rather than an upcharge. That covers a hollow metal frame, a wood door, and a through-bolted aluminum stile. What's not included is a drop plate or a bracket for a shallow header or a stop-face condition, if the header reveal won't clear the arm, that's a separate part.
7) Should I order the QDC311 door closer with or without the cover?
Both builds are available in every finish. The full-size cover hides the closer body and the adjustment valves, which is what you want on a lobby or a tenant-facing corridor. Skipping the cover leaves the body exposed, common on back-of-house, service and stair doors where appearance doesn't matter and maintenance wants the valves reachable. The closer itself is the same either way.
8) Is the Stanley QDC311 rated for an exterior door in cold weather?
It uses all-weather fluid, so the closing speed holds up through temperature swings on an exterior opening. Exterior door width range is 32 to 48 inches. One closer works on both interior and exterior doors, which is part of why it's easy to stock a single model across a building.
9) Is a medium duty closer like the QDC311 enough for a high traffic entrance, or do I need heavy duty?
The QDC311 is rated medium duty at Grade 1, which suits offices, corridors, tenant entries and storefront doors carrying normal commercial traffic. For a main entrance taking constant abuse, a school corridor or a hospital entrance, step up to a heavy duty body: the BEST HD8000 Series and the Sargent 1431 Powerglide are both Grade 1 heavy duty, and the BEST EHD9000 Series is extra heavy duty with adjustable sizes 1 to 6. Same job, more closer.
10) What other Grade 1 medium duty surface closers compare to the Stanley QDC311?
Closest peers ZenSupply carries are the Norton Rixson 1601P, Grade 1 medium duty tri-mount, the Sargent 1131 and 1331, both Grade 1 medium duty, the Falcon SC81A medium duty Grade 1, and the Dormakaba 7303 Series, Grade 1 medium duty. The Corbin Russwin DC3200 is Grade 1 on a 1-3/4 inch door with a regular arm. Where the QDC311 separates itself is the Norton 1600 footprint match, if you're replacing 1600s, none of the others drop into that existing prep.
11) Does the QDC311 closer hold the door open?
The QDC311 ships with a tri-pack arm, a non-hold-open arm packed to mount three ways. If you need the door to stay open, look at a hold-open closer instead: the Accentra 51 Series comes with a tri-packed hold open arm in sizes 1 to 6, and the Orca BHDC1958 is offered in a hold open build for a 1-3/4 inch door. Keep hold open off any fire rated opening.
12) Can the Stanley QDC311 be used on a residential door?
It's built and certified for commercial use, ANSI/BHMA A156.4 Grade 1 on a 1-3/4 inch door. A standard interior residential door is usually 1-3/8 inches, which is outside what this closer is specified for. For multi-family corridor and unit entry doors that are 1-3/4 inch commercial slabs, it's the right class of product.
