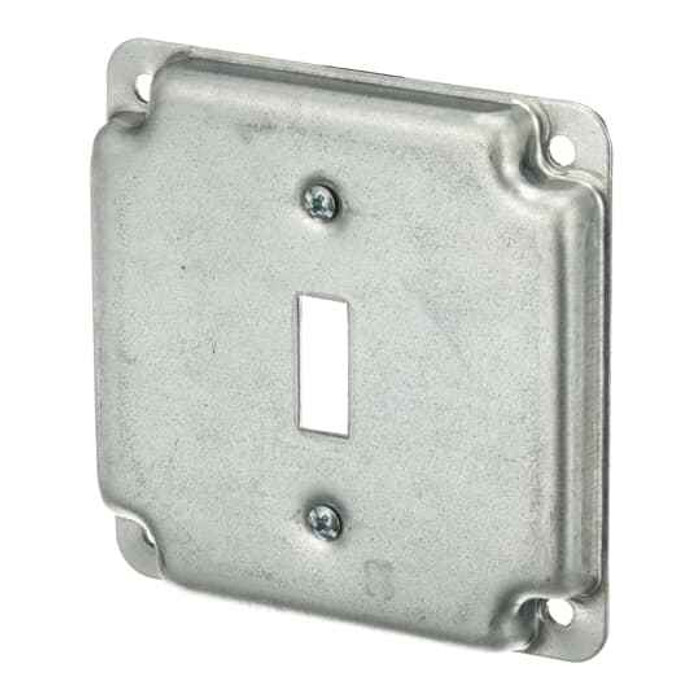

4SQ SURF CVR 5CU 1TGLE, 1/2IN DEEP
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States
- Selling Unit Of Measure:
- each
- Standards:
- UL E2969
- Surface Finishing:
- Pre-Galvanized
- Volume:
- 5 in³
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Box Covers
- Product Type2:
- Outlet Box Covers
- Product Size:
- 4 Inches
- Product Color:
- Silver
- Product Shape:
- Square
- Product Material:
- Steel
- Product Type:
- Raised Device Cover
Steel City RS 9 – Frequently Asked Questions
1) Will the Steel City RS 9 cover fit a standard 4 inch square outlet box?
Yes. The RS 9 is a 4 inch square surface cover, so it mounts to any standard 4 inch square (1900) box using the box's two diagonal cover screw holes. It is a raised cover with a 1/2 inch depth, so it sits proud of the box face rather than flat.
2) What device opening does the Steel City RS 9 raised cover have?
One toggle switch opening. The RS 9 accepts a single standard toggle switch and nothing else, so if you need a duplex receptacle opening or a two-gang opening you want a different cover in the raised cover line.
3) Does the 1/2 inch deep raised cover add box fill volume for my conductor count?
It does. The RS 9 adds 5 cubic inches of usable volume on top of whatever the 4 inch square box itself provides, and that figure is what you use in an NEC box fill calculation. The 1/2 inch depth is what buys you that extra room when a switch and its conductors crowd a shallow box.
4) Is the Steel City RS 9 cover UL listed?
Yes, it carries UL listing E2969. That is the reference an inspector or a spec writer will want on a switch cover going into a commercial or institutional job.
5) Can the RS 9 switch cover be used in a damp location or unfinished garage?
It is pre-galvanized steel, which gives it corrosion resistance suited to dry and normal interior work such as unfinished basements, garages, shops and utility rooms. Pre-galvanized is not a wet location or outdoor rating, so for exposed exterior use go to a weatherproof cover and gasket instead.
6) Do I get a faceplate with the Steel City RS 9 raised cover, or do I still need a switch plate?
The RS 9 is the raised cover only, sold each. It has the toggle opening formed into it and the switch mounts directly to the cover, so on exposed surface work this is commonly the finished face with no separate wall plate. Order the box, the switch and any mounting hardware separately.
7) Is the Steel City RS 9 made in the USA for Buy American jobs?
Country of origin is the United States, which is the detail government, education and healthcare procurement teams check when domestic sourcing is written into the contract.
