Arlington Industries Steel Fan and Fixture Box with Adjustable Mounting Bracket
Professional-Grade Adjustable Mounting Solution for Existing Construction
The Arlington Industries Steel Fan and Fixture Box is an innovative ceiling box designed to solve challenging retrofit installations in existing construction. This plated steel fixture box features adjustable mounting brackets that expand from 16" to 24" on center spacing, delivering the versatility and strength that electrical professionals demand for fan and fixture installations.
Innovative Features & Benefits

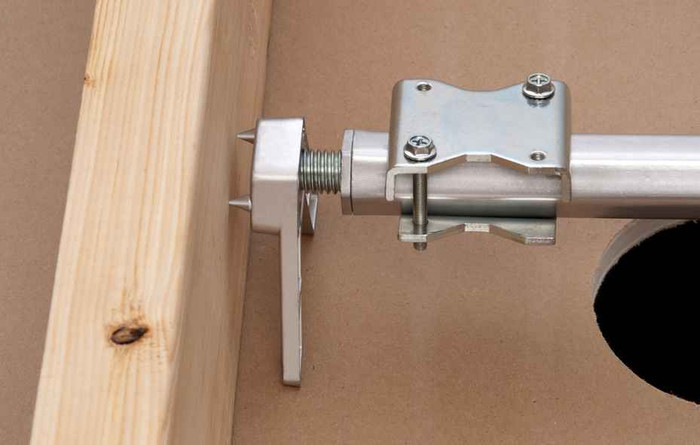

Adjustable Mounting System
- 16" to 24" On Center Adjustment - Accommodates various joist spacing without additional framing work
- Plated Steel Construction - Provides superior strength and corrosion resistance for long-lasting installations
- 2" Deep Box Design - Offers ample wiring space with 20.0 cubic inches capacity
- UL Listed Performance - Rated for 70 lb fan/90 lb fixture at 24" on center spacing
Professional Installation Benefits
- Existing Construction Ready - Eliminates need for structural modifications in retrofit applications
- Time-Saving Design - Adjustable brackets reduce measurement and cutting time
- Heavy-Duty Load Rating - Supports ceiling fans and heavy fixtures with confidence
Technical Specifications
Plated steel construction, 2" deep box with 20.0 cubic inches capacity, adjustable from 16" to 24" on center, 3.563" height, UL and CSA listed, load rated for 70 lb fan/90 lb fixture at 24" on center spacing, silver finish, standard packaging of 10 pieces.
Quick Installation Process
- Position box between joists and adjust brackets to fit 16" to 24" spacing
- Secure mounting brackets to structural members with appropriate fasteners
- Verify box is level and properly supported for load requirements
- Run electrical wiring through appropriate knockouts
- Make wire connections using 20.0 cubic inch capacity efficiently
- Install ceiling fan or fixture according to manufacturer specifications
Perfect Applications
Ideal for:
- Residential Retrofits - Ceiling fan installations in existing homes without accessible attic space
- Commercial Renovations - Office and retail fixture upgrades in occupied buildings
- Multi-Family Housing - Apartment and condo ceiling fan installations
- Historic Renovations - Preserving structural integrity while adding modern fixtures
- Basement Finishing - Installing fixtures between exposed joists
- Garage Conversions - Adding proper electrical boxes during space conversions
- Workshop Installations - Heavy-duty fixture mounting in utility spaces
- Remodeling Projects - Upgrading electrical systems during home improvements
Adjustable Mounting Advantage
Arlington's adjustable bracket system eliminates the guesswork and custom fabrication typically required for retrofit installations, allowing electricians to work efficiently with varying joist spacing while maintaining structural integrity and code compliance.
Why Choose Arlington Innovation?
Since 1949, Arlington Industries has engineered solutions that save installation time while exceeding safety standards. This adjustable fan and fixture box represents decades of innovation in electrical installation products, providing contractors with reliable, code-compliant solutions for challenging retrofit applications.
ARL-FBRS4200R - spec sheet
Manufacturer Resources
Product Specs
- Color:
- Silver
- Cubic Inches:
- 20
- Height:
- 3.563"
- Listing:
- UL, CSA
- Load Rating:
- UL Rated: 70 lb fan/ 90 lb fixture at 24" o.c. and 70 lb fan/
- Material S :
- Plated Steel
- Standard Packaging:
- 10pcs
- Style:
- 2" Box Depth
- Trade Size:
- 20.0 cu. in.
- Weight:
- 3.184 lbs/each
- Width:
- 13.979"
- Product Type:
- Ceiling Mounts
- Product Group:
- Mounting Hardware
- Department:
- Electrical
- Product Subgroup:
- Mounting Accessories
