Strap 2-Hole X 1/2 Rigid Conduit Str (Box 100)
Additional Notes
- other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Box
- Product Family:
- Electrical Supplies
- Product Group:
- Hardware
- Product Height:
- 3.25 in
- Product Length:
- 7.25 in
- Product Weight:
- 4 lbs
- Product Width:
- 6.75 in
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Straps and Clips
- Product Type:

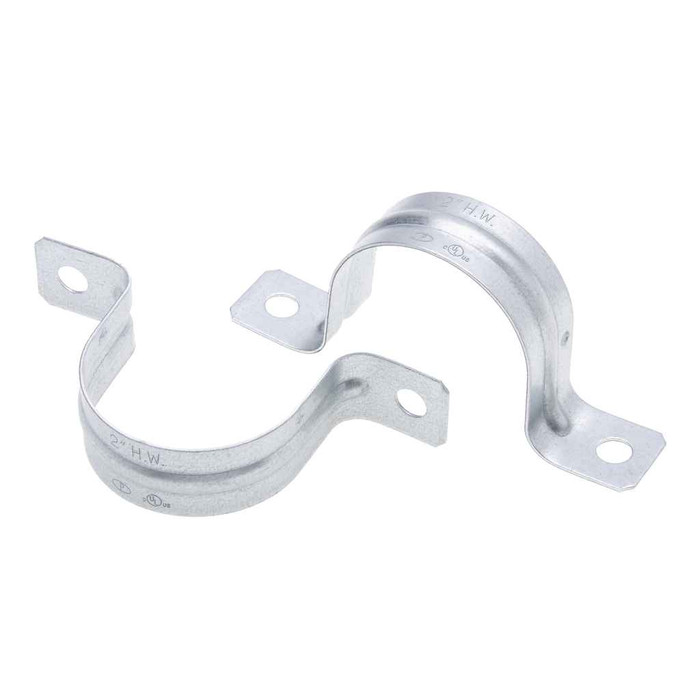

- Two Hole Rigid Pipe Strap
- Type2:
- Two Hole Rigid Pipe Strap
- Product Details:
- Two Hole Rigid Pipe Strap
- Product Material:
- Steel
Metallics 50RTS – Frequently Asked Questions
1) What size conduit does the Metallics 50RTS two-hole strap fit?
The 50RTS is sized for 1/2 inch rigid conduit. It's a two-hole rigid pipe strap, so the conduit sits in the saddle and the strap fastens through two mounting holes, one on each side. For other trade sizes, Metallics builds the same two-hole rigid strap in additional sizes.
2) Can I use a two-hole strap on EMT instead of rigid conduit, or do I need a different strap?
The 50RTS is a rigid conduit strap. Two-hole straps for rigid/IMC and two-hole straps for EMT are sized to different outside diameters at the same trade size, so a 1/2 inch rigid strap will sit loose on 1/2 inch EMT. If you're strapping EMT, order the EMT version rather than forcing this one.
3) Does the 50RTS conduit strap meet Buy American and ARRA requirements for a federal or public job?
Yes. The 50RTS is flagged compliant for both Buy American and ARRA, and country of origin is the United States. That's what a government, school, or municipal submittal package usually needs on commodity fittings.
4) How many straps come in a box of Metallics 50RTS, and is there a minimum order?
They ship as a box of 100, and 100 count is the order minimum, so that box is the unit you buy. Other quantities can be arranged on request.
5) Do Metallics 50RTS straps come with mounting screws or anchors?
No fasteners are included. The strap has two mounting holes and you supply the screws or anchors that suit the substrate, wood screws into studs or blocking, self-drilling screws into metal stud or deck, and masonry anchors into block or concrete. Budget two fasteners per strap when you're counting out a box of 100.
6) Should I use a two-hole strap or a one-hole strap for 1/2 inch rigid conduit?
A two-hole strap like the 50RTS fastens on both sides of the conduit, so it resists twisting and side load better, which is what you want on long horizontal runs, exposed work, and anywhere the run gets bumped. A one-hole strap is quicker to install and fine for short drops and light vertical runs. Two-hole is also the detail most commonly called out on commercial drawings for rigid.
7) What material are Metallics 50RTS straps made of?
Steel. For damp, exterior, or corrosive locations you'd want to confirm the finish suits the environment before committing a full box, since bare steel in wet areas is the usual reason these get replaced early.
8) What are the shipping box dimensions and weight for a box of 100 Metallics 50RTS straps?
The packed box measures 7.25 x 6.75 x 3.25 inches and weighs 4 lbs. Small and light enough to keep several sizes on the truck without eating van space.
