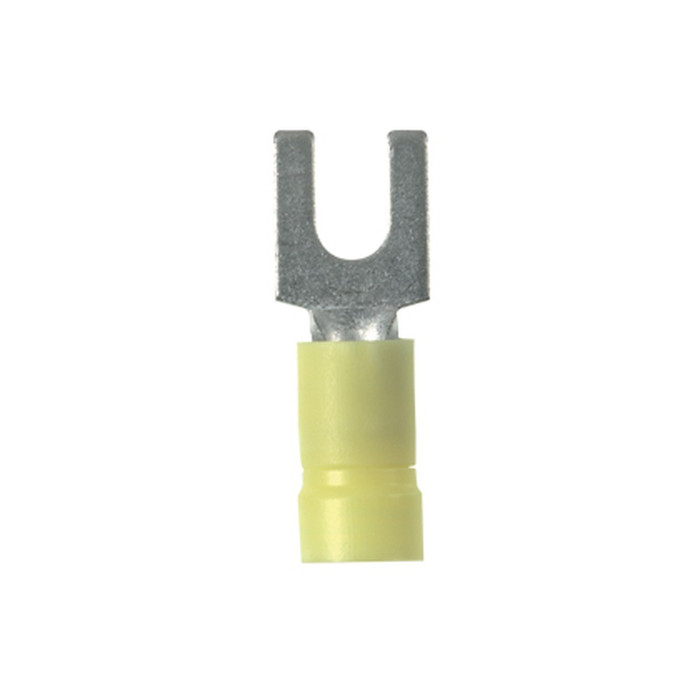

Panduit StrongHold EV10-14FB-Q Insulated Fork Terminal, Yellow, 1/4" Stud, 12-10 AWG

Panduit StrongHold EV10-14FB-Q Insulated Fork Terminal, Yellow, 1/4" Stud, 12-10 AWG

(No reviews yet) Write a Review

Model: EV10-14FB-Q

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StrongHold EV10-14FB-Q Insulated Fork Terminal, Yellow, 1/4" Stud, 12-10 AWG

The Panduit StrongHold EV10-14FB-Q is a Contractor Grade insulated fork terminal built for reliable, economical performance across general-purpose electrical applications. The fork design allows fast, easy installation without the need to remove the fastener, and the terminal accommodates 12-10 AWG conductors on a 1/4" stud (M6). Finished in yellow insulation for quick visual identification, this terminal is rated to 600V and is UL Listed and CSA Certified for code-compliant installations, and ships in packs of 25.

Key Features

  • Stud Compatibility: Sized for a 1/4" stud (M6) with a 6.4mm stud hole for secure panel and terminal block connections.
  • Wire Range: Accommodates 12-10 AWG (4-6 mm²) copper conductors for flexible use across circuits.
  • Fork Design: Funnel-entry barrel type with an open fork tongue allows fast, easy installation without removing the fastener.
  • Durable Construction: Copper base material with a tin-plated finish for improved corrosion resistance and long-term conductivity.
  • Color-Coded Insulation: Yellow color coding simplifies wire-size identification during installation and maintenance.
  • Voltage & Temperature Rating: Rated up to 600V with a maximum operating temperature of 221°F for demanding environments.
  • Packaging: Supplied in convenient packs of 25 pieces for stocking and job-site use.

Certifications & Compliance

  • UL Listed 587H E52164
  • CSA Certified LR31216

Technical Specifications

  • Maximum Operating Temperature (°F): 221
  • Maximum Voltage (V): 600
  • Minimum Voltage (kV): 0.6
  • Maximum Voltage (kV): 0.6
  • Mercury Content Indicator: N
  • Stud Hole Size (mm): 6.4
  • Tongue Thickness (mm): 1
  • Minimum Metric Conductor Size (mm²): 4
  • Maximum Metric Conductor Size (mm²): 6
  • UOM EA PK: PK
  • Std Package Width In: 3.1
  • REACH Status: N
  • Std Carton Length In: 9.15
  • Std Carton Height In: 4.4
  • Std Package Length In: 4.5
  • Finish/Coating: Tin-Plated
  • Overall Length (mm): 29
  • Country of Origin: Mexico
  • Std Carton Width In: 4.35
  • Std Ctn Qty: 250

Typical Applications

  • General-Purpose Electrical Wire Terminations
  • Stud and Terminal Block Connections in Panels and Enclosures
  • Contractor and Industrial Wiring Installations
  • Use With Panduit CT-Series Crimp Tools (CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500, CT-160, CT-260, CT-400, CT-460)
  • New Construction and Maintenance Rework

Why Panduit?

Panduit's StrongHold line pairs a corrosion-resistant, tin-plated copper base with a fork-tongue design engineered for fast, fastener-free installation, backed by UL Listed and CSA Certified compliance for demanding electrical environments. The result is a Contractor Grade terminal that delivers dependable, code-compliant connections for professional installers who need consistent performance job after job.

Manufacturer Resources

Product Specs

Product Type:
Fork Terminal
Product Finish:
Tin-Plated
Voltage Rating:
600V
Listing:
UL Listed
Standards:
CSA Certified
Country of Origin:
Mexico
Product Material:
Copper
Product Color:
Yellow
Product Size:
1/4"
Department:
Electrical
Product Group:
Wiring Devices
Pack size (unit):
25
Product Subgroup:
Lugs & Terminals

Panduit EV10-14FB-Q – Frequently Asked Questions

1) What wire size does the Panduit EV10-14FB-Q fork terminal take, and how do I know it's the right one?
The EV10-14FB-Q is sized for 12-10 AWG copper conductors (4 to 6 mm2). The yellow insulation is the color code for that range, so on a panel where you also have red (22-16) and blue (16-14) barrels, yellow tells you at a glance you're on the heavy conductor. Put 14 AWG in it and the barrel won't grip properly, so step down to the blue terminal for that.
2) Will this fork terminal fit a 1/4 inch stud or an M6 screw?
Both. The tongue is cut for a 1/4 inch stud, which is the same nominal size as M6, and the stud hole measures 6.4 mm. Slots on terminal blocks and breaker lugs using either fastener will take it.
3) Is the Panduit EV10-14FB-Q rated for 600V control panel work?
Yes, 600V is the rating, with a maximum operating temperature of 221 F. It is UL Listed under 587H E52164 and CSA Certified under LR31216, which covers it for code-compliant commercial and industrial installations.
4) Why use a fork terminal instead of a ring terminal on a terminal block?
The fork tongue is open at the end, so you only back the screw off a turn or two and slide the terminal in, no need to pull the fastener out of the block. That's the reason electricians reach for them on densely packed DIN blocks and control panels. A ring terminal is the safer pick where vibration or a pull on the conductor could work the connection loose, since the closed tongue can't slide off the stud.
5) What crimp tool do I need for these Panduit yellow fork terminals?
Panduit lists the CT-series crimp tools for them: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500, CT-160, CT-260, CT-400 and CT-460. The barrel is funnel entry, which helps guide stranded conductor in without birdcaging before you set the crimp.
6) Will a tin-plated copper terminal hold up in a damp or outdoor enclosure?
The base metal is copper with a tin plating, which is the standard corrosion-resistant finish for terminations in humid or washdown-adjacent enclosures. Tin also keeps the contact surface from oxidizing the way bare copper does, so the connection resistance stays stable over time. Pair it with copper conductor only.
7) How many fork terminals come in a pack, and what is the case quantity?
They ship 25 to a pack, and the standard carton holds 250 pieces. For MRO crib stocking that's ten packs to a carton.
8) What is the exact Panduit part number and how thick is the tongue?
The part number is EV10-14FB-Q, from Panduit's StrongHold Contractor Grade line. The tongue is 1 mm thick with an overall terminal length of 29 mm, which matters if you're stacking two terminals under one screw head or working in a shallow block.
