Sta-Kon RC10-14F INS NY FORK TERM 12-10 BH 1/4IN YEL

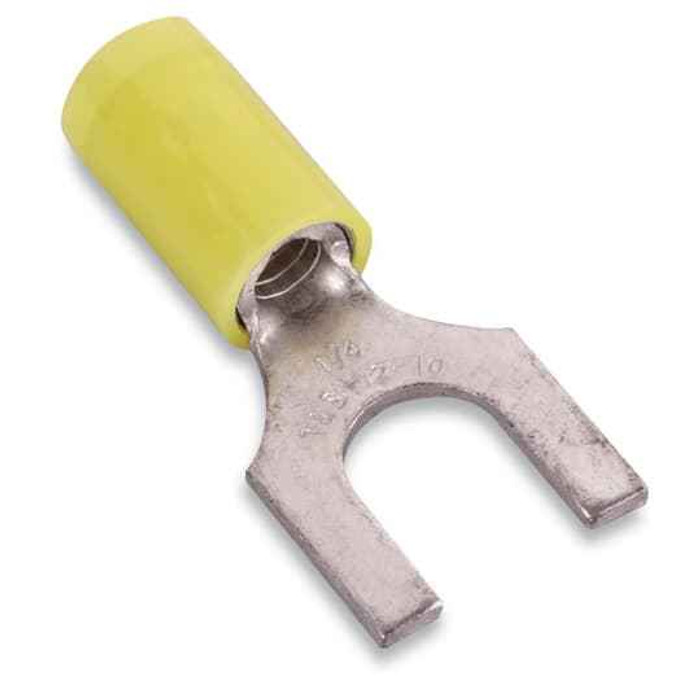

Sta-Kon Nylon Insulated Fork Terminal 12-10 AWG 1/4 Inch Stud Yellow Copper

(No reviews yet) Write a Review

Model: RC10-14F
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.87
$5.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sta-Kon Nylon Insulated Fork Terminal 12-10 AWG 1/4 Inch Stud Yellow Copper

Professional Wire Termination Solution for Reliable Electrical Connections

The Sta-Kon Nylon Insulated Fork Terminal delivers professional-grade wire termination for 12-10 AWG conductors with secure 1/4 inch stud connection capability. Constructed with copper material and yellow nylon insulation, this fork terminal provides reliable electrical connections rated for 600V applications. UL E9809 listed for professional installations requiring dependable wire termination solutions.

Professional Features & Benefits

  • 12-10 AWG Wire Compatibility: Accommodates standard wire gauges for versatile electrical connection applications
  • 600V Voltage Rating: Supports high-voltage applications with reliable insulation performance
  • Copper Construction: Provides excellent conductivity and corrosion resistance for long-term reliability
  • Yellow Nylon Insulation: Color-coded identification with durable insulation protection against environmental factors
  • 1/4 Inch Stud Connection: Standard stud size ensures compatibility with common electrical hardware
  • UL E9809 Listed: Meets rigorous safety standards for professional electrical installations
  • USA Manufacturing: Domestic production ensures consistent quality and reliable supply chain

Technical Specifications

  • Color: Yellow
  • Country Of Origin: United States (US)
  • Department: Electrical
  • Material: Copper
  • Product Group: Wire Termination
  • Product Subgroup: General Terminals
  • Product Type: Nylon Insulated Fork Terminal
  • Standards: UL E9809
  • Voltage Rating: 600 V
  • Wire Size: 12-10 AWG

Installation & Operation

  1. Strip wire insulation to appropriate length following manufacturer specifications for proper conductor exposure.
  2. Insert stripped conductor into terminal barrel ensuring full insertion and proper wire gauge compatibility.
  3. Crimp terminal using appropriate crimping tool designed for the specific terminal type and wire gauge.
  4. Verify secure crimp connection by gently tugging on wire to ensure proper mechanical connection.
  5. Position fork terminal over 1/4 inch stud and secure with appropriate hardware following torque specifications.
  6. Complete installation inspection to verify proper connections and insulation integrity before energizing circuit.

Professional Applications

  • Control Panel Wiring and Equipment Connections
  • Motor Control Centers and Electrical Enclosures
  • Industrial Machinery and Automation Systems
  • Commercial Building Electrical Systems
  • Maintenance and Repair Operations
  • Electrical Contractor and Service Work

Why Choose Sta-Kon Quality?

Sta-Kon fork terminals combine reliable copper construction with durable nylon insulation to deliver consistent performance in demanding electrical applications. UL E9809 listing ensures compliance with professional installation standards, while USA manufacturing provides quality assurance and dependable supply. The 600V rating and precise wire gauge compatibility make these terminals suitable for a wide range of electrical connection requirements.

Manufacturer Resources

Product Specs

Country Of Origin:
United States (US)
Product Subgroup:
General Terminals
Product Type:
Nylon Insulated Fork Terminal
Standards:
UL E9809
Voltage Rating:
600 V
Wire Size:
12-10 AWG
Department:
Electrical
Product Group:
Wire Termination
Product Color:
Yellow
Product Material:
Copper

Sta-Kon RC10-14F – Frequently Asked Questions

1) What wire size does the Sta-Kon RC10-14F fork terminal take?
The RC10-14F is sized for 12-10 AWG copper conductors, which is why the insulation is yellow. Yellow is the standard color code for the 12-10 range on insulated terminals, so on a panel you can tell at a glance which barrel size you grabbed. Run it on 14 AWG or smaller and the crimp will not hold the strands properly.
2) Will a Sta-Kon RC10-14F fork terminal fit a 1/4 inch terminal block stud?
Yes. The tongue is cut for a 1/4 inch stud, so it slips over a 1/4-20 or 1/4 inch screw on a terminal block, breaker lug, or motor starter without loosening the screw all the way out. That is the whole point of a fork over a ring: you back the screw off a couple of turns and slide it in.
3) Is this Sta-Kon terminal rated for 600 volt control circuits?
The nylon-insulated fork terminal carries a 600 V rating and is UL listed under file E9809, which covers the typical 480 V motor control center and 120/277 V commercial panel work it gets used on.
4) Fork or ring terminal for control panel wiring?
A fork terminal like the RC10-14F goes on and comes off without removing the screw, which saves time on control panel and motor control center terminations where you are landing and relanding wires. A ring terminal is captive and cannot slip off under vibration, so it is the better choice on motor leads, battery posts, and anything that shakes. For panel and enclosure work the fork is the usual call.
5) Do I need a special crimper for Sta-Kon nylon insulated terminals?
Use a crimp tool made for insulated terminals in the 12-10 AWG range, matched to the yellow color code nest. A nylon-insulated barrel needs the insulated die, not the open-barrel or uninsulated die, or you cut the sleeve instead of compressing the barrel. After crimping, tug-test the wire before you land it on the stud.
6) Is the Sta-Kon RC10-14F made in the USA, and does that matter for a government job?
Country of origin is the United States. On federally funded or Buy American specified work that is usually the deciding detail on an electrical accessory, so it is worth noting alongside the UL E9809 listing when you submit.
7) Can I use this terminal on aluminum wire?
No. The barrel on the RC10-14F is copper and it is specified for copper conductors only. Aluminum needs a terminal listed AL9CU or CU/AL with the appropriate inhibitor; putting aluminum into a copper-only barrel invites a corroded, high-resistance joint.
8) Why nylon insulation instead of vinyl on a wire terminal?
Nylon takes abrasion and handling better than vinyl and resists cracking when the sleeve is flexed during installation, which matters in a crowded enclosure where wires get bent and pulled. The RC10-14F uses a yellow nylon sleeve over a copper barrel.
