Panduit EV14-6FB-Q StrongHold, EV14-6FB-Q Loose Piece Forks, Blue, Vinyl, 1/8" Stud, 16-14 AWG

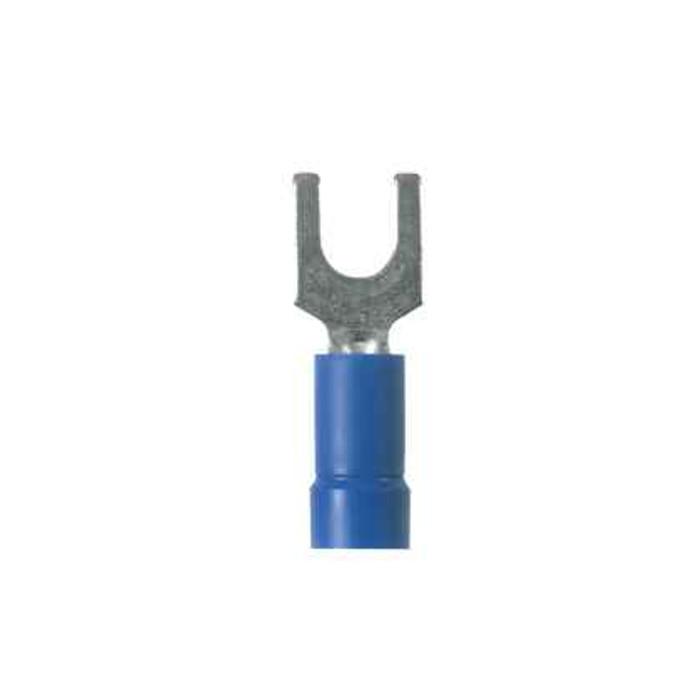

Panduit StrongHold Fork Terminal 16-14 AWG Blue Vinyl Insulated #6 Stud

(No reviews yet) Write a Review

Model: EV14-6FB-Q
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.54
$18.35
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StrongHold Fork Terminal 16-14 AWG Blue Vinyl Insulated #6 Stud

Professional Electrical Connection Solution with UL Listed Quality

The Panduit StrongHold Fork Terminal delivers reliable electrical connections for 16-14 AWG wire applications with professional-grade vinyl insulation and tin-plated copper construction. This blue-coded terminal features a #6 stud size with funnel entry barrel design for secure wire insertion and optimal conductivity in electrical installations.

Professional Features & Benefits

  • 16-14 AWG Wire Range: Accommodates standard electrical wire sizes for versatile connection applications
  • 600V Maximum Voltage Rating: Provides reliable performance in standard electrical systems with professional voltage capacity
  • Tin-Plated Copper Construction: Ensures excellent conductivity and corrosion resistance for long-term reliability
  • Blue Vinyl Insulation: Offers color-coded identification and electrical protection with 105�C temperature rating
  • #6 Stud Compatibility: Standard stud size for common electrical connection points and terminal blocks
  • UL Listed Certification: Meets UL 587H standards for safety and performance in electrical applications
  • Funnel Entry Barrel: Facilitates easy wire insertion and secure connection during installation

Technical Specifications

  • Barrel Length In: 0.42
  • Barrel Length Mm: 10.7
  • Barrel Type: Funnel Entry
  • Base Material: Copper
  • Color Code: Blue
  • Country Of Origin: Mexico
  • Ean: 6.13056E+11
  • Finish Coating: Tin-Plated
  • Flammability Rating: UL587-H
  • For Use With: CT-100A, *CT-160, *CT-260, *CT-200, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551,
  • Fork Type: Standard
  • Gtin Carton: 5.06131E+13
  • Gtin Package: 6.13056E+11
  • Hazardous Material Flag: N
  • Insulation Diameter In: 0.17
  • Insulation Diameter Mm: 4.3
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size Awg: 14
  • Maximum Copper Conductor Size Awg Sol: 14
  • Maximum Copper Conductor Size Awg Str: 14
  • Maximum Metric Conductor Size Mm: 2.5
  • Maximum Operating Temperature C: 105
  • Maximum Operating Temperature F: 221
  • Maximum Voltage Kv: 0.6
  • Maximum Voltage V: 600
  • Maximum Wire Insulation Diameter In: 0.17
  • Maximum Wire Insulation Diameter Mm: 4.3
  • Maximum Wire Size Awg: 14
  • Mercury Content Indicator: N
  • Min Order Qty: 250
  • Minimum Copper Conductor Size Awg: 16
  • Minimum Copper Conductor Size Awg Sol: 16
  • Minimum Copper Conductor Size Awg Str: 16
  • Minimum Metric Conductor Size Mm: 1.5
  • Minimum Operating Temperature C: 105
  • Minimum Operating Temperature F: 221
  • Minimum Voltage Kv: 0.6
  • Minimum Voltage V: 600
  • Minimum Wire Size Awg: 16
  • Overall Length In: 0.84
  • Overall Length Mm: 21.3
  • Overall Width In: 0.28
  • Overall Width Mm: 7.1
  • Packaging Type: Loose Piece
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Product Segment: IEI
  • Product Type: Fork Terminal
  • Reach Status: N
  • Rohs Compliant: Compliant
  • Seam Type: Butted
  • Standard Carton Volume Ft3: 0.1031
  • Standard Carton Weight Pounds: 0.5
  • Standard Package Volume Ft3: 0.0103
  • Standard Package Weight Pounds: 0.05
  • Std Carton Height In: 4.35
  • Std Carton Height Mm: 110.49
  • Std Carton Length In: 9.1
  • Std Carton Length Mm: 231.14
  • Std Carton Width In: 4.4
  • Std Carton Width Mm: 111.76
  • Std Ctn Qty: 250
  • Std Package Height In: 0.65
  • Std Package Height Mm: 16.51
  • Std Package Length In: 4.6
  • Std Package Length Mm: 116.84
  • Std Package Width In: 2.7
  • Std Package Width Mm: 68.58
  • Std Pkg Qty: 25
  • Std Pkg Uom: Piece
  • Stud Hole Size In: #6
  • Stud Hole Size Mm: 3.2
  • Stud Size: #6
  • Tongue Length In: 0.42
  • Tongue Length Mm: 10.7
  • Tongue Thickness In: 0.03
  • Tongue Thickness Mm: 0.8
  • Tongue Width In: 0.28
  • Tongue Width Mm: 7.1
  • Wire Strip Length In: 16-May
  • Wire Strip Length Mm: 7.9

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electrical Panel Connections
  • Control Circuit Wiring
  • Terminal Block Applications
  • Industrial Equipment Connections
  • Commercial Electrical Systems
  • Maintenance and Repair Operations
  • Professional Electrical Installations

Why Choose Panduit Quality?

Panduit StrongHold terminals provide professional-grade reliability with UL Listed certification and CSA approval for safety assurance. The tin-plated copper construction and vinyl insulation deliver long-term performance in demanding electrical applications, backed by Panduit's commitment to quality electrical connection solutions.
