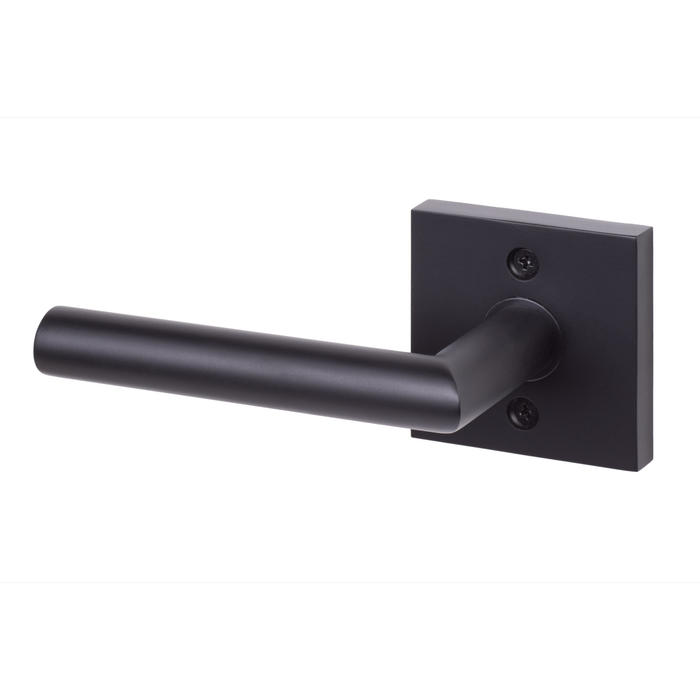

Sure-Loc Hanover 28° Lever Square Leverset with Push-Pin Privacy Locking

Sure-Loc Hanover 28° Lever Square Leverset with Push-Pin Privacy Locking

(No reviews yet) Write a Review

Model: HV100-SQ 32D
From the Ridgecrest Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.20
$31.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sure-Loc Hanover 28° Lever Square Leverset with Push-Pin Privacy Locking

The Sure-Loc Hanover 28° Lever Square combines the Hanover lever design with a clean square rosette for a modern look on interior doors. Part of the Ridgecrest collection, this tubular leverset fits standard doors 1-3/8" to 2" (35-50mm) thick and features a 28° lever turn radius for smooth, reduced-motion operation. Reversible handing and a choice of 2-3/8" or 2-3/4" (60-70mm) non-adjustable backset make it easy to specify for passage, privacy, or dummy applications, while push-pin privacy locking provides simple, keyless security for bedrooms, bathrooms, and similar residential spaces.

Key Features

  • Door Thickness Compatibility: Fits standard doors 1-3/8" to 2" (35-50mm) thick for versatile residential installation.
  • Backset Options: Available in 2-3/8" or 2-3/4" (60-70mm) backset, non-adjustable, so the correct backset must be specified at time of order.
  • 28° Lever Turn Radius: A reduced-motion 28° lever turn radius delivers smooth, comfortable operation for everyday residential use.
  • Reversible Handing: Field-reversible design adapts to left- or right-hand door configurations without additional hardware.
  • Push-Pin Privacy Locking: A simple push-pin mechanism provides keyless privacy locking for bedrooms, bathrooms, and similar spaces.
  • Non-Keyed Operation: Offered in Dummy, Passage, and Privacy functions (Product Model HV100-SQ / HV101-SQ / HV102-SQ) with no keyed cylinder required.
  • Drive-In Latch Option: A compatible drive-in latch is available for the 2-3/8" backset configuration for streamlined installation.
  • Tubular Lock Construction: Bored, tubular lockset construction from the Ridgecrest collection suited to interior residential doors.

Technical Specifications

  • Collection: Ridgecrest
  • Department: Door Hardware
  • Subcategory: Levers
  • Commercial/Residential: Residential
  • Electronic: No
  • Product Group: Mechanical Locks
  • Product Category: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Type: Leversets
  • MAP Policy: None
  • Lock Type: Tubular
  • Keyed: No
  • Keyed Function: Non-Keyed
  • Lock Function: Dummy, Passage, Privacy
  • Product Function: Leversets
  • Product Model: HV100-SQ / HV101-SQ / HV102-SQ

Typical Applications

  • Single-Family Homes
  • Multi-Family Residential Properties
  • Interior Passage and Privacy Doors
  • Bedrooms and Bathrooms
  • Closets and Utility Rooms
  • New Construction and Renovation Projects
  • Apartment and Condominium Units

Why Sure-Loc Hanover?

Sure-Loc Hanover leversets are built with tubular lock construction and a precise 28° turn radius for smooth, reliable operation on interior doors. Reversible handing and non-adjustable backset options simplify specification, while the push-pin privacy function offers dependable, keyless security for everyday residential use.

Manufacturer Resources

Product Specs

Series:
Hanover 28°
Department:
Door Hardware
Subcategory:
Levers
Commercial/Residential:
Residential
Electronic:
No
Product Group:
Mechanical Locks
Product Category:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Handle Type:
Lever
MAP Policy:
None
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Lock Function:
Dummy, Passage, Privacy
Product Function:
Leversets
Product Model:
HV100-SQ / HV101-SQ / HV102-SQ
Product Shape:
Square
Collection:
Ridgecrest

Sure-Loc HV100-SQ 32D – Frequently Asked Questions

1) Do I have to pick a backset when I order the Hanover Square leverset?
Yes, and it matters. The backset is offered as either 2-3/8 inch or 2-3/4 inch (60-70mm) and it is non-adjustable, so measure from the door edge to the center of the bore before ordering. Most residential doors are bored at 2-3/8 inch; 2-3/4 inch shows up on heavier or commercial-style prep. Order the wrong one and the lock will not line up with the existing hole.
2) Is the Sure-Loc Hanover lever handed, or can I use it on either swing?
It is field reversible. The same leverset works on a left-hand or right-hand door with no extra parts ordered, so a property manager can stock one item and cover every interior opening in the building.
3) What is the difference between the dummy, passage, and privacy versions of the Hanover Square lever?
Three non-keyed functions. Passage (HV101-SQ) latches but never locks, for halls and closets. Privacy (HV102-SQ) adds a push-pin lock on the inside for bedrooms and bathrooms, keyless. Dummy (HV100-SQ) is a fixed pull with no latch at all, used on closet or french door leaves that are held by a ball catch or roller. None of them takes a key cylinder.
4) Will this Sure-Loc lever drop into the standard bore left by an old knob set?
It is a bored tubular lockset, the same family as a standard residential knob or lever, so it installs in the usual cross-bore and edge bore prep. The one thing you must match is the backset, 2-3/8 or 2-3/4 inch, since it is non-adjustable and the existing latch hole fixes which one you need.
5) Which lever handles a 2 inch thick door if the Sure-Loc Hanover 28 degree Lever Square does not fit my opening?
The Hanover 28 degree Lever Square covers 1-3/8 to 2 inch doors. If the door is thicker, the Falcon K101 Grade 1 passage lock covers 1-3/8 to 2-1/4 inches. If it is thinner, the Lockey 1150 mechanical keypad lever set covers 1-1/8 to 2 inches. For a straight 1-3/4 inch door, the Design Hardware X75 is a Grade 1 passage lever and the J75 a Grade 2, both with flat levers.
6) What is a comparable privacy lever to the Sure-Loc Hanover 28 degree Lever Square for a bedroom or bathroom door?
The Sure-Loc Hanover 28 degree Lever Square offers a privacy function with push-pin locking for doors 1-3/8 to 2 inches thick. Close alternatives in privacy/bed/bath function include the Kwikset 300BRNL RDT Breton Privacy Lever Set, a Grade 3 lever for doors 1-3/8 to 1-3/4 inches thick, the Hager 2540 with Withnell lever at Grade 2 for doors 1-3/8 to 2 inches, and the Baldwin Estate 5103 Privacy Lever with 5048 rose. The Hanover uses a square rosette; the Breton, 2540 and 5103 use round trim.
7) I need a passage lever for a hall or closet door - what else works besides the Sure-Loc Hanover 28 degree Lever Square?
The Hanover 28 degree Lever Square is sold in a passage version for doors 1-3/8 to 2 inches thick. Other non-keyed passage levers include the Hager 2510 Grade 2 with Withnell design, also rated for 1-3/8 to 2 inch doors, the Kwikset 200BRNL RDT Breton Grade 3 passage lever for 1-3/8 to 1-3/4 inch doors, the Bravura Tampa Grade 2 passage leverset with square trim, and the Callan Asheville Grade 3 passage leverset in satin nickel.
8) What finishes does the Sure-Loc Hanover Square lever come in?
Three: 32D Satin Stainless, BBS Brushed Brass, and FBL Flat Black. All three are offered in every function, so a dummy, passage, and privacy lever on the same floor can be matched exactly.
9) Can I get a drive-in latch instead of a faceplate latch for this leverset?
Yes, but only on the 2-3/8 inch backset version. A compatible drive-in latch is offered for that configuration, which saves mortising the door edge on new bores. The 2-3/4 inch backset is faceplate latch only.
10) Is the Sure-Loc Hanover 28 degree Lever Square handed like the Baldwin Estate 5103?
No. The Sure-Loc Hanover 28 degree Lever Square is field-reversible and adapts to a left- or right-hand door without extra hardware, so one part number covers either swing. The Baldwin Estate 5103 half dummy is ordered as a distinct left hand or right hand item, which means handing has to be confirmed before the order goes in. The Falcon B101 and K101 passage locks are described as non-handed.
11) What does the 28 degree lever turn radius actually mean for the user?
The lever only has to rotate 28 degrees to retract the latch instead of the wider swing on a conventional lever. Less wrist motion, which is easier for kids and older residents, and it is a noticeable difference on bathroom doors where you are often operating the lever with one hand full.
