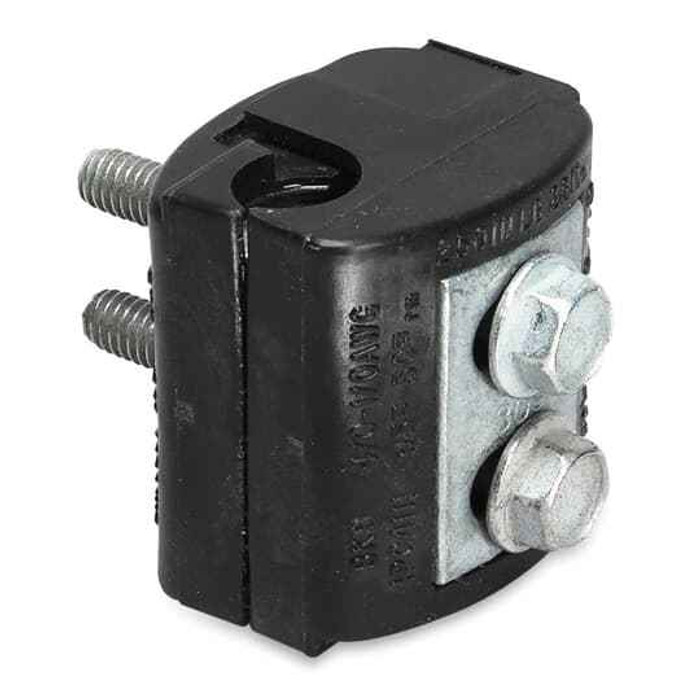

TALON INSUL CONN 4/0-1/0 1/0-6
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Insulated Conductor Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Temperature Range:
- Max 90 °C
- Type2:
- Mechanical connectors
- Voltage Rating:
- 300 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
Blackburn IPC4111 – Frequently Asked Questions
1) What wire sizes does the Blackburn IPC4111 Talon insulated connector take?
The IPC4111 is a two-port insulated tap connector: the run port takes 4/0 through 1/0, and the tap port takes 1/0 through 6 AWG. So it is built for tapping a smaller branch conductor off a large feeder without cutting the run.
2) Can I use the IPC4111 on 600V feeders in a panel?
No. The IPC4111 carries a 300 V rating, so it is not suitable for 600 V circuits. For a tap on a 600 V feeder you need a connector rated 600 V or higher.
3) Is this Talon connector rated for 90 degree C THHN conductors?
Yes. The IPC4111 is rated to a maximum of 90 degrees C, which covers THHN/THWN-2 conductors terminated at their 90 C insulation rating.
4) Do I need to tape or boot this connector after making the tap?
No separate insulating is needed for the connector body. The IPC4111 is an insulated mechanical connector, so the insulation is part of the device rather than something you add with tape or a cover. It is a mechanical (set-screw type) connector, not a compression lug, so no crimp tool or die set is required either.
5) What color is the Blackburn Talon IPC4111 body, and where is it made?
Black insulation body, manufactured in Mexico. The black housing is useful when you want taps to look consistent across a gutter or trough full of connectors.
