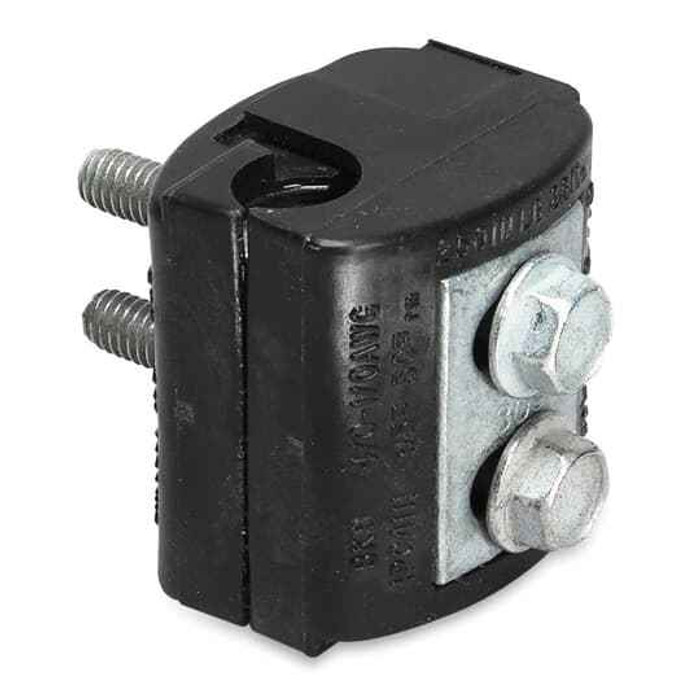

TALON INSUL CONN 4/0-1/0 4/0-1/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Insulated Conductor Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Temperature Range:
- Max 90 °C
- Type2:
- Mechanical connectors
- Voltage Rating:
- 300 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
Blackburn IPC4141 – Frequently Asked Questions
1) What wire sizes does the Blackburn IPC4141 Talon insulated connector take?
The IPC4141 accepts 4/0 through 1/0 on both the run and the tap side, so it joins two conductors anywhere in that range, including 4/0 to 1/0 combinations. It is a mechanical connector, sold one each.
2) Is the Blackburn IPC4141 rated for 600 volt feeder taps?
No. The IPC4141 carries a 300 V rating, so it is not the right part for a 600 V feeder or service tap. For 600 V work you need a connector rated at that voltage.
3) Can the IPC4141 insulated connector be used on 90 degree C rated conductors like THHN or XHHW?
Yes. The Talon IPC4141 is rated to a maximum conductor temperature of 90 degrees C, which covers 90 C rated building wire, provided the circuit stays within its 300 V rating.
4) Do I need to tape or re-insulate after installing the IPC4141?
No separate taping is needed. The IPC4141 is an insulated conductor connector, so the black insulating body is part of the device rather than something you build up with tape afterward.
5) Is the IPC4141 a crimp connector or a set screw type?
It is a mechanical connector, so the conductors are clamped rather than compressed with a crimp tool. No hydraulic or battery crimper is required to make the connection.
6) Does the Blackburn IPC4141 come in a multi-pack or singly?
It is sold as each, so quantity one gets you a single connector. Count one per splice or tap point when you are ordering for a job.
7) Where is the Blackburn Talon IPC4141 made?
Country of origin is Mexico, which is the detail procurement groups with domestic-content or trade-compliance reporting usually need on file.
