Leviton M58AC-HGW Hospital-Gra...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$195.13
$166.20

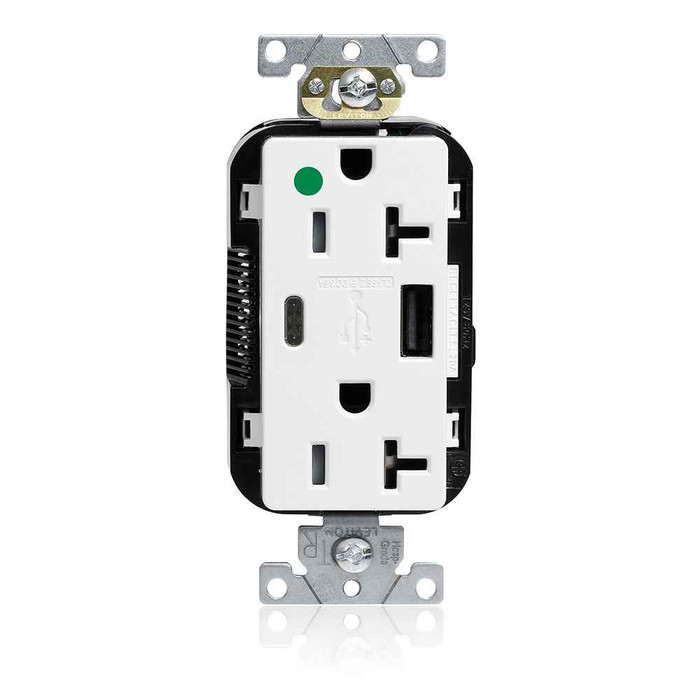

Leviton M58AC-HGW Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Hospital Grade, White - Lev-Lok

Leviton M58AC-HGW Hospital-Grade Tamper-Resistant USB-A/C Receptacle, 20A 125V, White, Lev-Lok

(No reviews yet) Write a Review

Model: M58AC-HGW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$195.13
$166.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton M58AC-HGW Hospital-Grade Tamper-Resistant USB-A/C Receptacle, 20A 125V, White, Lev-Lok

The Leviton M58AC-HGW is a Hospital-Grade Tamper-Resistant Combination Device Receptacle with USB Type A and Type C ports, part of the Lev-Lok modular wiring system. Rated 20 Amp 125 Volt, this 2-pole, 3-wire, self-grounding receptacle delivers 25W total USB charging. Built with a PBT body and Thermoplastic face in White, it meets NEMA WD-1 and WD-6.

Key Features

  • USB Charging Ports: Type A and Type C, 5.1A USB charger, 15W single-port and 25W total charging power.
  • Tamper-Resistant Design: Acetal shutter mechanism blocks foreign object insertion.
  • Hospital Grade: Heavy-Duty Hospital Grade, certified for full-rated current and voltage.
  • Electrical Rating: 20 Amp, 125 VAC, 2-pole, 3-wire modular termination.
  • Durable Materials: PBT body, Thermoplastic face, brass ground clips/contacts, solid brass locking pins.
  • Through-Strap Mounting: Galvanized steel strap, #6 plated steel screws, self-grounding.
  • Dielectric & Thermal: 2000 VAC dielectric, max 30°C rise, 40°C to -10°C operating range.
  • Flammability: Rated V-0 per UL 94.

Certifications & Compliance

  • NEMA WD-1 and WD-6 Compliant
  • Heavy-Duty Hospital Grade Certification
  • Full-Rated Current Interrupting Certification
  • Flammability Rated V-0 per UL 94

Technical Specifications

  • Body Material: PBT
  • Current Interrupting: Certified for full-rated current and voltage
  • Device Type: Combination Device
  • Dielectric Voltage: 2000 VAC
  • Face Material: Thermoplastic
  • Ground Clips: Brass
  • Ground Contacts: Brass
  • Horsepower Rating: 1 hp
  • Locking Pins: Solid Brass
  • Mounting Screws: #6 Plated Steel
  • Mounting Strap: Galvanized Steel
  • Operating Temperature: Maximum Continuous 40°C, Minimum -10°C (w/o impact)
  • Shutter Material: Thermoplastic
  • Shutter Mechanism: Acetal
  • Single Port Charging Power: 15W
  • Strap Construction: Through-Strap
  • Temperature Rise: Max 30°C
  • Total Charging Power: 25W
  • Usb Cable Compatible: Type A and Type C
  • Usb Charger: 5.1A
  • Grounding: Self-Grounding
  • Nema: WD-1 and WD-6
  • Pole: 2
  • Termination: Modular
  • Wire Count: 3
  • Product Voltage: 125 VAC

Typical Applications

  • Healthcare and Hospital Facility Wiring
  • Commercial and Institutional Electrical Systems
  • Workstation USB Charging
  • Modular Lev-Lok Installations

Why Leviton?

Leviton engineers the M58AC-HGW with a durable PBT body, brass ground contacts and locking pins, and a galvanized steel through-strap for dependable performance. Its Hospital Grade certification, full-rated current interrupting rating, and V-0 flammability rating suit professional installations needing power delivery and USB charging.

Manufacturer Resources

Technical Information

Product Specs

Body Material:
PBT
Current Interrupting:
Certified for full-rated current and voltage
Device Type:
Combination Device
Dielectric Voltage:
2000 VAC
Face Material:
Thermoplastic
Ground Clips:
Brass
Ground Contacts:
Brass
Horsepower Rating:
1 hp
Locking Pins:
Solid Brass
Mounting Screws:
#6 Plated Steel
Mounting Strap:
Galvanized Steel
Operating Temperature:
Maximum Continuous 40°C, Minimum -10°C (w/o impact)
Product Id:
Ratings are marked on device
Shutter Material:
Thermoplastic
Shutter Mechanism:
Acetal
Single Port Charging Power:
15W
Strap Construction:
Through-Strap
Temperature Rise:
Max 30°C
Total Charging Power:
25W
Usb Cable Compatible:
Type A and Type C
Usb Charger:
5.1A
Product Group:
Outlets
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Amperage Rating:
20 A
Feature:
USB Type A and USB Type C, Tamper-Resistant
Flammability Class:
Rated V-0 per UL 94
Grade:
Heavy-Duty Hospital Grade
Grounding:
Self-Grounding
Nema:
WD-1 and WD-6
Pole:
2
Termination:
Modular
Wire Count:
3
Series:
Lev-Lok
Product Voltage:
125 VAC
Product Color:
White
Product Type:
Receptacle
