Thomas & Betts RB14-8F Insulated Nylon Fork Terminal 18-14 AWG #8 Stud Blue
Professional Electrical Connection Solution with Enhanced Conductor Protection
Thomas & Betts delivers reliable electrical connectivity with this RB14-8F insulated nylon fork terminal, designed for 18-14 AWG wire range and #8 stud applications. Featuring electro tin-plated copper construction with blue color-coded nylon insulation, this terminal provides secure connections rated for 600V and 105�C operation with UL and CSA certifications for professional electrical installations.
Professional Features & Benefits
- 18-14 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications across residential and commercial projects.
- 600V Voltage Rating: Handles high-voltage applications safely with reliable insulation protection for demanding electrical systems.
- 105�C Temperature Rating: Withstands elevated operating temperatures for consistent performance in challenging thermal environments.
- Electro Tin-Plated Copper: Provides superior conductivity and corrosion resistance for long-lasting electrical connections.
- Inner Bronze Insulation Grip Sleeve: Lengthens flex radius of conductor and eliminates conductor creep for enhanced connection integrity.
- Blue Color-Coded Nylon Jacket: Enables quick wire gauge identification and provides durable insulation protection.
- UL and CSA Certifications: Meets rigorous safety standards for professional electrical installations and code compliance.
Technical Specifications

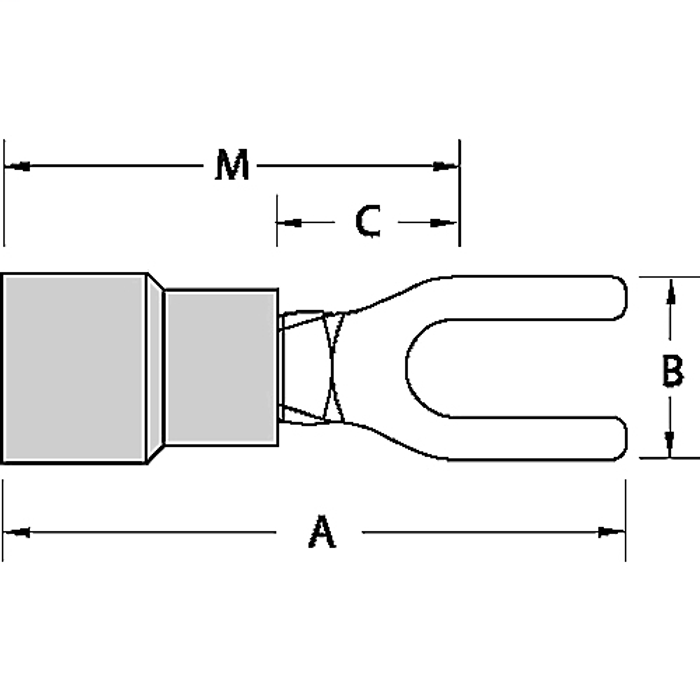

- A Inches: 0.87
- Alternate Package Qty: RB1123
- Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A
- B Inches: 0.31
- C Inches: 0.25
- Color: Blue
- Department: Electrical
- Flammability Rating: UL 94 V-2
- Inner Package: 100
- Insulation Type: Insulated Nylon
- M Inches: 0.71
- Material: Copper
- Maximum Insulation Inches: 0.162
- Order Multiple: 100
- Outer Package: 500
- Package Height: 8.9
- Package Length: 15.1
- Package Type: Standard
- Package Width: 9.4
- Product Finish: Electro Tin-Plated
- Product Group: Terminals
- Product Subgroup: Insulated Terminals
- Recommended Tool: ERG4001
- Rohs Compliance: Yes
- Stock Thickness: 0.03
- Stud Size: #8
- T B Sold In Uom: Each
- T B Weight Per Uom: 6.88 lbs. per 1000
- Temperature Rating: 105�C
- Terminal Series: RB
- Voltage Rating: 600V
- Wire Range: 18-14
Professional Applications
- Residential Electrical Panels and Distribution Systems
- Commercial Building Electrical Connections
- Industrial Control Panel Wiring
- Motor Control Center Applications
- Electrical Equipment Grounding Connections
- Professional Electrical Maintenance and Repair
Why Choose Thomas & Betts Quality?
Thomas & Betts delivers proven reliability with UL and CSA certifications, ensuring code compliance and professional performance. The RoHS compliant construction and UL 94 V-2 flammability rating demonstrate commitment to safety and environmental responsibility for demanding electrical applications.
Manufacturer Resources
Product Specs
- A Inches:
- 0.87
- Alternate Package Qty:
- RB1123
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A
- B Inches:
- 0.31
- C Inches:
- 0.25
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Insulated Nylon
- M Inches:
- 0.71
- Maximum Insulation Inches:
- 0.162
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.9
- Package Length:
- 15.1
- Package Type:
- Standard
- Package Width:
- 9.4
- Product Group:
- Wire Connectors & Terminals
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- #8
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 6.88 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RB
- Voltage Rating:
- 600V
- Wire Size:
- 18-14
- Department:
- Electrical
- Product Subgroup:
- Lugs & Terminals
- Product Finish:
- Electro Tin-Plated
- Product Color:
- Blue
- Product Material:
- Copper
- Product Type:
- Fork Terminal
Thomas & Betts RB14-8F – Frequently Asked Questions
1) Will the Thomas & Betts RB14-8F fork terminal work on 16 AWG stranded control wire?
Yes. The RB14-8F covers an 18 to 14 AWG wire range, so 16 AWG sits in the middle of the barrel range. The blue nylon jacket is the standard color code for that range, which is why these are quick to sort on a panel job. Maximum insulation diameter the barrel will accept is 0.162 inches.
2) What stud or screw size does the RB14-8F fork terminal fit?
It is sized for a #8 stud. The fork tongue measures 0.31 and 0.25 inches across the published B and C dimensions, with overall A at 0.87 inches, so check the terminal block spacing if you are landing several side by side on tight centers.
3) What crimp tool do I need for the Thomas & Betts RB terminals?
Thomas & Betts lists the ERG4001 as the recommended tool for the RB14-8F. Also approved: WT145C, WT2000, WT112M, ERG4003, and WT145A. Use one of those rather than a generic plier crimper, since the insulation grip sleeve inside the barrel needs a proper die to form correctly.
4) Should I use a fork terminal or a ring terminal on a control panel terminal block?
A fork (spade) terminal like the RB14-8F slides in under a loosened #8 screw without removing it, which is why it is the common choice on terminal strips and control panels you expect to service. A ring terminal has to come off over the stud, but it cannot vibrate out. For motor connections and grounding points subject to vibration, go ring; for serviceable terminal blocks, the fork is faster.
5) How many RB14-8F terminals come in a pack and can I buy fewer than 100?
They ship 100 to the inner pack with an order multiple of 100, so 100 is the smallest quantity. The outer carton holds 500. Useful if you are stocking a truck or an MRO crib rather than buying for one job.
6) Are these terminals copper or aluminum, and will they hold up in a damp or corrosive location?
The barrel and tongue are copper with an electro tin-plated finish, which is the standard plating for corrosion resistance on copper conductors. Stock thickness is 0.030 inches. They are copper-only terminals, so do not use them to terminate aluminum conductors; that needs a dual-rated AL9CU connector.
7) Are the Thomas & Betts RB14-8F terminals RoHS compliant?
Yes, RoHS compliant. That matters if you are supplying into equipment builds or export panels where the bill of materials has to be documented.
