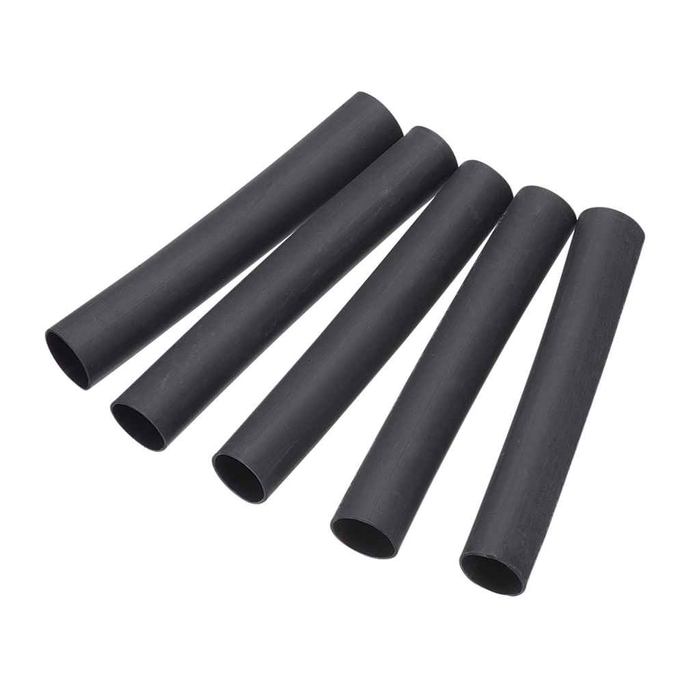

Ideal Industries Heavy-Wall Heat Shrink Tubing 6-1 AWG 600V 6 Inch Length Adhesive Lined

Ideal Industries Heavy-Wall Heat Shrink Tubing 6-1 AWG 600V 6 Inch Length Adhesive Lined

(No reviews yet) Write a Review

Model: 46-347
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.26
$25.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries Heavy-Wall Heat Shrink Tubing 6-1 AWG 600V 6 Inch Length Adhesive Lined

Professional-Grade Thermo-Shrink Heavy-Wall Insulation Protection

The Ideal Industries Heavy-Wall Heat Shrink Tubing delivers professional-grade electrical insulation performance for critical splice protection applications. This irradiated cross-linked polyolefin heat shrink tubing features adhesive liner technology designed for electricians, telecommunications professionals, and electrical contractors, providing the reliable performance and industry-leading quality that electrical professionals demand for 600V applications.

Professional Features & Benefits

Advanced Insulation Performance

  • Heavy-Wall Construction - Superior mechanical protection with maximum flame retardancy for demanding electrical environments
  • Adhesive Liner Technology - Complete insulation and protection for electrical splices in above-grade, underground, and underwater applications
  • 3:1 Shrink Ratio - Optimal coverage and sealing performance with TS-46 irradiated cross-linked polyolefin material
  • 600V Rating - Professional voltage rating with 90°C continuous use temperature for electrical installations

Safety & Code Compliance

  • UL 486D Listed - Meets stringent electrical safety standards for professional installations
  • CSA C22.2 No. 198.2 Certified - Canadian electrical code compliance for commercial and industrial applications
  • ANSI C119.1 Compliant - American National Standards Institute electrical connection requirements
  • IEEE 383 Flame Test - Vertical flame test certification for electrical safety applications

Technical Specifications

Wire Range: 6-1 AWG capacity, 6-inch length for versatile splice coverage, 600V voltage rating with 90°C continuous operating temperature, irradiated cross-linked polyolefin construction with adhesive liner, 3:1 standard shrink ratio, meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4 and 2.5, MIL-DTL-23053/15, IEEE 383, ANSI C37.20.2, ICEA S-19-8, and NEMA insulation thickness requirements.

Installation & Setup

  1. Select appropriate tubing size for wire gauge and splice configuration ensuring proper fit
  2. Slide tubing over splice area before making electrical connection for optimal positioning
  3. Complete electrical splice using approved connectors and proper torque specifications
  4. Position tubing to center over splice connection with equal coverage on both sides
  5. Apply controlled heat using professional heat gun starting from center and working outward
  6. Verify complete shrinkage and adhesive activation for waterproof seal formation

Professional Applications

Ideal for:

  • Underground Electrical Systems - Direct burial applications requiring moisture protection and mechanical durability
  • Underwater Installations - Submersible electrical connections with complete environmental sealing
  • Industrial Wiring - Heavy-duty electrical splices in manufacturing and processing facilities
  • Commercial Construction - Building electrical systems requiring code-compliant splice protection
  • Utility Applications - Power distribution systems with high-voltage splice requirements
  • Telecommunications Infrastructure - Critical communication system connections requiring long-term reliability
  • Marine Electrical - Saltwater environment protection for boat and dock electrical systems
  • HVAC Systems - Climate control electrical connections requiring temperature and moisture resistance

Thermo-Shrink Technology Advantage

Ideal Industries Thermo-Shrink technology provides superior electrical splice protection through precision-engineered irradiated cross-linked polyolefin construction. The integrated adhesive liner creates a complete environmental seal while the heavy-wall design delivers maximum mechanical protection and flame retardancy for critical electrical applications.

Why Choose Ideal Industries Quality?

Ideal Industries demonstrates unwavering commitment to electrical safety through comprehensive UL 486D listing, CSA certification, and ANSI compliance. Our heavy-wall heat shrink tubing meets the most demanding electrical codes including IEEE 383 flame testing and NEMA insulation requirements, ensuring reliable performance and code compliance for electrical professionals in the most challenging environments.

Manufacturer Resources

Product Specs

Product Group:
Cable Management & Identification
Department:
Electrical
Product Subgroup:
Electrical Sleeves
Product Type:
Heat Shrink Tubing

Ideal Industries 46-347 – Frequently Asked Questions

1) What wire size does Ideal 46-347 heat shrink tubing cover?
The Ideal Thermo-Shrink heavy-wall tubing, model 46-347, is sized for splices on 6 through 1 AWG conductors. Each piece is 6 inches long, so you get roughly 3 inches of coverage on either side of a centered splice. Below 6 AWG or above 1 AWG you want a different size in the range.
2) Can this heat shrink be direct buried or used underwater?
Yes. The adhesive liner melts during shrinking and forms a complete environmental seal, which is why Ideal rates this heavy-wall tubing for above-grade, underground direct burial, and underwater splices. Heat it until the adhesive flows and shows at the ends, otherwise the seal is not made.
3) Does this heat shrink tubing meet UL and CSA requirements for a commercial job?
It is UL 486D Listed and certified to CSA C22.2 No. 198.2, and it also meets ANSI C119.1, IEEE 383 vertical flame test, MIL-DTL-23053/15, ANSI C37.20.2, ICEA S-19-8, Western Underground Guides Nos. 2.4 and 2.5, and NEMA insulation thickness requirements. That covers most spec language an institutional or utility inspector will be reading off the drawing.
4) What voltage and temperature is Ideal 46-347 heat shrink rated for?
600V, with a 90 degree C continuous operating temperature. The material is irradiated cross-linked polyolefin, so it holds that rating in industrial and utility splice work rather than softening like a general purpose thin-wall sleeve.
5) What is the shrink ratio, and will it still seal over a bulky connector?
3:1. That means the tubing recovers to one third of its supplied diameter, so it can slide over a compression connector or a butt splice that is noticeably fatter than the cable and still pull down tight onto the bare jacket on either side. A 2:1 thin-wall sleeve usually will not bridge that step.
6) Heavy-wall or standard heat shrink for an underground splice?
Use heavy-wall here. The heavy-wall design gives mechanical protection against backfill and rock, adds flame retardancy, and carries the adhesive liner that makes the joint watertight. Standard thin-wall tubing insulates but will not survive burial abrasion or seal out groundwater.
7) Do I slide the tubing on before or after I crimp the splice?
Before. Slide the sleeve well clear onto one conductor, make and torque the connection with an approved connector, then slide it back so it is centered on the splice with equal coverage each side. Heat from the center outward with a heat gun so air and adhesive push out the ends instead of trapping a void.
