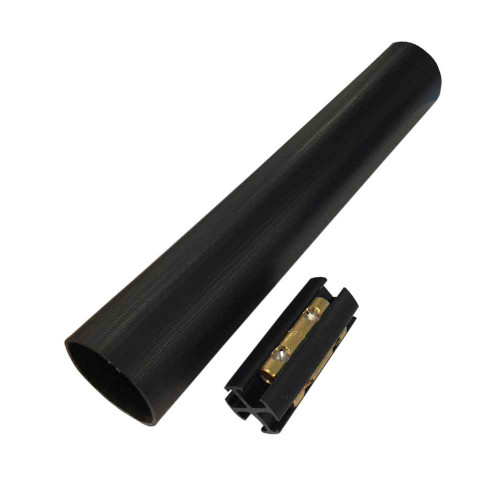

Ideal Industries Thermo-Shrink UF Stretcher Splice Kit
Professional Underground Cable Repair Solution
The Ideal Industries Thermo-Shrink UF Stretcher Splice Kit provides reliable repair for damaged underground feeder cables with 600V maximum rating and 105�C temperature capability. This direct burial rated system handles 14/3 through 8/3 UF cable ranges and meets NEC Code 110-14(b) requirements with UL486D compliance for professional electrical installations.
Professional Features & Benefits
- 600V Maximum Rating: Handles high-voltage underground applications with reliable insulation and protection for critical power distribution systems.
- Direct Burial Rated: Engineered for permanent underground installation without additional conduit protection, reducing installation complexity and cost.
- 7-10 Inch Repair Capability: Restores substantial cable damage from trenching operations, eliminating the need for complete cable replacement in most scenarios.
- 105�C Temperature Rating: Withstands high operating temperatures for reliable performance in demanding underground environments and high-load applications.
- UV Resistant Construction: Protects against ultraviolet degradation during installation and any above-ground exposure, ensuring long-term durability.
- NEC & UL486D Compliance: Meets 2002 NEC Code 110-14(b) requirements and UL486D standards for code-compliant professional installations.
- Wide Cable Range Compatibility: Accommodates 14/3 with and without ground through 8/3 without ground UF cables for versatile repair applications.
Technical Specifications
- Deparetment: Electrical
- Product Group: Wiring Devices
- Product Subgroup: Wiring Accessories
Professional Applications
- Underground Feeder Cable Repair
- Trenching Damage Restoration
- Residential Underground Service
- Commercial Underground Distribution
- Direct Burial Cable Systems
- Emergency Cable Repair
- Utility Infrastructure Maintenance
Why Choose Ideal Industries Quality?
Ideal Industries delivers professional-grade cable repair solutions with NEC compliance and UL486D certification. The UV resistant construction and direct burial rating ensure reliable long-term performance in demanding underground applications, backed by proven engineering standards for electrical professionals.
Manufacturer Resources
Product Specs
- Product Group:
- Wire Connectors & Terminals
- Department:
- Electrical
- Product Subgroup:
- Splice Kits
- Product Type:
- Splice
Ideal Industries 46-410 – Frequently Asked Questions
1) Will the IDEAL 46-410 UF splice kit work on 12/2 with ground underground feeder cable?
The Thermo-Shrink UF Stretcher Splice covers 14/3 with and without ground through 8/3 without ground UF cable, so 12/2 with ground falls inside that range. Match the conductor count and gauge of your buried run before you cut into it, because the kit is sized to that spread and nothing wider.
2) How much damaged UF cable can the IDEAL 46-410 splice actually repair?
It restores a damaged section of 7 to 10 inches. That is the practical test on a trencher or backhoe strike: if the crushed or severed length is inside 10 inches, you splice in place instead of pulling and replacing the whole run. Longer damage than that and you are back to a replacement pull or two splice points.
3) Can this UF splice kit be buried directly in the trench without a conduit or a box?
Yes. The Thermo-Shrink UF Stretcher Splice is direct burial rated, so it goes back in the trench as-is with no junction box or sleeve over it. That is the point of the kit for a property manager or landscape crew repairing a hit line to a shed, light pole, or pump.
4) Will an inspector accept a heat shrink UF splice buried underground?
The kit is built to 2002 NEC Code 110-14(b) and UL486D, which is the standard covering sealed wire connectors for damp and wet locations. That is the pairing an AHJ looks for on a buried splice with no enclosure.
5) Is the IDEAL 46-410 UF splice rated for a 277 or 480 volt circuit?
No. The kit is rated to 600V maximum, which covers 120/240V residential underground feeders and 277/480V commercial branch circuits within that ceiling. Anything above 600V needs a medium-voltage splice system, not this one.
6) What is the IDEAL part number for the Thermo-Shrink UF stretcher splice?
IDEAL Industries 46-410. One catalog number covers the full 14/3 through 8/3 UF range, so there is no size selection to make on the order, distributors and MRO buyers can stock the single number for underground repair calls.
7) Can part of this splice stay above grade, like where the cable comes up a pole or foundation?
The construction is UV resistant, so an exposed portion at a riser or stub-up will not break down from sunlight the way a non-rated shrink tube would. Still a direct burial product first, but sun exposure is not a disqualifier.
