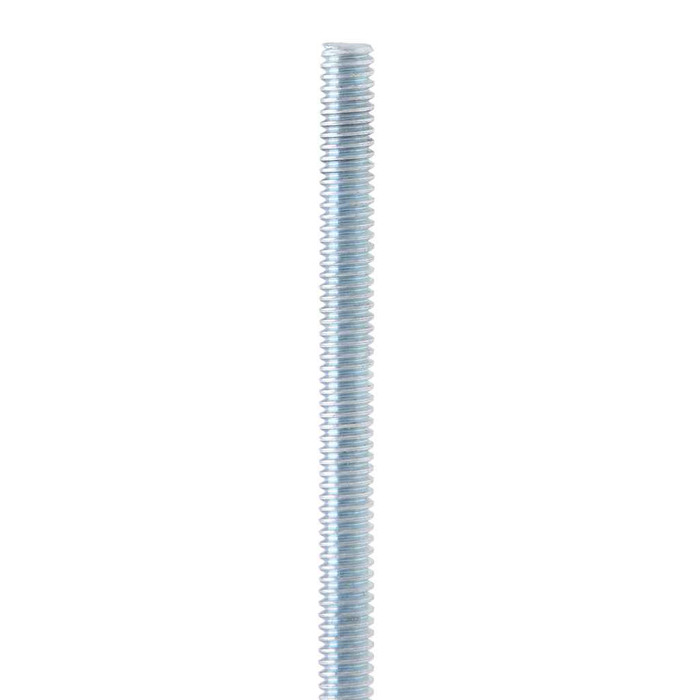

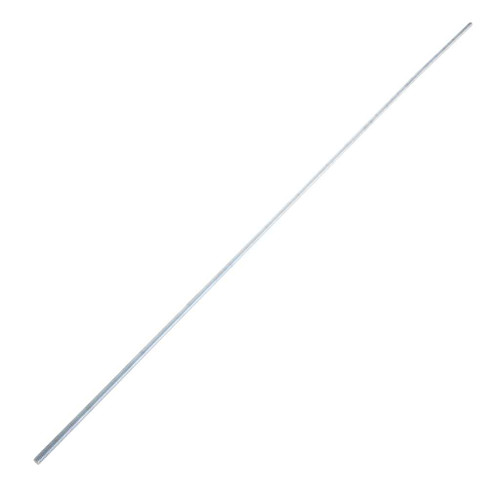

Thread Rod 3/4-10 X 12' St-zn (Bundle 5)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Bundle
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Group:
- Hangers, Supports & Fasteners
- Product Subgroup:
- Electrical Fasteners
- Product Type:
- Threaded Rod
Metallics TRS1112 – Frequently Asked Questions
1) What thread size and length is the Metallics TRS1112 threaded rod?
The Metallics TRS1112 is 3/4-10 threaded rod in 12 foot lengths. The 3/4-10 designation means a 3/4 inch diameter with 10 threads per inch, which is the standard UNC coarse pitch at that diameter, so it mates with standard 3/4-10 hex nuts, couplings, and strut channel fittings.
2) Is the TRS1112 rod zinc plated or galvanized, and can I use it outdoors?
It is steel with a zinc plating (the "St-zn" in the part description). Zinc plating is a light indoor corrosion coating, so it is suited to dry interior work such as pipe and conduit hangers, trapeze supports, and equipment drops. For exterior, wet, or corrosive locations, step up to hot dip galvanized or stainless rod instead.
3) Can I cut the 12 foot Metallics threaded rod down to length on site?
Yes, continuously threaded rod is meant to be cut to length in the field with a bandsaw, chop saw, or portable band saw. Chase the cut end with a 3/4-10 nut or a die to clear the burr so nuts run on freely. Buying 12 foot sticks and cutting is how most electrical and mechanical crews handle mixed drop lengths.
4) What else do I need to order with 3/4-10 threaded rod to finish the hangers?
The rod is just the rod, no fasteners are included. Plan on 3/4-10 hex nuts and flat washers at each connection, and whichever anchor matches your deck or slab (concrete wedge anchor with a 3/4-10 rod coupling, a beam clamp, or a rod coupling for splicing). If you are supporting off strut, you also need 3/4 inch channel nuts or rod couplings sized to the strut.
5) Is Metallics TRS1112 the same rod used on plumbing and HVAC hangers, or is it electrical only?
It is plain 3/4-10 zinc plated steel all thread. Metallics catalogs it on the electrical side, but the rod itself is the same item plumbers and sheet metal crews hang pipe and duct with. Nothing about the thread or coating limits it to electrical use.
6) What part number should I order for Metallics 3/4-10 x 12 foot all thread rod?
Order Metallics TRS1112. That is the manufacturer part number for the 3/4-10 by 12 foot zinc plated steel threaded rod, sold five to a bundle.
