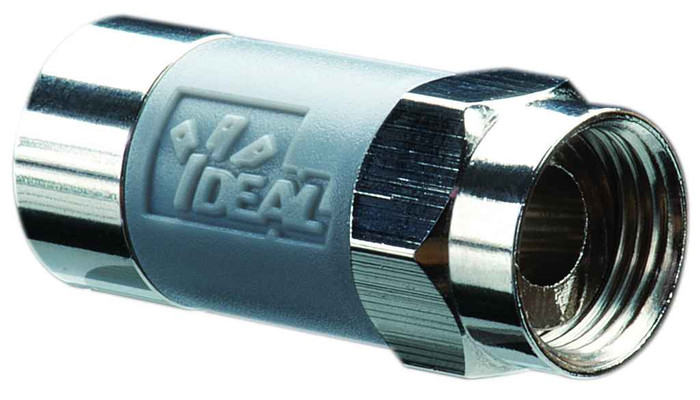

IDEAL Industries 85-068 TLC™ RG-6 F Tool-less Compression Connector -10 pk

IDEAL Industries 85-068 TLC™ RG-6 F Tool-less Compression Connector -10 pk

(No reviews yet) Write a Review

Model: 85-068
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$60.80
$10.80
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
TLC™ RG-6 F Tool-less Compression Connector -10 pk

  • Features

    • 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
    • Industry standard 1/4” x 1/4” cable preparation
    • 7/16” nut diameter with 3/8-32 thread
    • Accepts RG-6 coax cables
    • 3) Pull the connector forward (opposite direction of pushing it on) to ensure it is secured into place. This will expose all of the threads of the connector nut for easier device attachment.
    • 4) Attach connector to device.
    • 360° cable retention
    • 1) Prepare RG-6 coax with a 1/4” x 1/4” strip, and fold back the braiding.
    • Tool-Less Compression connector
    • Designed for 75Ω coaxial cables
    • >40 pounds cable retention on all models
    • Designed for use in cable and satellite TV installations
    • Plastic and nickel plated brass bodies
    • TLC design means no compression tool is required to terminate connector


85-068 - spec sheet

Manufacturer Resources

Product Specs

Product Group:
Outlets
Deparetment:
Electrical
Product Subgroup:
Wiring Accessories
Center Conductor Range:
All
Connector Color:
Gray
Connector Model:
6FTLC
Dielectric Diameter Range:
.175” - .183”
Frequency Range:
0 MHz to 3 GHz
Outer Jacket Diameter Range:
.254” - .278”
Recommended Cable Prep Stripping Tools:
45-605 PrepPRO™
Recommended Compression Tools:
Not required
Return Loss:
>30dB up to 3 GHz
parent sku:
IDL-85-068
