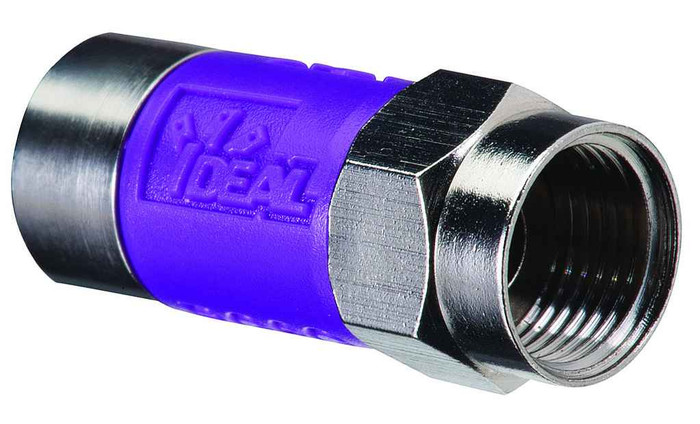

TLC™ RG-6 Quad F Tool-less Compression Connector -50 pk
85-178 - spec sheet
Features
- Tool-Less Compression connector
- >40 pounds cable retention on all models
- 3) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
- 2) Remove outer foil layer, then fold back inner braiding layer.
- 7/16” nut diameter with 3/8-32 thread
- 5) Attach connector to device.
- Industry standard 1/4” x 1/4” cable preparation
- Designed for 75Ω coaxial cables
- Accepts RG-6 Quad coax cables
- 360° cable retention
- Plastic and nickel plated brass bodies
- 1) Prepare RG-6 Quad coax with a 1/4” x 1/4” strip, and fold back the outer braiding.
- 4) Pull the connector forward (opposite direction of pushing it on) to ensure it is secured into place. This will expose all of the threads of the connector nut for easier device attachment.
- TLC design means no compression tool is required to terminate connector
- Designed for use in cable and satellite TV installations
85-178 - spec sheet
Manufacturer Resources
Product Specs
- Product Group:
- Wiring Devices
- Deparetment:
- Electrical
- Product Subgroup:
- Wiring Accessories
- Center Conductor Range:
- All
- Connector Color:
- Purple
- Connector Model:
- 6QFTLC
- Dielectric Diameter Range:
- .175” - .183”
- Frequency Range:
- 0 MHz to 3 GHz
- Outer Jacket Diameter Range:
- .275” - .305”
- Recommended Cable Prep Stripping Tools:
- 45-605 PrepPRO™; 45-321
- Recommended Compression Tools:
- Not required
- Return Loss:
- >30dB up to 3 GHz
- parent sku:
- IDL-85-178
