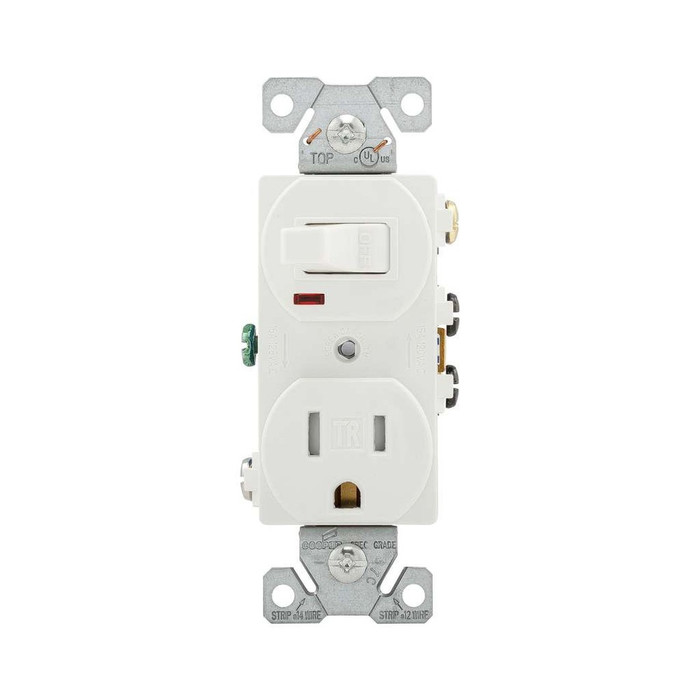

Cooper Wiring Devices Toggle Switch and Tamper-Resistant Duplex Receptacle Combo

Cooper Wiring Devices Toggle Switch and Tamper-Resistant Duplex Receptacle Combo

(No reviews yet) Write a Review

Model: TR274W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cooper Wiring Devices Toggle Switch and Tamper-Resistant Duplex Receptacle Combo

The Cooper Wiring Devices Toggle Switch and Duplex Receptacle Combo combines a single-pole toggle switch with a tamper-resistant duplex receptacle in one flush-mount device, ideal for commercial installations that need switching and power in a single gang. Built from durable thermoplastic/PVC with brass contacts, the switch is rated 120V while the receptacle carries a 125V, 15A, NEMA 5-15R rating for standard grounded plugs. A neon pilot light provides visual indication, and screw terminals support both back and side wiring for flexible installation.

Key Features

  • Combination Configuration: Toggle switch and duplex receptacle in a single device for space-saving installations.
  • Durable Construction: Thermoplastic/PVC housing with brass contacts for reliable, long-lasting performance.
  • Screw Terminal Wiring: Back and side wiring supports #14 - #12 AWG wire for flexible installation.
  • Electrical Rating: 120V single-pole toggle switch and 125V, 15A duplex receptacle, NEMA 5-15R configuration.
  • Tamper-Resistant & Auto-Ground: Built-in tamper-resistant shutters and auto-grounding clip for added safety and code compliance.
  • Neon Pilot Illumination: Integrated neon pilot light for at-a-glance switch status.
  • Flush Mounting: Standard flush mount fits common wallplates and device boxes.
  • Operating Range: Rated for use from -20 to 60°C, suited to commercial application environments.

Technical Specifications

  • Amperage Rating: 15A
  • list_batch: COOPER-20260730

Typical Applications

  • Commercial and Light Commercial Wiring Installations
  • Combination Switch and Outlet Locations
  • Break Rooms, Kitchens, and Utility Areas
  • Renovation and New Construction Projects
  • Tamper-Resistant Code-Compliant Installations

Why Cooper Wiring Devices?

Cooper Wiring Devices builds this switch and receptacle combo with a thermoplastic/PVC housing, brass contacts, and tamper-resistant, auto-grounding features to deliver dependable, code-compliant performance. The combination of a 120V toggle switch and a 125V, 15A duplex receptacle in one device makes it a practical choice for professional electricians outfitting commercial spaces.

Manufacturer Resources

Product Specs

Configuration:
Toggle switch and receptacle
Connector Type:
Screw
Voltage Rating:
120V switch, 125V receptacle
Actuator:
Toggle
Wiring Method:
Back and side
Number Of Poles:
Single-pole
Allowable Wire Size:
#14 - #12 AWG
Operating Temperature:
-20-60˚C
Amperage Rating:
15A
Installation Category:
Flush
Nema Configuration:
5-15R
Style Type:
Duplex
Closure Type:
Maintained
Special Features:
Tamper resistant, auto-ground
Contact Type:
Brass
Illumination:
Neon pilot
Product Type:
Standard
Connection Type:
Screw
Product Material:
Thermoplastic, PVC
Product Color:
White
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Combination Devices
Product Height:
4.19 in
Product Weight:
0.242 lb
Product Width:
1.08 in
Product Length:
1.3 in
Application:
Commercial

Cooper Wiring Devices TR274W – Frequently Asked Questions

1) Will the Cooper TR274W switch/receptacle combo fit in a single-gang box?
Yes. The TR274W puts a single-pole toggle switch and a duplex receptacle on one flush-mount strap, so one gang gives you both switching and power. It takes a standard flush wallplate opening cut for a combination device (toggle opening plus duplex opening), not a plain duplex plate.
2) What wire size does the Cooper TR274W combo device accept, and can I back-wire it?
Terminals take #14 to #12 AWG copper, which covers both 15A and 20A branch circuit conductors. Wiring is by screw terminal with back and side entry, so you can land the conductor under the side screw or feed it in the back and tighten the same screw. Plan the box fill for it - you're landing hot, switched hot, neutral and ground on one device.
3) Is this Cooper combo device tamper-resistant for a kitchen or break room where TR outlets are required?
The TR274W receptacle half has built-in tamper-resistant shutters, so it satisfies specs calling for TR receptacles in dwelling and similar occupancies. It also has an auto-grounding clip, which bonds the strap to a grounded metal box when you tighten the mounting screws - useful in retrofit work where the box ground is already crowded.
4) Will a standard three-prong grounded plug fit this Cooper combo outlet, and what amperage is it?
The receptacle is NEMA 5-15R at 15 amps, so it takes any standard grounded 125V three-prong cord cap - the common configuration on office equipment, appliances and power tools. The switch side is rated 120V single-pole.
5) Does the switch on the Cooper TR274W control the receptacle, or are they separate?
The toggle is a single-pole maintained switch with a neon pilot light. Pilot-light toggles are wired to show when the load they feed is energized, so the light tells you the state of the switched load - typically a remote fixture, exhaust fan or disconnect you can't see from the device. Confirm how you want the receptacle fed when you wire it; the two halves are landed on separate terminals.
6) Can this Cooper combo device go in an unheated garage, warehouse or mechanical room?
Its rated operating range is -20 to 60 C, so unconditioned interior spaces like garages, warehouse floors and equipment rooms are within range. It is a flush-mount device for a standard box, not a weatherproof unit, so an exterior or wet location needs an in-use cover assembly.
7) Is the Cooper TR274W built for commercial use or is it a residential-grade device?
It's specified for commercial application, with a thermoplastic/PVC body and brass contacts. Brass contacts are what carry repeated plug-in cycles without heating at the blade, which is the failure mode you see on light-duty devices in break rooms and copy areas.
8) What color is the Cooper TR274W, and will it match my other devices?
White. If you're standardizing a floor of offices or a multi-family building on white devices, this matches on the device face, but the wallplate has to be a combination toggle/duplex plate rather than the standard duplex plates on your other openings.
