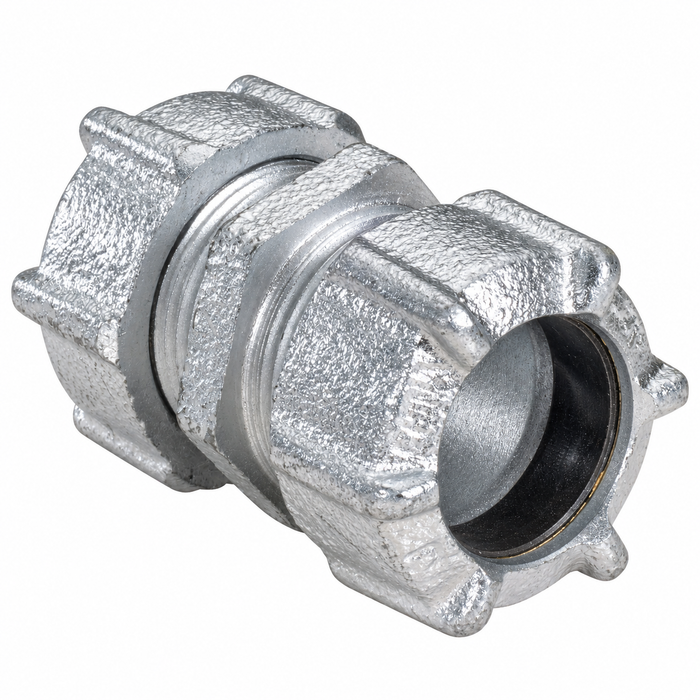

Topaz Lighting 251MRT Raintight Rigid Compression Coupling, Malleable Iron

The Topaz Lighting 251MRT Raintight Rigid Compression Coupling extends conduit runs by joining two lengths of unthreaded Rigid or IMC conduit of equal size, and is available in trade sizes from 1/2" through 2" to fit a wide range of raceway systems. Constructed from durable malleable iron, this compression-type coupling delivers a concrete-tight, wet-location-rated, raintight connection suited to demanding commercial and industrial installations. Each coupling is cULus Listed and compatible with UL 6 and UL 6A rigid steel or aluminum conduit, making it a reliable, code-compliant choice for extending conduit runs without threading.

Key Features

  • Trade Size Range: Available in 1/2" through 2" trade sizes to fit a wide variety of Rigid and IMC conduit runs.
  • Durable Construction: Malleable iron body provides exceptional strength and long-term corrosion resistance for indoor and outdoor applications.
  • Compression-Type Connection: Tool-free compression fitting securely joins two lengths of unthreaded Rigid or IMC conduit with equal-size openings on both sides, eliminating the need for threading.
  • Concrete Tight: Engineered to maintain a concrete-tight seal, making this coupling suitable for encased and embedded conduit installations.
  • Raintight & Wet Location Rated: Rated for wet locations and raintight environments, ensuring reliable performance in exposed outdoor and harsh-condition installations.
  • Conduit Compatibility: Suitable for use with UL 6 and UL 6A rigid steel or aluminum conduit, providing broad compatibility across standard Rigid and IMC conduit systems.

Certifications & Compliance

  • cULus Listed
  • Concrete Tight
  • Wet Location Rated
  • Raintight
  • Compatible with UL 6 and UL 6A Rigid Steel or Aluminum Conduit

Technical Specifications

  • Conduit Type: Rigid/IMC
  • Pack Size: 100

Typical Applications

  • Extending Rigid or IMC Conduit Runs in Commercial and Industrial Electrical Installations
  • Concrete-Encased and Embedded Conduit Raceway Systems
  • Outdoor and Wet-Location Conduit Installations Requiring Raintight Fittings
  • New Construction and Renovation Electrical Projects
  • Industrial Facilities Requiring Durable, Code-Compliant Conduit Connections

Why Topaz Lighting?

Topaz Lighting manufactures the 251MRT Raintight Rigid Compression Coupling from malleable iron to deliver the strength and reliability professional electricians demand across trade sizes from 1/2" through 2". With cULus Listing, concrete-tight construction, and wet-location ratings, this coupling meets the rigorous standards required for code-compliant Rigid and IMC conduit systems. Trust Topaz Lighting for consistent quality and performance across your commercial and industrial electrical installations.

Product Specs

Product Type:
Coupling
Conduit Type:
Rigid/IMC
Connection Type:
Compression
Listing:
cULus
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Fittings
Product Material:
Malleable Iron
Product Color:
Malleable Iron
Pack size (unit):
100
Product Size:
1/2" - 2"

Topaz Lighting 251MRT – Frequently Asked Questions

1) Can I use the Topaz 251MRT coupling to join two pieces of unthreaded rigid conduit?
That's exactly what it's for. The Topaz 251MRT is a compression coupling that joins two lengths of unthreaded Rigid or IMC conduit of equal size, so you don't have to cut threads on the field ends. Both openings are the same size, so it couples like to like, 1/2 inch to 1/2 inch, 2 inch to 2 inch. It will not join a run to a threaded hub or step between two different trade sizes.
2) Is this Topaz compression coupling approved for outdoor and wet locations?
Yes. The 251MRT malleable iron compression coupling is raintight and wet location rated, and it is cULus Listed. That covers exposed exterior runs, rooftop raceway and washdown areas where a standard dry-location fitting would not pass inspection.
3) Can a compression coupling be used on conduit that gets poured into concrete?
The Topaz 251MRT is concrete tight, so it is rated for encased and embedded conduit installations. That means the fitting keeps wet concrete out of the raceway during the pour. Not every compression coupling carries that rating, so if the run is going into a slab or a wall pour, check the fitting says concrete tight before it goes in the forms.
4) Do I need to thread the conduit or use a threading machine with this coupling?
No threading. It is a compression-type fitting, so a square cut and deburred conduit end goes straight into the coupling and the compression nut makes the joint. That is the whole reason to reach for it on a repair or an extension where you cannot rotate the existing pipe to thread a standard coupling onto it.
5) Can I use the 251MRT to transition from rigid conduit to EMT?
No. It joins Rigid or IMC to Rigid or IMC of the same trade size, both ends alike. EMT has a different outside diameter and needs an EMT compression fitting or a combination coupling made for the Rigid to EMT transition. Using this one on EMT will not give you the raintight joint it is rated for.
6) What trade sizes does the Topaz 251MRT raintight rigid compression coupling come in?
Five trade sizes from 1/2 inch through 2 inch: 1/2 inch (251MRT), 1 inch (253MRT), 1-1/4 inch (254MRT), 1-1/2 inch (255MRT) and 2 inch (256MRT). Order by the trade size of the conduit you are joining, and both ends match that size.
7) Will the Topaz 251MRT work on aluminum rigid conduit, or steel only?
Both. The coupling is listed for use with UL 6 and UL 6A rigid conduit, which covers rigid steel and rigid aluminum, plus IMC. Useful if you are running aluminum rigid on a corrosive or weight-sensitive job and still want a malleable iron fitting body.
8) Should I use a compression coupling or a threaded coupling to extend an existing rigid conduit run?
A threaded coupling needs both ends threaded and one pipe free to spin, which you almost never have mid-run on an existing raceway. The 251MRT compression coupling solves that: it clamps onto unthreaded Rigid or IMC ends with no rotation and no threading, and still gives you a raintight, concrete tight, wet location rated joint. For a new run you are cutting and threading anyway, a standard threaded coupling is the cheaper path. For splicing into pipe already in place, compression is the fitting.
9) How many Topaz 251MRT couplings come in a pack?
Standard pack is 100 pieces. Worth knowing before you order a couple for a service call, and worth knowing if you are stocking a truck or an MRO crib for a facility standardizing on malleable iron compression fittings.
10) Is a malleable iron coupling better than a die cast fitting for an industrial raceway?
Malleable iron is the body material on the 251MRT, and it is the choice for mechanical strength and long-term corrosion resistance on commercial and industrial runs, including exposed exterior and embedded work. Die cast zinc fittings are lighter duty. If the raceway is subject to impact, vibration or a poured slab, the iron body is what holds up.
