TownSteel CSRC-76 Grade 2 Cyli...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$97.77
TownSteel TownSteel CSRC-76 Privacy Function - Grade 2, Cylindrical Clutched Conical Rose Lockset TWS-CSRC-76

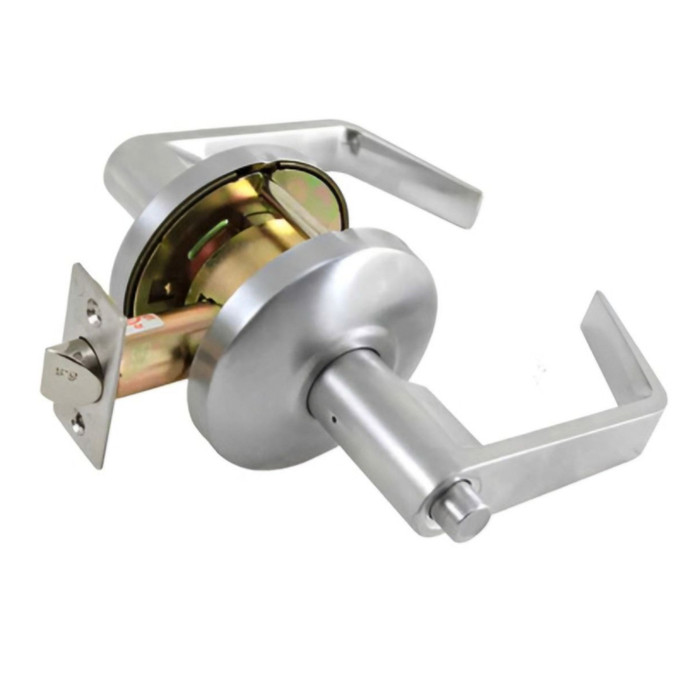

TownSteel CSRC-76 Grade 2 Cylindrical Privacy Lockset with Clutched Conical Rose Lever Trim

(No reviews yet) Write a Review

Model: CSRC-76-S-626
$97.77
Selected Finish is
Selected Lever Style is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$97.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TownSteel CSRC-76 Grade 2 Cylindrical Privacy Lockset with Clutched Conical Rose Lever Trim

The TownSteel CSRC-76 is a Grade 2 cylindrical privacy lockset engineered for Multi-Family, Senior Living, Dorm, and Light Commercial applications where reliable, non-keyed privacy locking is required. Combining the physical security of an ANSI Grade 2 mechanical locking mechanism with a conical rose featuring clutched lever trim, the CSRC-76 delivers dependable performance for bedroom, bathroom, and similar privacy openings. Concealed mounting screws, a removable thru-bolt, and an adjustable mounting plate allow for fast, clean installation without sacrificing security.

Key Features

  • ANSI Grade 2 Security: Combines the physical security of an ANSI Grade 2 mechanical locking mechanism for dependable, long-term performance.
  • Clutched Conical Rose Lever Trim: Conical rose design with clutched lever trim resists forced rotation and adds a refined, tamper-resistant profile to the lockset.
  • Privacy/Bed/Bath Function: Non-keyed privacy operation is ideal for bedrooms, bathrooms, and similar applications requiring simple interior locking without key access.
  • Heavy Duty Rated: Built to a heavy duty classification suited for the demands of multi-family, senior living, dorm, and light commercial environments.
  • Fast and Easy Installation: Removable thru-bolt and adjustable mounting plate streamline the installation process on a variety of door preparations.
  • Concealed Mounting Screws: Hidden fasteners create a clean, tamper-resistant appearance while protecting the mounting hardware from access.
  • Knob Handle Style: Cylindrical knob configuration within the CE Series product line for consistent design across openings.

Certifications & Compliance

  • ANSI/BHMA Grade 2 Mechanical Locking Mechanism

Technical Specifications

  • Series: CE Series
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Type: Knobs and Levers
  • Keyed Function: Non-Keyed
  • Duty Level: Heavy Duty
  • Handle Type: Knob
  • Product Function: Privacy/Bed/Bath
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Multi-Family Residential Properties
  • Senior Living Communities
  • Dormitories and Student Housing
  • Light Commercial Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Hospitality and Multi-Tenant Properties

Why TownSteel CSRC?

TownSteel CSRC Series locksets deliver professional-grade privacy locking backed by an ANSI Grade 2 mechanical locking mechanism and heavy duty construction. The clutched conical rose lever trim, concealed mounting screws, and adjustable mounting plate reflect the thoughtful engineering TownSteel applies to its CE Series bored locksets, making the CSRC-76 a dependable choice for multi-family, senior living, dorm, and light commercial privacy applications.

Product Specs

Series:
CE Series
Grade:
Grade 2
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Knobs and Levers
Subcategory:
Cylindrical Locks
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Keyed Function:
Non-Keyed
Duty Level:
Heavy Duty
Handle Type:
Knob
Product Attribute:
Cylindrical Locks
Product Function:
Privacy/Bed/Bath
Product Category:
Mechanical Locks
Department:
Door Hardware

TownSteel CSRC-76-S-626 – Frequently Asked Questions

1) Is the TownSteel CSRC-76 a keyed lock, or does it just lock from inside the room?
The CSRC-76 is a privacy function lock, non-keyed. It locks from the inside only, which is what you want on a bedroom or bathroom door. There is no cylinder to key up on the outside. If the opening needs key control, you need an entrance, classroom or storeroom function instead.
2) Is a Grade 2 cylindrical lockset good enough for apartment bedroom and bathroom doors?
Yes. The CSRC Series is built for multi-family, senior living, dorm and light commercial openings, and the mechanism is ANSI Grade 2, rated Heavy Duty and classed as commercial rather than residential. For bed and bath doors inside a unit, that is the normal specification level. Where an opening takes real abuse or carries a Grade 1 spec on the drawings, step up instead.
3) My spec sheet calls for Grade 1 cylindrical locks. Can I still use the TownSteel CSRC-76?
No, not if the spec is firm. The CSRC-76 mechanism is ANSI Grade 2. For a Grade 1 cylindrical, the Falcon K501 is listed as Grade 1, heavy duty, with a fire rating and a 1-3/8 to 2-1/4 inch door thickness range, though it is an entrance function rather than privacy.
4) What cylindrical lock should I use on a unit entry door if the TownSteel CSRC-76 is only privacy function?
The CSRC-76 is a non-keyed privacy/bed/bath lock, so it has no key cylinder for an entry door. For a keyed unit entry in the same cylindrical format, the Cal-Royal BA00 is an entrance function lock in the Barrington BA series with turn/push button locking, fitting doors 1-3/8 inch to 1-3/4 inch thick. If the entry is a heavier-traffic commercial opening, the Falcon K501 is a Grade 1 entrance cylindrical lock with a push-turnbutton function that fits doors 1-3/8 inch to 2-1/4 inch.
5) I need a lock for a dorm storage room, not a bathroom - what replaces the TownSteel CSRC-76 there?
The CSRC-76 is a privacy function lock, which unlocks from inside and has no key, so it is not suited to a secured storage room. The Cal-Royal BA05 is a storeroom function cylindrical lock in the Barrington BA series with a Grade 2 ANSI F86 deadlocking latch, sized for doors 1-3/8 inch to 1-3/4 inch thick. That gives you the always-locked outside lever with key access that a storage room needs, at the same Grade 2 level as the CSRC-76.
6) What does clutched lever trim actually do on the CSRC-76?
The lever spins free when the lock is engaged instead of driving the internal mechanism. Force applied to the outside lever gets absorbed by the clutch rather than transferred into the chassis, so vandalism and hanging on the lever do not break the lock. That matters most in dorms, student housing and senior living, where the CSRC Series is aimed.
7) Which lever designs can I get on the TownSteel CSRC-76 privacy lockset?
Three lever styles: Gala, Quest and Sentinel, all on the clutched conical rose. Each is offered in 626 satin chrome. Pick one style and keep it across the building so the units match.
8) Do I have to pick a keying option when ordering the CSRC-76?
A keying selection is required on the order form, and for this privacy function the correct choice is "None - for (Non Keyed and SFIC prep Function)". Keyed Different, Keyed Alike and special key code options exist on the ordering menu but apply to keyed functions, not to a privacy lock.
9) Can I replace an existing cylindrical knob lock on a bathroom door with the CSRC-76?
It is a bored cylindrical lockset, so it goes into the same standard 2-1/8 inch cross bore prep an existing cylindrical knob or lever lock uses, with an adjustable mounting plate to take up variation. Note the trim changes: the CSRC-76 is a lever on a conical rose, not a knob, so the appearance on the door will not match remaining knob sets on adjacent openings.
10) Is the Falcon K501 a direct substitute for the TownSteel CSRC-76?
No. The two differ on both function and grade. The CSRC-76 is a Grade 2 non-keyed privacy lock with clutched conical rose trim. The Falcon K501 is a Grade 1 keyed entrance lock with push-turnbutton function, is fire rated, and covers doors 1-3/8 inch to 2-1/4 inch thick. Use the K501 where the opening calls for keyed entry and a Grade 1 rating; the CSRC-76 covers bed and bath openings where no key is wanted.
11) For a classroom door, what cylindrical lock do I order instead of the CSRC-76?
The CSRC-76 is a privacy function lock and does not offer keyed outside control. For a classroom opening, the Cal-Royal BA03 is a classroom function cylindrical lock with Grade 2 ANSI F84 function, for doors 1-3/8 inch to 1-3/4 inch thick. If you are connecting two adjoining rooms rather than securing a classroom, the Cal-Royal BA04 is the communicating function version, ANSI F80 Grade 2, with the same door thickness range.
12) We want remote or access-control operation on the same door prep - is there a cylindrical option?
The TownSteel CSRC-76 is a mechanical privacy lock with no electrified option. Where the opening needs to be controlled electronically in a cylindrical format, the BEST 9KW series is an electromechanical cylindrical lock with remote control operation and a heavy duty rating, the same duty level the CSRC-76 carries. The 9KW is the choice when the door ties into an access control system; the CSRC-76 stays mechanical.
13) Will the CSRC-76 screws show on the face of the door?
No. The conical rose uses concealed mounting screws, so nothing is visible on the finished trim. There is also a removable thru-bolt and an adjustable mounting plate, which is what lets one lock cover slightly varying prep on existing doors and keeps installation quick when you are doing a whole floor of units.
14) Is the 626 finish on the CSRC-76 going to match the other hardware in my building?
626 is satin chrome, the standard commercial finish and the most common one on closers, exit devices and cylindrical locks in institutional and multi-family buildings. All three CSRC-76 lever styles come in 626, so it will sit alongside existing 626 hardware without a colour break.
