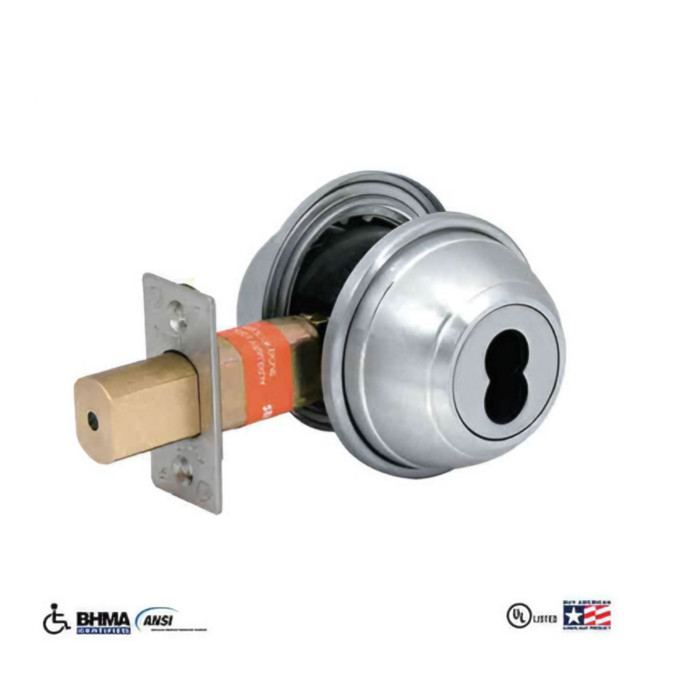

TownSteel Commercial Deadbolt - Double - IC Core (SFIC) - 2-3/4 " Backset - Satin Chrome - Grade 1

TownSteel DBDI-62 Grade 1 Double Cylinder Deadbolt for SFIC Core

(No reviews yet) Write a Review

Model: DBDI-62 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$186.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TownSteel DBDI-62 Grade 1 Double Cylinder Deadbolt for SFIC Core

The TownSteel DBDI-62 is a Grade 1 Heavy Duty Commercial double cylinder deadbolt designed for Small Format Interchangeable Core (SFIC) applications, accepting 6 or 7-pin Best "A" keyway cores (core sold separately). Featuring a 2-3/4" backset and a tamper-resistant solid brass one-piece housing, this deadbolt delivers reliable forced-entry deterrence for demanding commercial environments. Finished in satin chrome (626), the DBDI-62 combines heavy-duty Grade 1 construction with the flexibility of interchangeable core keying systems commonly specified in institutional, educational, and commercial facilities where rekeying flexibility and durability are top priorities.

Key Features

  • 2-3/4" Backset: Standard commercial backset dimension for straightforward installation on standard door preparations.
  • Grade 1 Heavy Duty Rating: Built to the highest commercial performance grade for demanding, high-traffic door applications.
  • Tamper-Resistant Solid Brass Housing: One-piece solid brass construction provides a positive deterrent against forced entry and drilling attempts.
  • SFIC Core Compatibility: Fits Small Format Interchangeable Core (SFIC), accepting 6 or 7-pin Best "A" keyway cores for flexible rekeying without hardware replacement (core sold separately).
  • Double Cylinder Operation: Keyed cylinders on both the interior and exterior sides provide controlled access from either side of the door.
  • Satin Chrome Finish: Durable satin chrome (626) finish resists wear and corrosion while complementing commercial door hardware aesthetics.
  • Mechanical, Non-Electronic Design: Fully mechanical double cylinder operation requires no wiring or power source, simplifying installation and long-term maintenance.

Certifications & Compliance

  • ANSI/BHMA Grade 1 Rated

Technical Specifications

  • Product Group: Mechanical Locks
  • Product Subgroup: Deadbolt Locks and Trim
  • Product Type: Deadbolt Locks
  • Subcategory: Deadbolt Locks
  • Keyed Function: Double Cylinder
  • Keyed: Yes
  • Lock Function: Double Cylinder
  • Product Attribute: Deadbolt Locks
  • Electronic: No
  • Product Function: Double Cylinder
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities

Why TownSteel DBDI-62?

TownSteel engineers the DBDI-62 with a tamper-resistant solid brass one-piece housing and Grade 1 heavy duty performance to stand up to the rigors of commercial and institutional door openings. Its SFIC core compatibility with 6 or 7-pin Best "A" keyway systems gives facility managers the flexibility to rekey without replacing hardware, making it a dependable choice wherever interchangeable core security, double cylinder control, and commercial-grade durability are required.

Product Specs

Product Group:
Mechanical Locks
Product Subgroup:
Deadbolt Locks and Trim
Product Type:
Deadbolt Locks
Subcategory:
Deadbolt Locks
Keyed Function:
Double Cylinder
Commercial/Residential:
Commercial
Lock Type:
Deadbolt
Keyed:
Yes
Lock Function:
Double Cylinder
Grade:
Grade 1
Duty Level:
Heavy Duty
Product Attribute:
Deadbolt Locks
Electronic:
No
Product Function:
Double Cylinder
Product Category:
Mechanical Locks
Department:
Door Hardware

TownSteel DBDI-62 626 – Frequently Asked Questions

1) Does the TownSteel DBDI-62 deadbolt come with a cylinder core?
No core is included. The DBDI-62 is built to accept a small format interchangeable core (SFIC), 6 or 7-pin, Best "A" keyway, and the core is sold separately. Order the cores alongside it, or pull them from your existing Best A keyway system so the deadbolt keys into the master key setup you already run.
2) What does double cylinder mean on this TownSteel deadbolt, and where can I use it?
Double cylinder means a key cylinder on both sides, no thumbturn. Nobody gets out through that door without a key, which is why it gets specified next to glass or sidelites where a thumbturn could be reached through broken glazing. That same feature makes it restricted on required egress doors in many jurisdictions, so check your local code and occupancy before you put it on an exit. If you need key outside and turn inside, you want a single cylinder deadbolt instead.
3) Is the TownSteel DBDI-62 deadbolt heavy duty enough for a commercial entrance?
It's a Grade 1 heavy duty commercial deadbolt, which is the top ANSI/BHMA tier and the one written into most commercial and institutional specs. The housing is tamper resistant solid brass, one piece, so there's no seam to pry at the exterior face. Grade 1 is what you want on a main entry, a stairwell, or any opening taking daily traffic and abuse.
4) Will a 2-3/4 inch backset deadbolt line up with my existing bore?
The DBDI-62 is a 2-3/4 inch backset deadbolt, measured from the door edge to the center of the cross bore. That's the standard commercial backset; 2-3/8 is the other common one and is typical of residential and lighter-duty prep. If your existing hole is drilled at 2-3/8, this one will not drop in without redrilling the door and edge bore. Measure before you order.
5) Can I standardize a building on the DBDI-62 and key it to my existing master key system?
Yes, if your system runs Best "A" keyway small format cores. The deadbolt takes a 6 or 7-pin SFIC in that keyway, so a facility already on Best A can pin cores to its existing master and grand master levels and drop them in without rekeying the lock body. For a property manager or MRO buyer, that's the point of SFIC: cores get swapped on a tenant turn in seconds, no door taken apart.
6) Do I need a separate strike or reinforcement for a commercial deadbolt like this?
Plan on the frame side of the job either way. A Grade 1 deadbolt only performs to grade if the strike is anchored into the frame or into solid backing rather than just the jamb casing. On a hollow metal frame, make sure the existing deadbolt strike prep matches the 2-3/4 inch backset location of the DBDI-62 before you start cutting.
7) What finish does the TownSteel DBDI-62 come in?
Satin chrome, BHMA finish code 626. That's the standard commercial finish and it matches 626 levers, exit device trim, and closers already hanging in most office, school, and healthcare buildings, so it blends into an existing hardware set without looking like a one-off replacement.
8) Is this TownSteel deadbolt electronic or does it need wiring?
Purely mechanical. The DBDI-62 is a keyed deadbolt with no electronics, no wiring, no power supply and nothing to tie back to an access control panel. It throws and retracts by key only, which also means it keeps working during a power outage.
