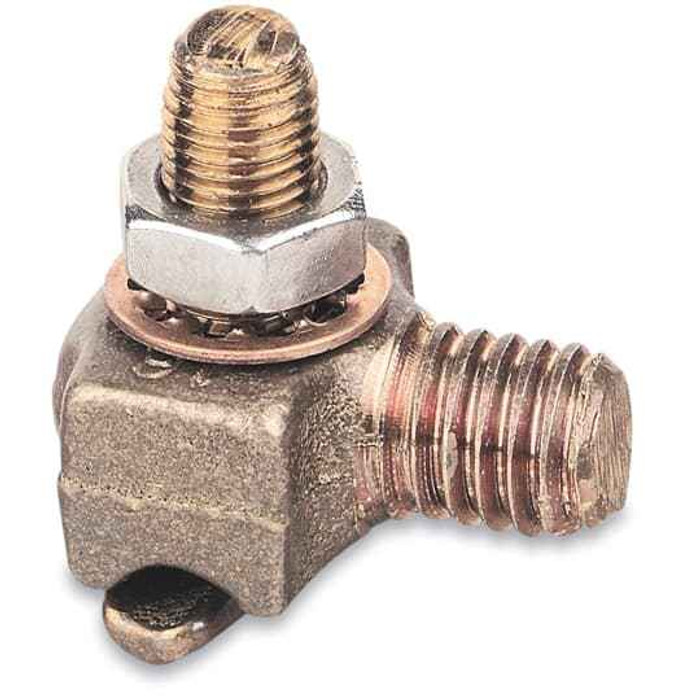

TRANS TANK GRND CONN 2/0 TP 1-21/32
Manufacturer Resources
Product Specs
- Connection Type:
- Mechanical
- Country Of Origin:
- India (IN)
- Insulation Material:
- None
- Material Of Conductor:
- Copper
- Product Group:
- Wire & Cable Management
- Product Net Depth Length:
- 1-21/32 in
- Product Type:
- Transformer Tank Ground Connector
- Selling Unit Of Measure:
- each
- Standards:
- RUS Listed
- Type Of Indicator:
- None
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Size:
- 1-51/64 X 1-9/64 X 1-21/32 in
Blackburn TTC2P – Frequently Asked Questions
1) What is the Blackburn TTC2P used for on a transformer?
The TTC2P is a transformer tank ground connector, a mechanical grounding device that bonds a grounding conductor to the transformer tank or pad-mount enclosure. It is a bolted mechanical connection, not a compression or exothermic joint, so it can be installed with hand tools and taken apart later if the ground lead has to be re-terminated.
2) What size conductor does the Blackburn TTC2P grounding connector take?
It is the 2/0 version of the transformer tank connector, so it is sized for grounding conductor up to 2/0. If your ground lead is larger than 2/0, you need the next size up in the series rather than forcing this body.
3) Is the Blackburn TTC2P approved for utility distribution work?
It is RUS Listed, which is the acceptance utilities and rural electric co-ops look for on distribution grounding hardware. That is the rating carried on this connector.
4) Is the Blackburn TTC2P copper or aluminum?
The conductor material on the TTC2P is copper. Keep that in mind on a tank with an aluminum grounding pad or aluminum ground lead, where a copper-to-aluminum joint invites galvanic corrosion outdoors; for that combination use a connector rated for dual metals.
5) How much room do I need to fit the TTC2P on a transformer pad?
Overall it measures 1-51/64 x 1-9/64 x 1-21/32 inches, with the depth/length dimension being 1-21/32 inches. That is the envelope to clear when the connector sits against the tank wall or ground pad with the lead landed in it.
6) What is the manufacturer part number for the Blackburn transformer tank ground connector for 2/0 conductor?
Blackburn TTC2P is the part number to specify. It is the 2/0 mechanical tank ground connector in the TTC series, country of origin India.
7) Does the TTC2P come insulated or with a cover?
No insulation and no cover. It is a bare mechanical connector with no indicator feature, intended for a grounding connection where an insulated body is not required.
8) Is the Blackburn TTC2P sold individually or in a box?
Sold each, so the quantity you order is the number of connectors you get. Crews standardizing a set of pad-mount transformers usually order one per tank plus spares.
