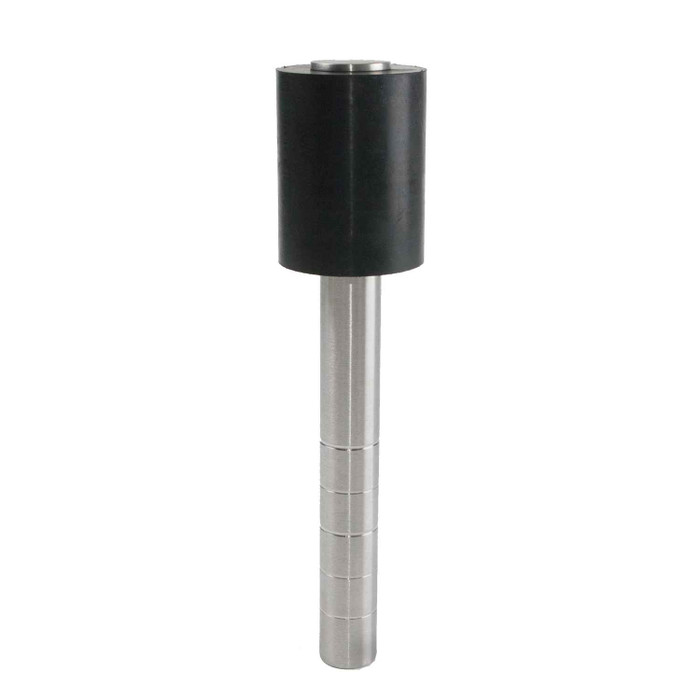

Trimco 1209HA Extra Heavy-Duty Floor Stop
The Trimco 1209HA is built for the most demanding, high-abuse environments — schools, prisons, government facilities, and heavy commercial buildings. Constructed of extra high tensile strength steel with industrial rubber bumpers, the 1209 Series is engineered to protect doors and surrounding surfaces under extreme conditions. The HA configuration features a 1" diameter stainless steel shaft embedded up to 7" into concrete, topped with a 3" × 2-1/4" rubber bumper that absorbs impact without damaging the door face. All fittings are vandal-proof: the 1209 cannot be disassembled without special tools, and no component can be removed and fashioned into a weapon.
Features & Benefits
- Extra high tensile strength steel construction
- Large 1-3/8" × 2" industrial rubber bumper standard
- HA option: 1" diameter stainless steel shaft embedded up to 7" into concrete
- 3" × 2-1/4" rubber bumper on HA configuration
- All fittings are vandal-proof — cannot be disassembled without special tools
- ADA Compliant
- Commercial grade
Ideal Applications
- Schools and universities
- Prisons and detention facilities
- Government and military facilities
- Commercial and industrial buildings
- Animal shelters and zoos
Downloads & Resources
Manufacturer Resources
Product Specs
- Series:
- 1209 Series
- ADA Compliant:
- Yes
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Stops, Holders, Silencers & Bumpers
- Product Type:
- Floor Door Stops
- Subcategory:
- Door Stops, Holders, Silencers & Bumpers
- Commercial/Residential:
- Commercial
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Steel
- Department:
- Door Hardware
Trimco 1209HA630 – Frequently Asked Questions
1) Will the Trimco 1209HA floor stop work on a wood floor or does it need concrete?
Concrete. The HA configuration is a 1 inch diameter stainless steel shaft embedded up to 7 inches into the slab, so it needs a solid concrete floor to drill and set into. There is no baseplate to screw down over wood or tile-on-plywood. If the floor is not concrete, this is the wrong stop for the opening.
2) How high off the floor does the Trimco 1209HA bumper sit, and will it catch the door?
The HA carries a 3 inch by 2-1/4 inch rubber bumper on the post, so the strike face sits high enough to contact the door leaf rather than skimming under it. The standard 1209 uses a smaller 1-3/8 inch by 2 inch bumper. The taller HA bumper is what you want where the door bottom clears the floor by a wide margin or where the door has a heavy bottom rail.
3) What makes the Trimco 1209HA a detention or school grade stop instead of a standard floor stop?
Two things. The fittings are vandal-proof, meaning the stop cannot be taken apart without special tools and no piece can be pulled off and turned into a weapon, which is why it gets specified in prisons and detention facilities. And the body is extra high tensile strength steel with an industrial rubber bumper, so it survives abuse that flattens a light-duty dome stop. Schools, government and military buildings, animal shelters and zoos are the usual applications.
4) Is the Trimco 1209HA floor stop ADA compliant?
Yes, the 1209 Series floor stop is ADA compliant. Worth knowing that a floor-mounted stop still puts an object in the walking path, so on egress and accessible routes most spec writers keep it tight to the door swing rather than out in the middle of the opening.
5) Should I use a floor stop like the 1209HA or a wall stop for a heavy abuse opening?
A wall stop only works when the door swings into a wall within reach of the leaf. Where the door opens into open floor, or into a wall you cannot reliably back up with blocking, the floor stop is the one that takes the load. The 1209HA goes a step further than a surface floor stop by setting a 1 inch stainless post up to 7 inches down into the slab, so there is nothing surface-mounted to kick loose. That anchoring depth is the reason it lands in high-abuse buildings rather than a screwed-down dome stop.
6) What is the difference between the Trimco 1209, 1209W, 1209HA and 1209HO?
They are configurations within the same 1209 Series extra heavy-duty floor stop family. The HA is the concrete-embed version: 1 inch diameter stainless steel shaft set up to 7 inches into the slab with a 3 inch by 2-1/4 inch rubber bumper. The base 1209 carries the smaller 1-3/8 inch by 2 inch industrial rubber bumper. All of them share the extra high tensile strength steel construction and vandal-proof fittings.
7) Does the Trimco 1209HA come with a hold-open?
No. The 1209HA is a stop only, a bumper on a post that arrests the door swing. If you need the door to stay parked open, you want a hold-open configuration or a separate overhead holder. Ordering the HA when the spec calls for hold-open is the common mistake on this series.
8) What finish is the Trimco 1209HA630 floor stop?
The 1209HA630 is the satin stainless steel finish version of the extra heavy-duty floor stop, matching the stainless post. 630 is the standard commercial satin stainless designation, so it lines up with the 630 hinges, push plates and exit trim already on most institutional openings.
9) Is the Trimco 1209HA rated for commercial use?
Commercial, yes. The 1209 Series is a commercial grade product and the HA is the heaviest configuration in it, built for schools, prisons, government and military facilities, and industrial buildings. It is not a residential stop and there is nothing about it scaled for a light interior door.
