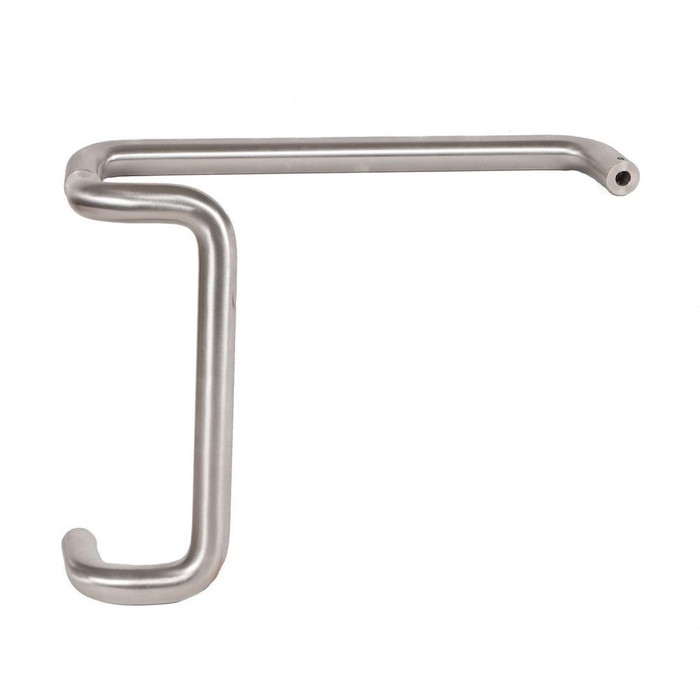

Trimco 1737 1" Diameter 90 Degree Offset Push/Pull Bar Set 10" CTC Offset Pull

Trimco 1737 1" Diameter 90 Degree Offset Push/Pull Bar Set 10" CTC Offset Pull

(No reviews yet) Write a Review

Model: 1737-E33-605
$698.25
$522.76
Selected Mounting is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$698.25
$522.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO 1737 1" DIAMETER 90º OFFSET PUSH/PULL BAR SET 10" CTC OFFSET PULL OVERVIEW

  • Trimco’s 1700 Series Push/Pull Bars & Sets are manufactured in the United States from solid stainless steel, bronze or brass. These heavy duty bars are available with a multitude of mounting options for most applications including steel, wood and glass doors. Available in most architectural finishes, the Trimco 1700 Series Bars are also offered with a fOCAL designer series option.
  • Buy the TRIMCO 1737 Series today to add a stylish hardware for your home!

TRIMCO 1737 1" DIAMETER 90º OFFSET PUSH/PULL PULL PRODUCT FEATURES

  • Manufactured in the United States from solid stainless steel, bronze and brass.
  • Options include 3/4″, 1″ and 1-1/4″ diameter material and 10″, 12″ or 18″ pulls.
  • fOCAL designer option available.
  • Multiple mounting options for metal, wood and glass doors.
  • Must specify CTC on bars. Custom sizes and finishes also available.
Functions/Options
  • 1740 ¾” Dia. Push Bar
  • 1741 1″ Dia. Push Bar
  • 1745 1-1/4″ Dia. Push Bar
  • 1729 ¾” Dia. Push Bar, 10″ CTC Straight Pull
  • 1731 1″ Dia. Push Bar, 10″ CTC Straight Pull
  • 1732 1″ Dia. Push Bar, 12″ CTC Straight Pull
  • 1737 1″ Dia. Push Bar, 10″ CTC Offset Pull
  • 1738 1″ Dia. Push Bar, 12″ CTC Offset Pull
  • 1746 1-1/4″ Dia. Push Bar, 18″ CTC Straight Pull
  • 1746-1 1-1/4″ Dia. Push Bar, 12″ CTC Straight Pull
  • 1747 1-1/4″ Dia. Push Bar, 18″ CTC Offset Pull
  • 1747-1 1-1/4″ Dia. Push Bar, 12″ CTC Offset Pull.

 APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Multifamily & Mixed-Use
  • Public Buildings & Facilities
  • Retail & Strip Malls.

TRIMCO 1737 SERIES COLOR VARIATIONS

  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Bright Brass (605)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Satin Brass (606
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Oil Rubbed Bronze (613)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Dark Oxidized Satin Bronze (613E)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Matte Black (622)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Bright Chrome (625)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Satin Chrome (626)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Satin Aluminum (628)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Bright Stainless Steel (629)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Satin Stainless Steel (630)
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull Healthy Hardware Steralloy Silver (710CU)

TRIMCO 1700 SERIES COLLECTION

  • Trimco 1729 3/4" Diameter Push/Pull Bar Set 10" CTC Straight Pull
  • Trimco 1731 1" Diameter Push/Pull Bar Set 10" CTC Straight Pull
  • Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull\
  • Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull
  • Trimco 1738 1" Diameter 90º Offset Push/Pull Bar Set 12" CTC Offset Pull
  • Trimco 1740 3/4" Diameter Push Bar E Mounting Standard
  • Trimco 1741 1" Diameter Push Bar E Mounting Standard
  • Trimco 1745 1-1/4" Diameter Push Bar E Mounting Standard
  • Trimco 1746 1-1/4" Diameter Push/Pull Bar Set 18" CTC Straight Pull
  • Trimco 1746-1 1-1/4" Diameter Push/Pull Bar Set 12" CTC Straight Pull
  • Trimco 1747 1-1/4" Diameter 90º Offset Push/Pull Bar Set 18" CTC Offset Pull
  • Trimco 1747-1 1-1/4" Diameter 90º Offset Push/Pull Bar Set

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Push Bars
Subcategory:
Door Pulls, Push and Pull Plates
Healthy Hardware:
Yes
Product Model:
1737
(CTC) Center-to-Center:
10"
Product Dimension:
1" Diameter
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Trimco 1737-E33-605 – Frequently Asked Questions

1) What is the difference between E-Mount and G-Mount on Trimco 1700 Series bars?
Mounting is the ordering choice that ties the bar to your door type. The 1700 Series is offered with mounting options for metal, wood and glass doors, and the 1737 is ordered as either E-Mount or G-Mount. Pick G-Mount for a glass door application and E-Mount for the standard metal or wood door mounting used across the series push bars.
2) What finishes does the Trimco 1737 push/pull bar set come in?
Eleven finishes: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 625 bright chrome, 626 satin chrome, 628 satin aluminum, 629 bright stainless, 630 satin stainless, and 710CU Healthy Hardware Steralloy Silver. For a building already standardized on 630 satin stainless, that is the one that will match your other door trim.
3) Should I use an offset pull like the 1737 or a straight pull?
An offset pull stands the grip off the door face at 90 degrees, which gives a fuller hand grip and clears the door edge better on a heavy entry. If you want the grip parallel to the door instead, the straight pull version in the same 1 inch diameter and 10 inch CTC is the Trimco 1731. Same set concept, same bar diameter, just a straight rather than offset pull.
4) I need a wider pull spread than 10 inches on my Trimco push/pull set. What do I order?
Step up models rather than trying to modify the 1737. For a 12 inch CTC offset pull in the same 1 inch diameter, order the Trimco 1738. If you want a heavier 1-1/4 inch bar, the 1747 gives an 18 inch CTC offset pull and the 1747-1 a 12 inch CTC offset pull. The 1737 is fixed at 10 inch CTC.
5) Is the Trimco 1737 an antimicrobial option for a hospital or school?
Yes, in one finish. The 710CU Healthy Hardware Steralloy Silver is Trimco's Healthy Hardware copper alloy option, and the 1737 is flagged as a Healthy Hardware product. If touch surface material matters for your facility, that is the finish code to specify; the other ten finishes are standard architectural finishes.
6) Can I get just a push bar without the pull for the other doors in the building?
Yes. If a door only needs a push side bar, order the standalone push bars in the same 1700 Series so the look matches: 1740 in 3/4 inch diameter, 1741 in 1 inch diameter, or 1745 in 1-1/4 inch. The 1741 is the one that matches the 1 inch bar diameter of the 1737 set.
7) Is the Trimco 1737 heavy enough for a high traffic commercial entrance?
It is built for it. The 1700 Series bars are made in the United States from solid stainless steel, bronze or brass, and Trimco describes them as heavy duty. The 1737 is catalogued for commercial use and is applied on commercial and industrial buildings, government and military facilities, multifamily and mixed-use, public buildings and retail storefronts.
8) Can I get the Trimco 1737 in a diameter or size that isn't standard?
Trimco offers custom sizes and finishes on the 1700 Series, and the series runs 3/4 inch, 1 inch and 1-1/4 inch diameter material with 10, 12 or 18 inch pulls. There is also a fOCAL designer series option if you want a non standard look on the same bars.
