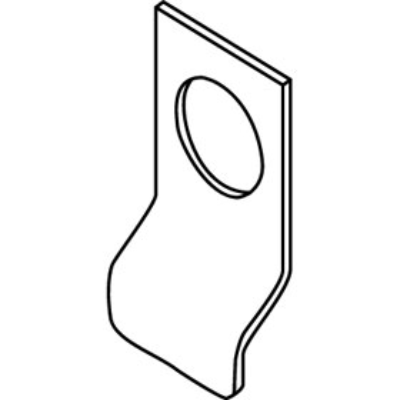

TRIMCO 1822 PULL 2" X 3-3/4", 1-1/4" DIAMETER CUTOUT - ADHESIVE MOUNT OVERVIEW
1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount. Pull 2" x 3-3/4" 1-1/4" dia. Cutout - Adhesive Mount.
Trimco’s 1820 Series Heavy Duty Combo Push/Pull are manufactured in the United States using 1/8″ stainless steel, brass or bronze for extra strength and durability and integrate a pull into a heavy duty push plate. Great for use on back of house doors where vandalism could be a problem, the 1820 Series is both durable and flexible for your specific needs.
Buy the TRIMCO 1820 Series today to add a stylish hardware for your home!
TRIMCO 1822 PULL 2" X 3-3/4", 1-1/4" DIAMETER PRODUCT FEATURES
- Manufactured in the United States of extra heavy duty 1/8″ stainless steel, brass or bronze.
- Integrated pull into a heavy duty push plate.
- Can be engraved with “PUSH”, “PULL” or any custom requirements.
- Optional cylinder or special cutouts available.
TRIMCO 1822 SERIES COLOR VARIATIONS
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Bright Brass (605)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Satin Brass (606)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Oil Rubbed Bronze (613)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Dark Oxidized Satin Bronze (613E)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Matte Black (622)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Satin Chrome (626)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Bright Stainless Steel (629)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Satin Stainless Steel (630)
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount Healthy Hardware Steralloy Silver (710CU)
APPLICATIONS
- Commercial & Industrial Buildings
- Government & Military Facilities
- Multifamily & Mixed-Use
- Public Buildings & Facilities
- Retail & Strip Malls
TRIMCO 1820 SERIES COLLECTION
Trimco 1820 Push/Pull Plate 3-1/2" x 16-1/2"
Trimco 1822 Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount
Trimco 1822-1 Pull 2" x 3-3/4" No Cutout - Surface Mount
Trimco 1822-2 Pull 3" x 4-3/4", 2-1/8" Diameter Cutout - Adhesive Mount
Trimco 1822-2-P Pull 3" x 4-3/4" w/ Anti-Rotation Pin
Trimco 1822-3-P Pull 2" x 3-3/4", 1-1/4" Diameter Cutout - Adhesive Mount
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Commercial/Residential:
- Commercial
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Pulls, Push and Pull Plates
- Product Type:
- Door Pulls
- Subcategory:
- Door Pulls, Push and Pull Plates
- Healthy Hardware:
- Yes
- Product Diameter:
- 1-1/4"
- Product Dimension:
- 1-1/4" Diameter
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Trimco TRI-1822.630 – Frequently Asked Questions
1) How does the Trimco 1822 adhesive mount pull attach to the door?
The 1822 pull mounts with adhesive, so there are no through-bolts and no holes drilled in the door face. That makes it a clean option on glass, laminate, or finished surfaces you don't want to bore. If you need a mechanically fastened pull, the Ives 8103HD is a through-bolt mounted round pull instead.
2) What size is the Trimco 1822 pull and how big is the finger cutout?
The plate measures 2 x 3-3/4 inches with a 1-1/4 inch diameter cutout. That is a compact single-hand pull, not a full-height plate. If you want a bigger grip opening, the 1822-2 runs 3 x 4-3/4 inches with a 2-1/8 inch cutout, and the 1820 push/pull plate is 3-1/2 x 16-1/2 inches.
3) What is a comparable heavy duty commercial door pull to the Trimco 1822 if I need a through-bolted grip instead of an adhesive mounted plate pull?
The Trimco 1822 is a 2 inch by 3-3/4 inch pull with a 1-1/4 inch diameter cutout that mounts with adhesive, so it grips through an opening in the plate rather than standing off the door on posts. Where the door needs a projecting bar grip fastened through the door, the Ives 8103HD is a heavy duty straight door pull, 1 inch round, with through bolt mounting, and the ABH AB7200 is a solid stainless steel flat end pull handle of 7/8 inch diameter, also through-bolt mounted. Both give a hand-around-the-bar grip; the 1822 gives a flush face with a finger cutout.
4) I need an ADA compliant offset pull for an entrance door - is the Trimco 1822 the right part?
The Trimco 1822 is a small 2 inch by 3-3/4 inch adhesive mount pull with a 1-1/4 inch finger cutout, designed to integrate a pull into a heavy duty push plate on back of house doors. For an opening where the specification calls for an ADA compliant offset grip, the Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware in the ADA compliant EZ Series, and the Ives 8169 is a C style offset solid pull of 1 inch diameter with heavy duty mounting.
5) For a healthcare facility standardizing on antimicrobial door hardware, how does the Trimco 1822 compare to other commercial pulls?
The Trimco 1822 is offered in Healthy Hardware Steralloy Silver (710CU) alongside its brass, bronze, chrome and stainless finishes, and is flagged as Healthy Hardware. Among the commercial-grade peers, the ABH AB7200 is solid stainless steel and the Cal-Royal PUL-175 is stainless steel construction; both are specified by material rather than by an antimicrobial finish option. If the standard is written around a copper-alloy touch surface, the 710CU finish of the 1822 is the one that carries it.
6) Is the Trimco 1822 pull heavy enough for a back of house or service door?
It's built for exactly that. The 1820 Series is made in the US from 1/8 inch stainless steel, brass, or bronze, and Trimco calls out back of house doors where vandalism is a concern. It's specified as commercial hardware, not residential trim.
7) What finishes does the Trimco 1822 pull come in?
Nine finishes: Bright Brass (605), Satin Brass (606), Oil Rubbed Bronze (613), Dark Oxidized Satin Bronze (613E), Matte Black (622), Satin Chrome (626), Bright Stainless Steel (629), Satin Stainless Steel (630), and Healthy Hardware Steralloy Silver (710CU). If you're matching existing openings in a building, 626 and 630 are the two that line up with most commercial lever and closer finishes.
8) Is there an antimicrobial version of the Trimco 1822 pull for a healthcare or school door?
Yes, the 710CU Healthy Hardware Steralloy Silver finish. The 1822 is flagged as a Healthy Hardware product, which is the copper-alloy touch surface line, so it's the finish to order for patient rooms, clinics, or high-traffic school corridors where touch surfaces matter. The other eight finishes are standard architectural.
9) Can I get PUSH or PULL engraved on the Trimco 1822?
Engraving is available with PUSH, PULL, or custom text, and optional cylinder or special cutouts can be specified. Those are order-time options, so call them out on the order rather than expecting them on a stock plate.
10) Do I need a different Trimco 1822 if the pull keeps twisting on the door?
For an adhesive-mounted plate that sees hard use, Trimco makes the 1822-2-P with an anti-rotation pin, a 3 x 4-3/4 inch version. There's also the 1822-3-P at the same 2 x 3-3/4 inch size with a 1-1/4 inch cutout. The plain 1822 has no pin.
11) Should I use a flush cutout pull like the Trimco 1822 or a projecting bar pull?
A cutout pull sits flat against the door with the grip recessed into the plate, so nothing projects into a corridor or catches on carts, and it's the right call in tight egress paths and back of house traffic. A projecting bar pull gives you a full hand grip and more leverage on heavy or closer-equipped doors, which is what the ABH AB3300 straight flat end pull at 1 inch diameter or the Ives 8102HD with 1-1/2 inch clearance are for. Pick the bar pull if people are hauling the door open all day; pick the 1822 where clearance and vandal resistance win.
12) What's the difference between the Trimco 1822 and the 1822-1?
Same 2 x 3-3/4 inch footprint, different mounting and face. The 1822 is adhesive mount with a 1-1/4 inch diameter cutout you get your fingers into. The 1822-1 is surface mount with no cutout. Order the 1822 if you want the recessed grip.
13) Is the Cal-Royal PUL-175 night latch pull a substitute for the Trimco 1822 since both have a round cutout?
They are not interchangeable. The Trimco 1822 has a 1-1/4 inch diameter cutout that serves as the finger grip, in 1/8 inch stainless steel, brass or bronze, adhesive mounted. The Cal-Royal PUL-175 is a night latch cylinder pull of 3-1/2 inch height in stainless steel construction, where the opening carries a cylinder rather than the hand. Choose the PUL-175 when a rim cylinder passes through the pull; choose the 1822 when the cutout is the grip. Trimco does note that optional cylinder or special cutouts are available on the 1820 Series.
14) What is the closest alternative to the Trimco 1822 for a surface mounted straight pull on a back of house door?
The Trimco 1822 is adhesive mounted and sits flush to the door face. If the opening takes a surface mounted bar instead, the ABH AB3300 is a straight flat end pull handle of 1.00 inch diameter for commercial doors, the ABH AB3310 is an offset flat end pull in commercial grade surface mount, and the ABH AB3330 Series is an offset round end pull with custom length options where the grip length has to be set to the opening.
15) I need clearance behind the pull for a gloved hand on a kitchen or service door - does the Trimco 1822 work or should I specify something else?
The Trimco 1822 grip is the 1-1/4 inch diameter cutout through the plate, so the hand passes through the plate rather than behind a bar. Where a stated standoff clearance is required, the Ives 8102HD is a heavy duty straight door pull with a 3/4 inch round bar and 1-1/2 inch clearance. The 1822 remains the choice on vandal-prone back of house doors, where Trimco builds it from 1/8 inch stainless steel, brass or bronze with the pull integrated into a heavy duty push plate.
