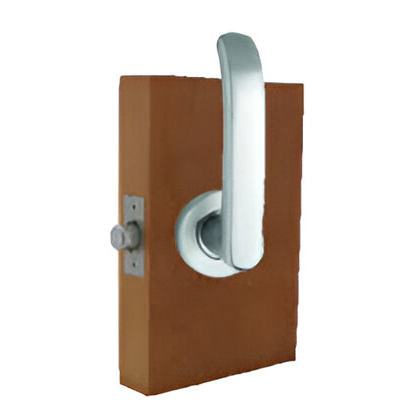

Trimco 90SC051- Mortise Locks (Merryvale)
Made from the finest materials, Trimco presents the Urban series. These products are inspired by the world's great artists and composers, by the recollection of a fragrant aroma of a vintage wine, or the energy of a downtown metropolis. This unique collections allows for individual creativity and expression. Urban levers meet ADA.
Features
- Modern designs perfect for high-rise condos and multifamily buildings.
- Manufactured from stainless steel.
- Multiple styles for individual creativity and expression.
- ADA compliant.
- Applications
- Commercial & Industrial Buildings
- Government & Military Facilities
- Hospitality
- Multifamily & Mixed-Use
- Office Buildings
Manufacturer Resources
Product Specs
- ADA Compliant:
- Yes
- Product Group:
- Mortise Locks
- Product Subgroup:
- Mortise Locks
- Product Type:
- Mortise Locks
- Subcategory:
- Mortise Locks
- Commercial/Residential:
- Commercial
- Lever projection:
- 2-1/3"
- Product Model:
- TRI-90SC051
- Product Category:
- Door Trim and Accessories
- Backset (Distance):
- 2-3/8"
- Department:
- Door Hardware
Trimco TRI-90SC051-Q10 – Frequently Asked Questions
1) What lock functions can I order the Trimco 90SC051 Merryvale mortise lock in?
Two functions: Entry Q10 and Store Door Q14. Entry Q10 is the usual choice for apartment and office doors where the outside lever locks and unlocks. Store Door Q14 is the function to pick where both levers stay active and the latch is retracted by either lever, typical of retail and tenant entrances. You specify the function on the order, so pick it before the door prep is set.
2) Is the Trimco Merryvale mortise lever ADA compliant for a barrier-free opening?
Yes, the Merryvale lever is ADA compliant. The Urban series levers are built to meet ADA, so the lever operates without tight grasping, pinching, or wrist twisting. That makes it usable on accessible routes in commercial, government, and multifamily buildings.
3) Is the Merryvale a mortise lock or a cylindrical lockset?
It is a mortise lock, meaning the lock body sits in a rectangular pocket cut into the edge of the door rather than in a round cross-bore. If your doors are prepped with a 2-1/8 inch cross-bore for a cylindrical lockset, this will not retrofit into that prep without a new mortise pocket and edge prep.
4) Will the Trimco Merryvale lever clear a door pull or a narrow reveal?
The lever projects 2-1/3 inches off the face of the door. Use that number when you are checking clearance to an adjacent wall return, a door pull on the same face, or a stop location. It is also the figure to check against side-by-side doors in tight vestibules.
5) Is the Trimco 90SC051 a residential lock or rated for commercial traffic?
Commercial. The Merryvale is part of Trimco's Urban series, aimed at high-rise condo, multifamily, hospitality, office, government and industrial openings rather than single-family residential use. If you are standardizing a building on one lever, this is a commercial-duty mortise lock body, not a residential tubular set.
6) I am specifying levers across a whole condo building. Can I keep one style across entry and tenant doors?
Yes. The Merryvale lever is offered in both Entry Q10 and Store Door Q14 functions on the same 2-3/8 inch backset lock, so a building can carry one lever design and one door prep across different opening functions. The Urban series is built around that kind of consistent look on high-rise condo and multifamily work.
7) What material is the Trimco Merryvale lever made from?
Stainless steel. That matters on high-traffic corridor and entry doors and in coastal or humid buildings where a plated pot-metal lever tends to wear at the grip and pit at the rose.
